Master Sync Generators
ACO-2200
Automatic Changeover System for SRG-2200

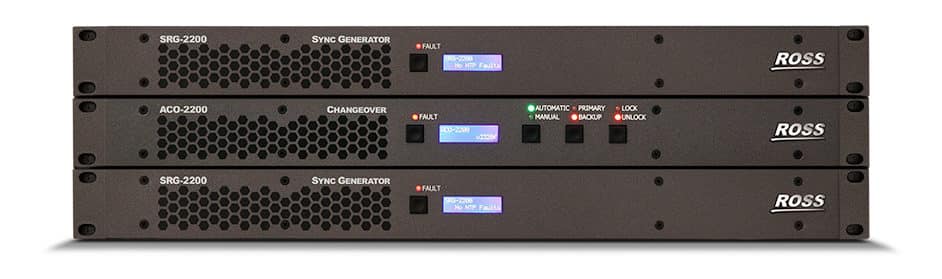

Overview The ACO-2200 is a 1RU automatic changeover system which, when combined with both the Primary and Backup SRG-2200 units, provides a fully redundant and fault tolerant master reference system. The ACO-2200 accepts outputs from a pair of SRG-2200 Reference Generators, and the ACO-2200 handles automatic failover / changeover function based on any single signal failure, creating a fully fault tolerant system. To allow for mixed format requirements and offer maximum flexibility, each channel can be set to measure analog color black, 3G/ HD/ SD SDI video or AES/EBU audio (75 Ohm). Each channel has a Primary input, a Backup input, a Common output and a relay that switches one of the inputs to the Common output. All BNC channels measure both the “primary and “backup” signals.
|
|
Automatic Changeover System for SRG-2200
ACO-2200 Automatic Changeover System
