Single Optical to Electrical Converter with Optical Regeneration
Single channel SDI optical to electrical converter supporting data rates from 143Mb/s to 2.97Gb/s.

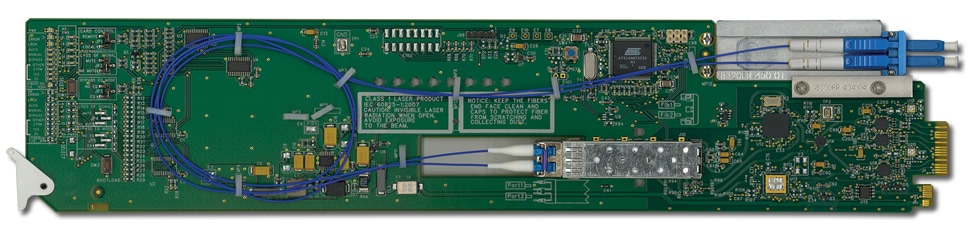

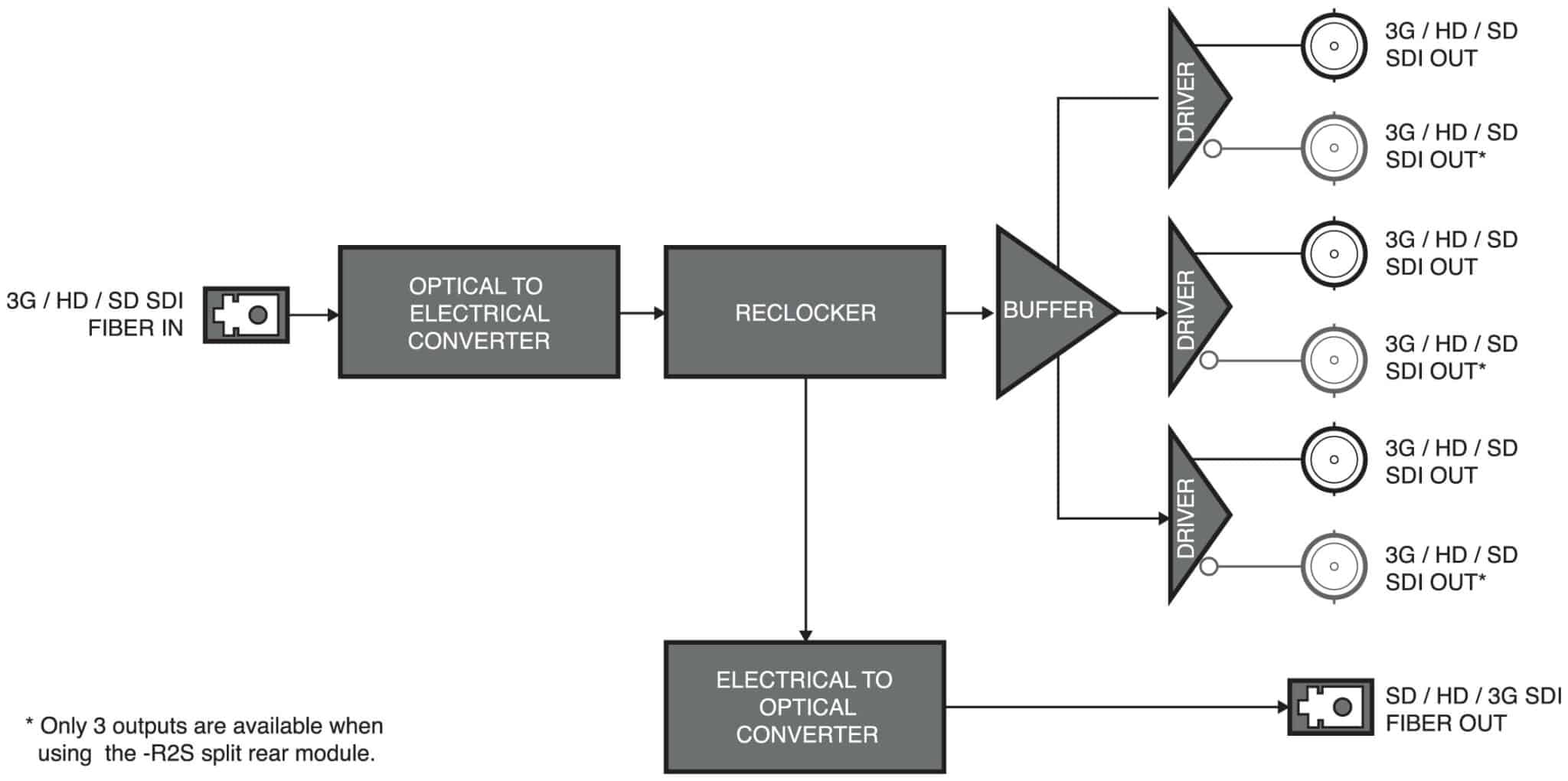

The FSR-6605 is a fiber optic receiver to serial digital SDI converter supporting serial digital data rates from 143Mb/s up to 2.97Gb/s (1080p). SDI outputs are reclocked providing excellent jitter and return loss specifications.
The FSR-6605 provides a regenerated and reclocked optical output, re-launching the optical signal at -7dBm.
The FSR-6605 is fully hot-swappable with all active components on the front removable card. No active components are installed on the rear I/O connection module. This design greatly reduces down-time eliminating any need to access the back of the rack frame.

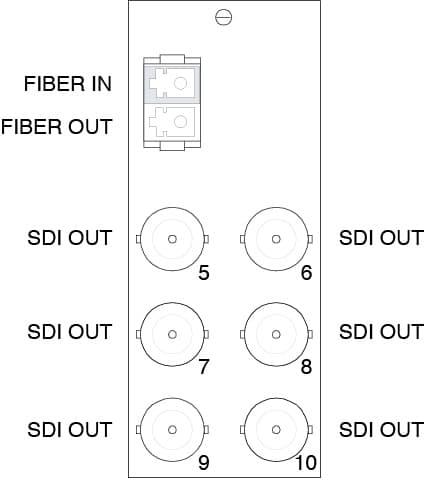

The -R2S high density split rear module can accommodate up to 2 FSR-6605 cards, maximizing the number of conversion channels in a frame. In this configuration, the OG3-FR supports up to 20 independent channel solutions.
|Single Optical to Electrical Converter with Optical Regeneration
FSR-6605 Optical Regenerator and DA
Rear Module Suffix (ex: [model]-R2)
