FST-6602 Single Electrical to Optical Converter
FST-6602
Single Electrical to Optical Converter
Single channel electrical to optical converter supporting data rates from 143Mb/s to 3Gb/s (1080p).

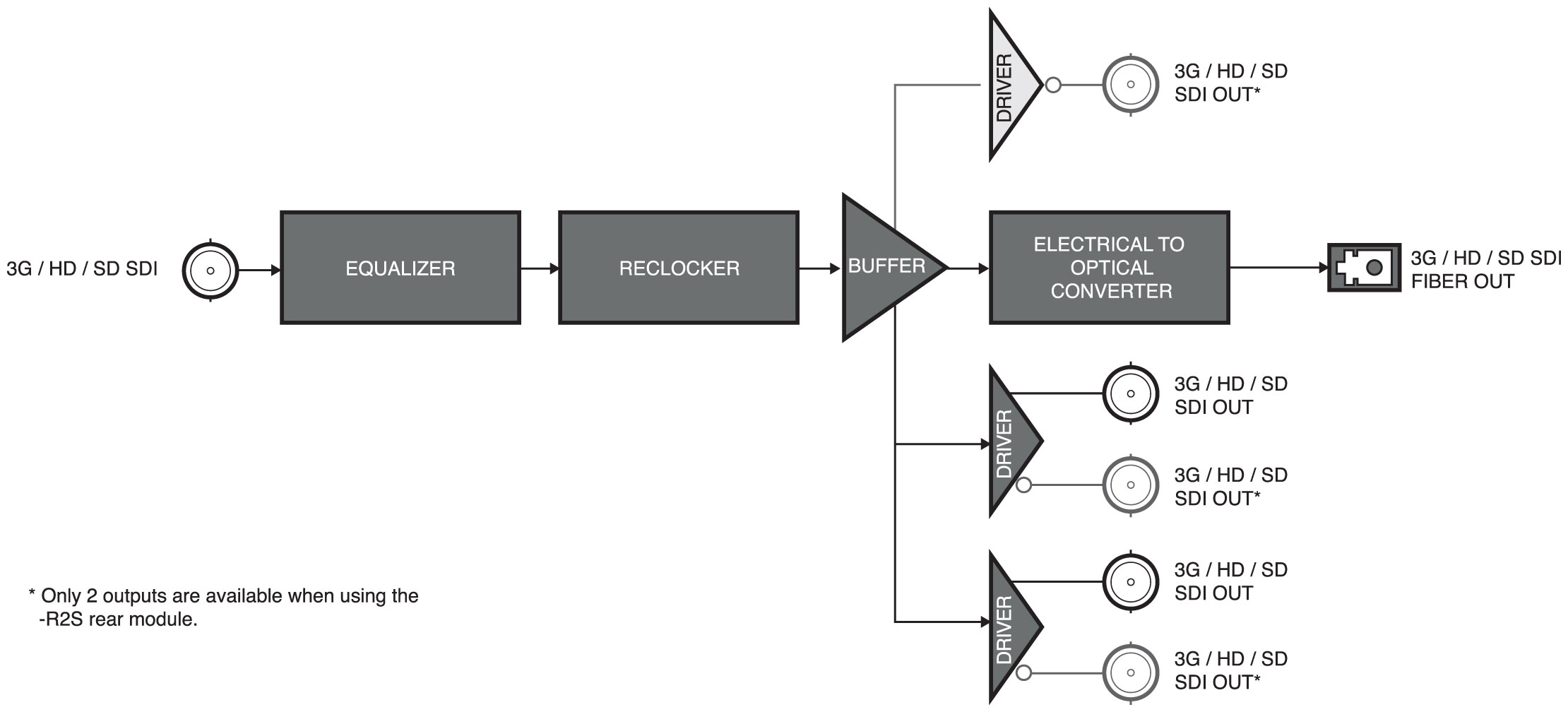

The FST-6602 is a serial digital SDI to fiber optic transmitter converter that supports serial digital data rates from 143Mb/s up to 2.97Gb/s (1080p). SDI outputs are reclocked copies of the input providing excellent jitter and return loss specifications.
The FST-6602 is fully hot-swappable with all active components on the front removable module. No active components are installed on the rear I/O connection module. This design greatly reduces down-time eliminating any need to access the back of the rack frame.

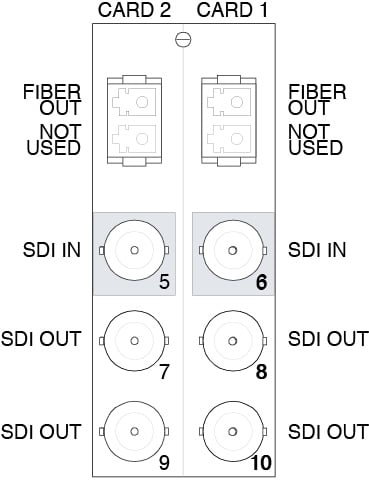

The -R2S high density split rear module can accommodate up to 2x FST-6602 cards, maximizing the number of conversion channels in a frame. In this configuration, the OG3-FR supports up to 20 independent channel solutions.
|
|
Single Electrical to Optical Converter FST-6602 Single Optical Transmitter, 1310nm FST-6602-XX Single Optical Transmitter, CWDM Rear Module Suffix (ex: [model]-R2)
|
||
-R2 | -R2S |
Downloads
Manuals
Cut Sheets
