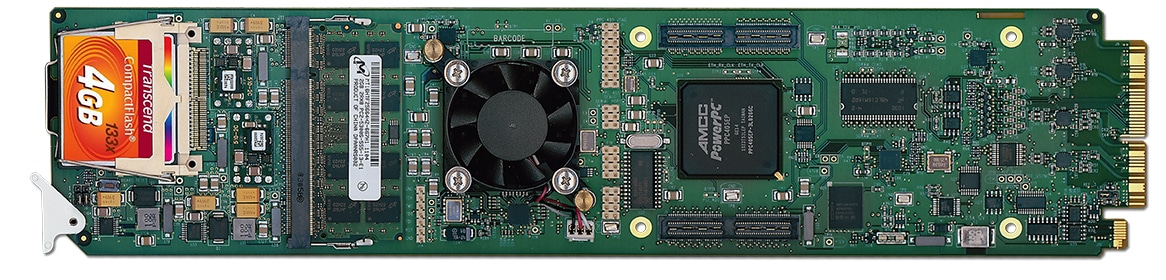

MC1-MK-4GB
MC1-MK-4GB
SD / HD / 3G-SDI Master Control and Branding Mixer / Keyer
Compact Modular Master Control Mixer/Keyer with animated logos, squeezeback, audio mixing and remote control.
Built to meet the demands of 24/7 operation, the MC1-MK-4GB is the most affordable, dedicated master control solution. It features audio & video program mix plus 4 keyers and animated logo playout. The included DVE allows smooth squeezebacks with flexible layering. Intuitive DashBoard operation allows for an easy transition and brings operators up to speed quickly.
Integrate the MC1 with your chosen automation system, router and graphics system with a variety of control and media transfer protocols.
MC1-MK-4GB installs in the robust openGear® chassis. Simple scaling solutions allow for additional openGear® cards; add an additional channel by adding a 2nd MC1-MK-4GB or add a variety of additional functions such as Loudness Processing, Dolby™ Encoding, and Nielsen Watermarking.
Legendary, lifetime Ross support and 5-year warranty make MC1 an excellent value.
Video Features
- SD (480i / 576i), HD (720p / 1080i) and 3G-SDI video formats (1080p)
- Background A/B Mix
- 4 Keyers
- 1 External Key/Fill Input
- 4 Animated Logo Generators
- DVE Squeezeback
- Fade to Black
Audio Features
- Audio Shuffle
- Audio Gain / Invert
- Audio Downmix
- Audio Over
Integration
- Rosslinq interface to XPression LiveCG
- EAS Text Crawl
- NK, Ultrix and 3rd-party Router Support
- Automation Support via Presmaster protocol
- RossTalk
- GPI
- DashBoard Control
- Optional Control Panel
Reliability
- Integrated Bypass Relay
- Up to 5 channels in an openGear frame
- 5-year warranty
Standard System Includes:
- 1x NK-IPS NK Network IP Configuration Device
- 1x MC1-MK A/V Mixer Keyer
- 1x OGX-FR openGear® Frame with Network Control
- DashBoard Control Software
| SYSTEM | DETAILS |
|---|---|
| MC1-164 | 3G / HD / SD 16 Input Master Control |
| MC1-16 | 3G / HD / SD 16 Input Master Control with 12 Aux Buses |
| MC1-32 | 3G / HD / SD 32 Input Master Control (Configurable to 72) |
| MC1-64 | 3G / HD / SD 64 Input Master Control (Configurable to 72) |
| MC1-128 | 3G / HD / SD 128 Input Master Control (Configurable to 144) |
Options
| System Options | Details |
|---|---|
| MC1-MK-4GB-R2 | Additional Multi-Channel or Backup MC1-MK A/V Mixer Keyer with Rear Module |
| OGX-FR-CN | openGear® 20 Slot Frame with Network Control |
| PS-OGX | Redundant Power Supply for OGX-FR Frame |
| MC1-EAS-C | 4 Channel Analog audio Emergency Alert Interface |
| MC1-EAS-A | 8 Channel Digital AES audio Emergency Alert Interface |
| MC1-PortEx | Comtrol Network Port Expander Interface (Required for EAS support) |
| MC1 Control Options | Details |
|---|---|
| DB-TURNKEY-CLIENT | DashBoard Client 23” Touchscreen All-in-One PC with Window OS |
| MC1-PANEL-16 | MC1 Control Panel w/ 16 Source Buttons |
| Router Control Options | Details |
|---|---|
| RCP-NK1 | 40 LED Illuminated Button Local / Remote Control Panel |
Packages
| Commissioning* | Details |
|---|---|
| MC1-COM-1ST | Onsite Commissioning, 1st Day |
| MC1-COM-ADD | Onsite Commissioning, Additional Day |
| MC1-COM-REM | Remote Commissioning |
* Commissioning packages are based on size and scale of the installation and the components involved.
