Timing & Synchronization


Sync Pulse Generator

Outputs Tri-level and Color Black on 4 independent pairs of outputs with a dedicated AES output.

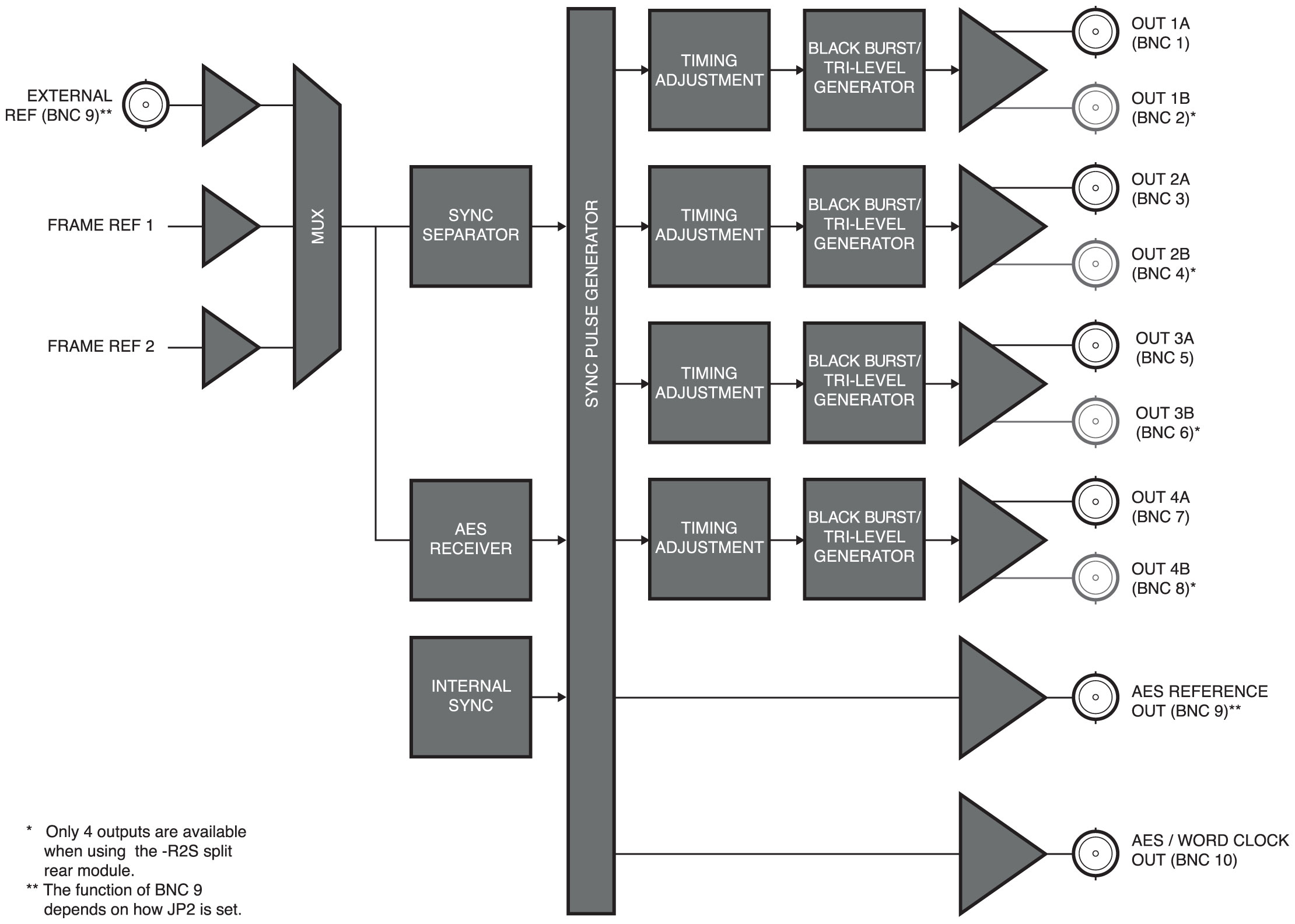

8260 Block Diagram

The SPG-8260 sync pulse generator provides 4 pairs of outputs with each pair independently programmed to be either tri-level sync or a composite signal. Each pair of outputs can be independently delayed relative to the incoming reference. The delay is in increments of the output’s interface sampling frequency (74.25MHz, 74.25/1.001MHz or 27MHz) up to 1 frame of video.

Tri-level sync output format is selectable from the following formats: 1080i 60, 1080i 50, 1080i 59.94, 1080p 23.98/24/25, 1080sF 23.98/24/25, 720p 50, and 720p 59.94.

The SPG-8260 can lock to one of the two frame references, the card local reference input, or free-run using the SPG-8260 internal oscillator. If the selected reference is lost, the SPG-8260 switches to its internal oscillator without disturbing the outputs; when the selected reference returns, the SPG-8260 locks back to the input reference.

The SPG-8260 will generate AES reference output as well as AES tone for AES outputs.

  • Generates 4 pairs of outputs at a different frame rate than reference
  • Each pair of outputs can be independently delayed relative to the incoming reference
  • HD interfaces conform to SMPTE 274M and SMPTE 296M standards
  • SD interfaces conform to SMPTE 170M (NTSC) or PAL standards
  • Composite outputs: black or color bars


  • Generates a 48 kHz AES reference signal output
  • AES tone available for AES outputs
  • Fully compliant with openGear® specifications
  • 5-year transferable warranty
  • Power: 6 watts



Sync Pulse Generator
Sync Pulse Generator

Rear Module Suffix (ex: [model]-R2)
-R2 Rear Module for SPG-8260
-R2S Split Rear Module for 2x SPG-8260

-R2 -RS2
