MB-652-DUO

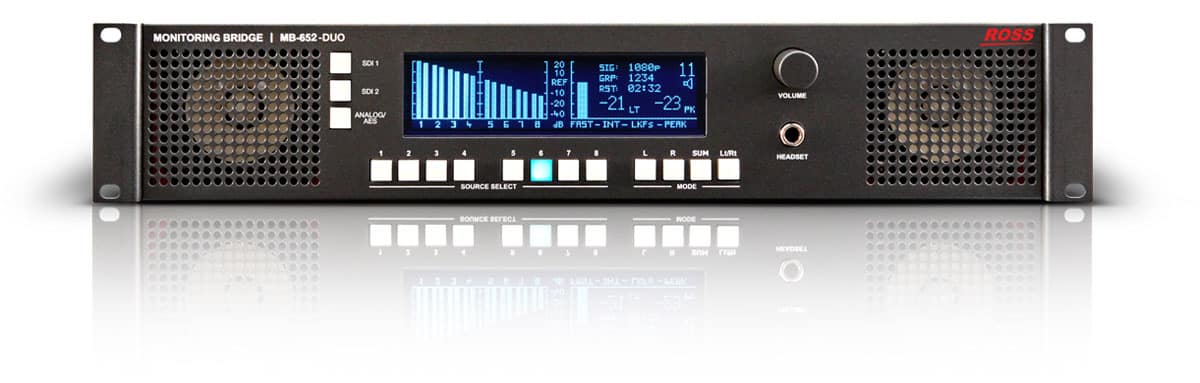

The MB-652-DUO monitoring bridge is a compact, 2RU audio monitoring bridge for embedded audio, along with AES and Analog audio. Designed to meet the demands of broadcast audio monitoring requirements, the MB-652 is capable of de-embed- ding up to 16 channels of audio from an incoming SDI signal. The audio monitoring bridge provides both visual and aural monitor- ing with built-in front panel display and speakers.

16 digital VU/PPM meters monitor all 16 channels of embedded audio, while an intuitive control surface provides easy channel source and mode selection for the built-in speakers. A meter and numerical display provides loudness measurements according to ITU1770/1771 LKFS. Additional information such as true peak, input signal data, and input type are also displayed on screen.

High quality, full-range speakers, along with a high performance class D stereo ampli er, o ers excellent sound quality suitable for any monitoring environment. The front panel also includes a volume control and a 1/4 inch headphone jack. The rear of the MB-652-DUO provides two SDI inputs with re-clocked SDI out- puts, AES and Analog audio inputs, and 2 channels of analog audio outputs.
