Tally Control Systems

TSI-4000

Next-Generation Tally Control System

The TSI-4000 collects information from signal routing and processing equipment to operate displays and tallies as directed by its internal configuration information.

At the heart of the Ross Video Tally System is the TSI-4000 Tally System Interface. The TSI-4000 collects information from signal routing and processing equipment to operate displays and tallies as directed by its internal configuration information. Users can configure the TSI-4000 from a Windows PC running the Tally System Console 3 program. Once configured, the TSI-4000 continues to operate the tally system with or without the PC connected.

  • Compact 1RU controller
  • Rear-mounted auto-changeover
  • Interfaces to all routers, switchers and multiviewers
  • Redundancy in only 2RU
  • Ideal for multiple control room applications
  • Supports up to 16 unique control areas
  • Supports Image Video Virtual GPI Protocol
  • 1-year transferable warranty

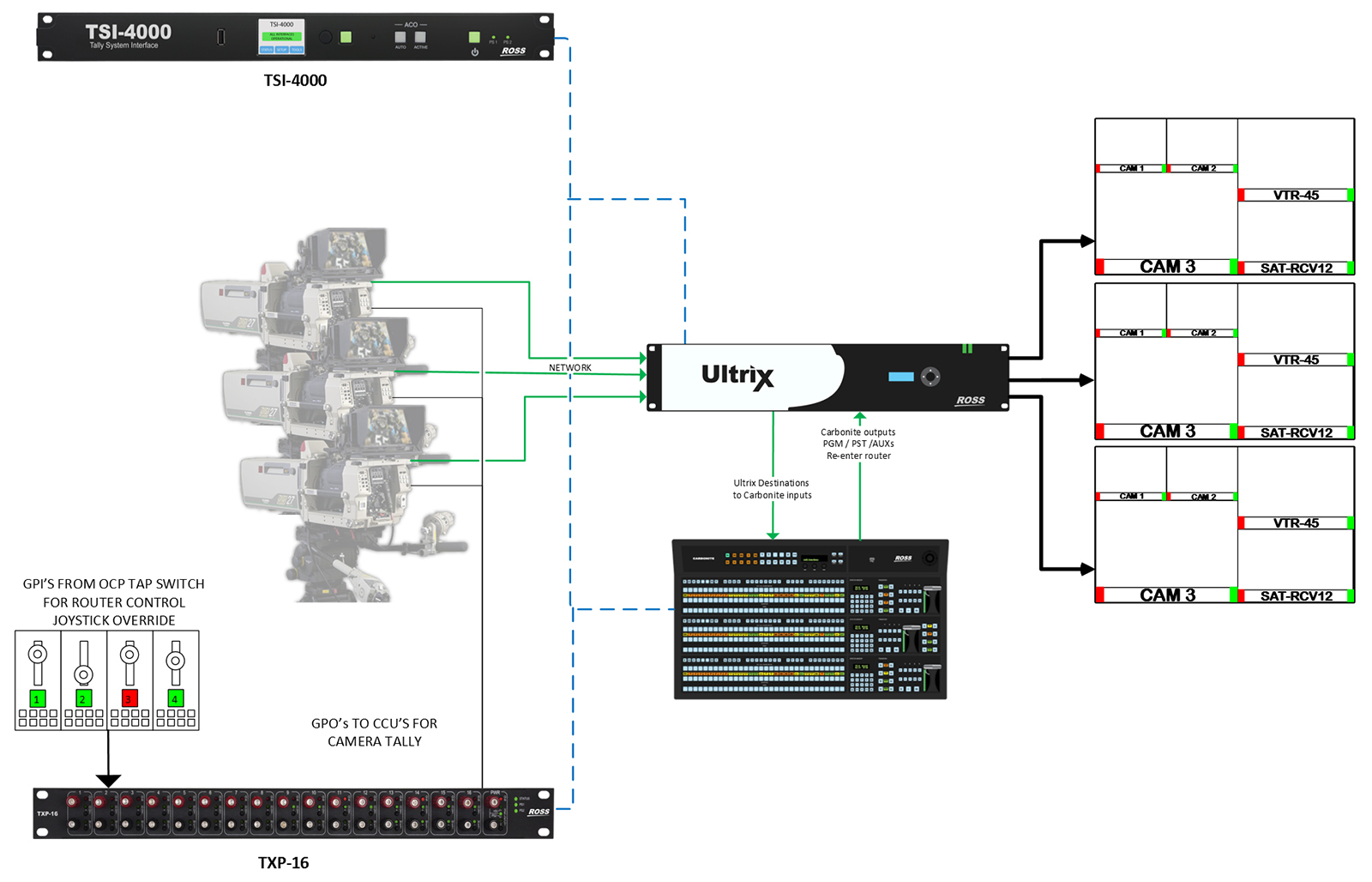

Single PCR

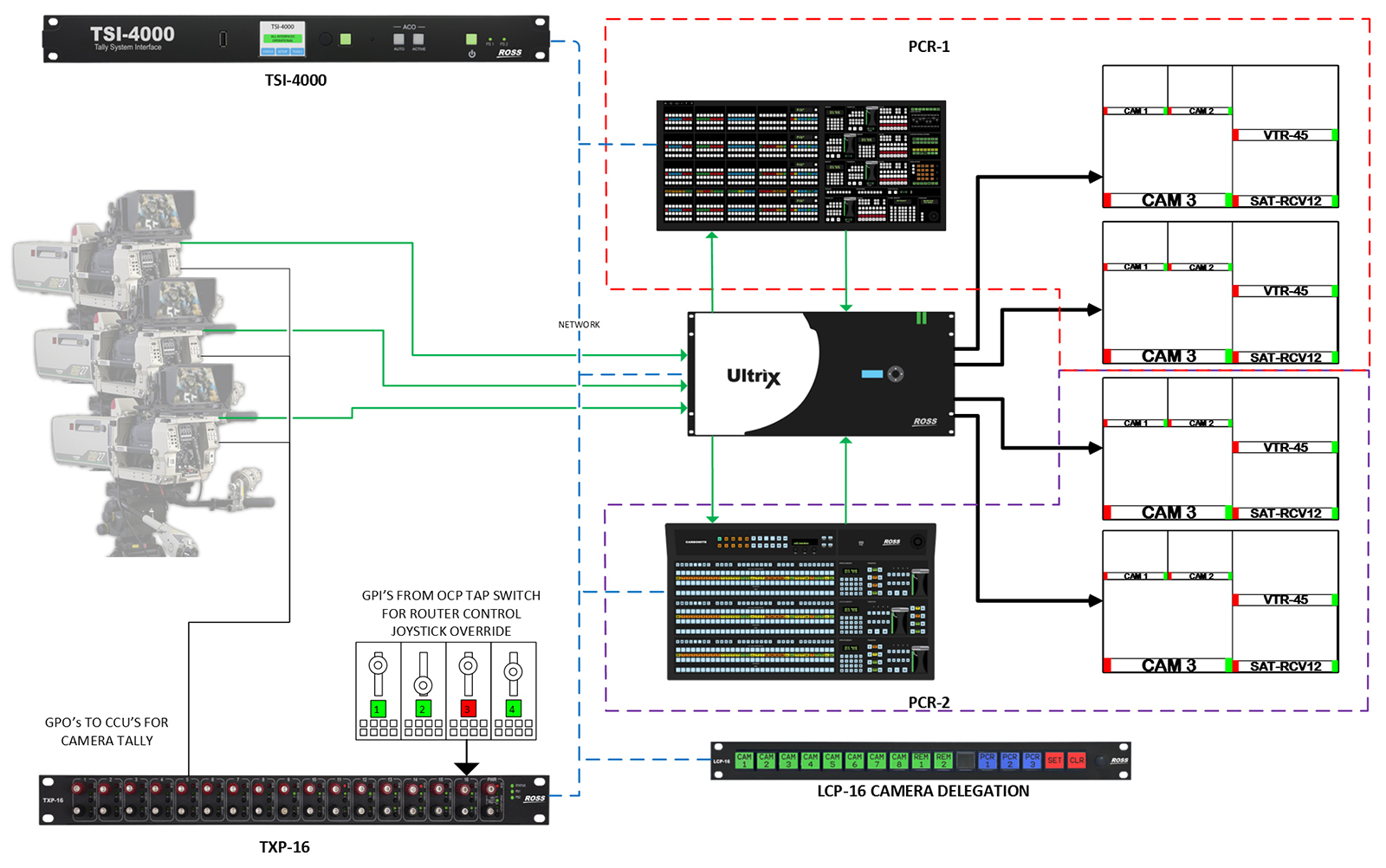

Double PCR

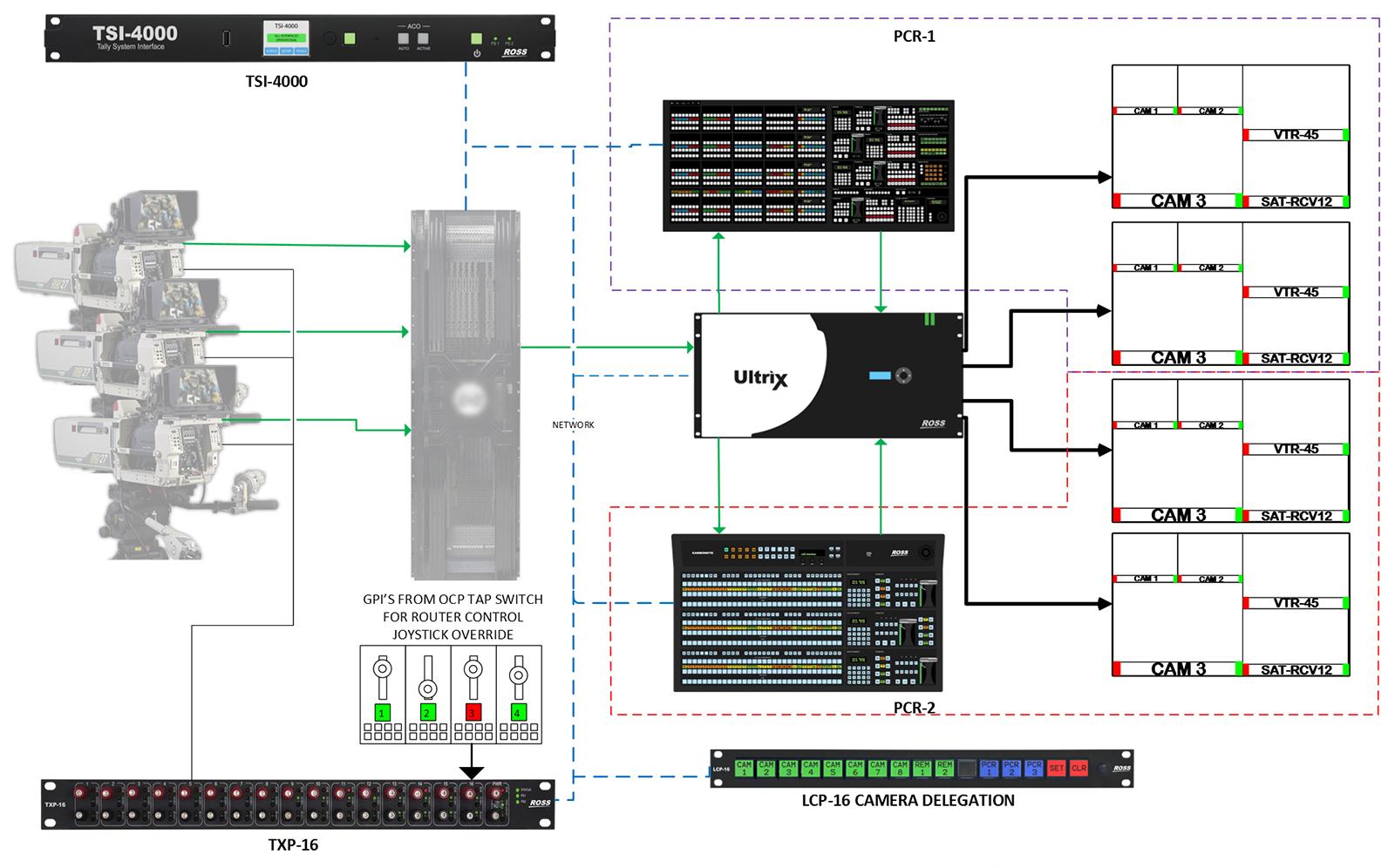

Double PCR with 3rd Party Router

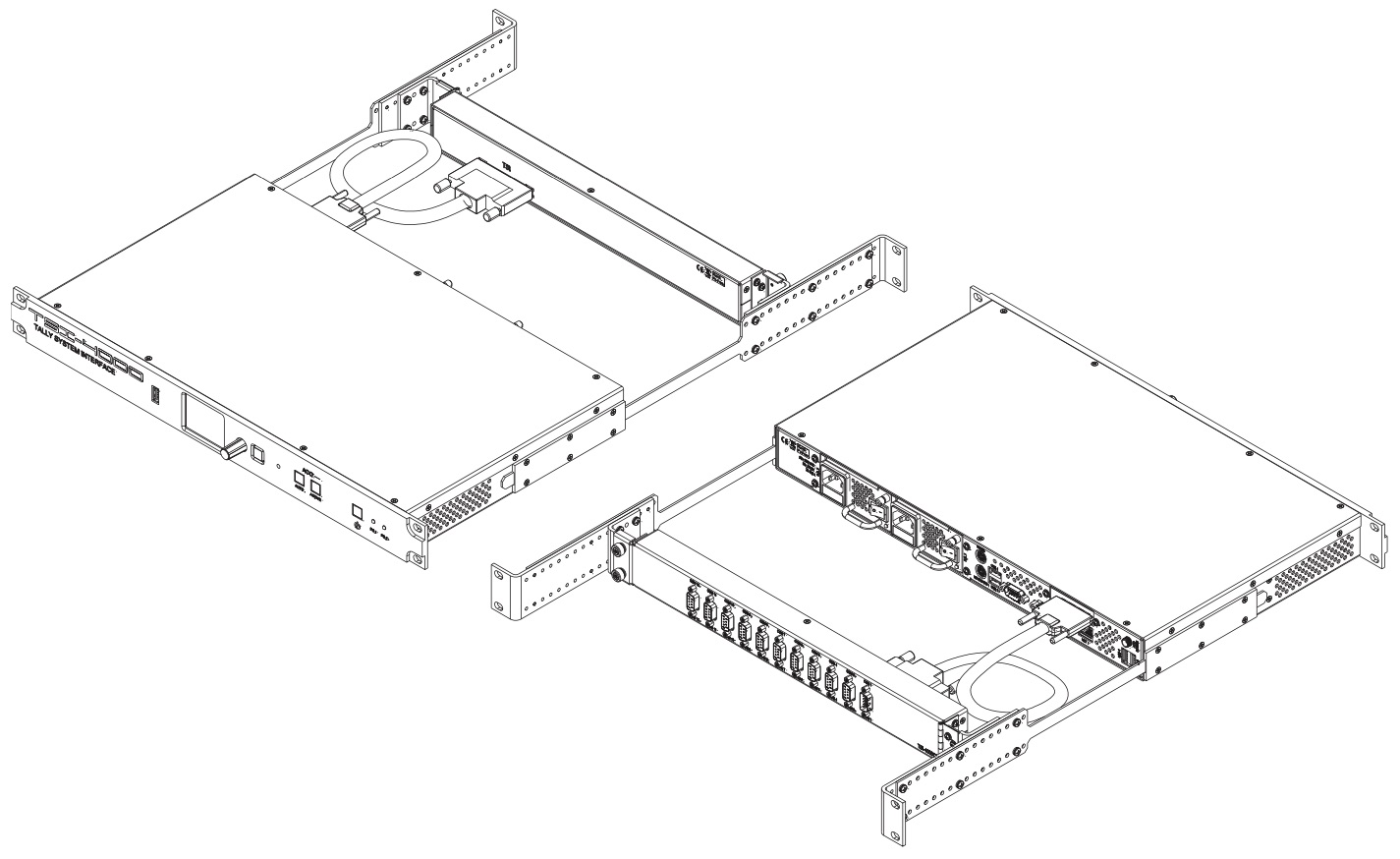

1 RU Installation

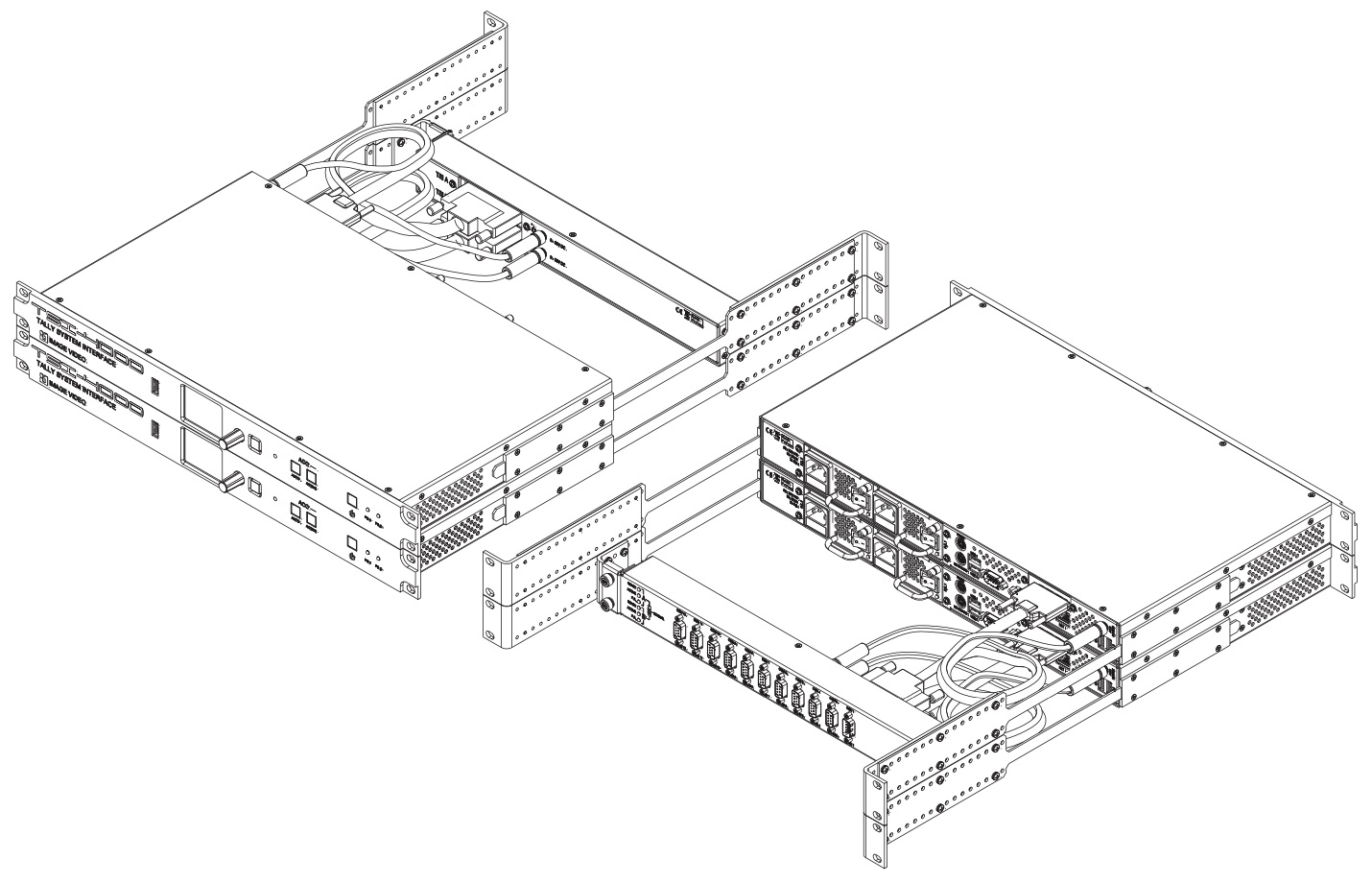

2 RU Installation

Tally System Interface

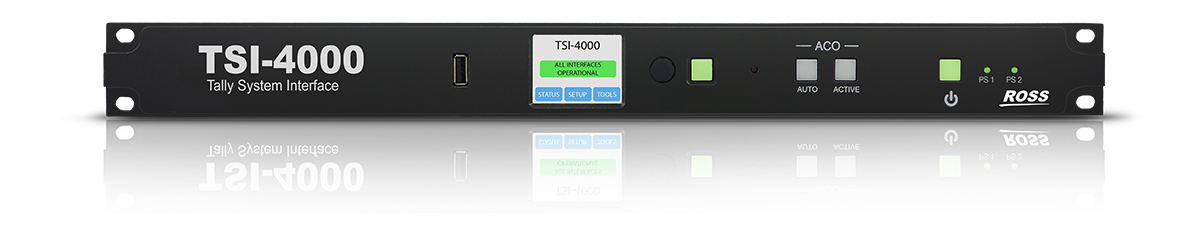

TSI-4000 Tally System Interface

TSI-4000 User Guide

DOWNLOAD (.PDF)
The TSI-4000 User guide provides an overview of the system, describes how to install and set-up TSI-4000 system components, and how to operate and maintain the system once it has been configured.
Learn how our Tally systems can help solve the most complex connectivity issues for any live environment, visit our product page
