SRA-8901

SRA-8901

Single SD/HD/3G/12G-SDI DA (1-in / 4 or 10-out)

The 8900 Series are Ross Video’s Premium level, highly versatile single and dual channel video 12G DA (distribution amplifiers).

The SRA-8901 is a premium-level, highly versatile single-channel digital video distribution amplifier. It has been designed to aid customers in the build-out of signal chains that are supporting the emerging UHD 4K workflows. This 12G-SDI DA is capable of supporting SDI data rates from 270Mb/s up to 12Gb/s. In addition, it can also support DVB-ASI and MADI signals, making it easy to use in a variety of applications. The SRA-8901 uses the latest technology and connectors to achieve the industry’s best EQ performance offering cable lengths up to 200m at HD while still meeting critical return loss specifications up to 12G. Equalization and reclocking are performed on all common serial digital signals.

The SRA-8901 is available in either 1×4 configuration (up to 20 DAs per frame) or 1×10 configuration (up to 10 DAs per frame). It can be fully configured and monitored via Dashboard, as well as LED indicators at the front of the module identity the presence of incoming video, and the data rate.

  • Signal Support:
    • SDI: SD (270Mb/s), HD (1.5Gb/s), 3G, 6G, 12G
    • MADI
    • ASI
    • SMPTE-310
  • Non-inverting outputs, perfect for DVB-ASI distribution
  • Passive rear module
  • Auto or Manual Failover to Secondary input
  • Output routing Support
  • Input EQ
    • 270Mb/s | 380m
    • 1.5Gb/s | 210m
    • 3.0Gb/s | 180m
    • 6.0Gb/s | 80m
    • 12Gb/s| 50m
  • Automatic detection of incoming data rate
  • Configurable as reclocking or equalizing-only
  • HD-BNC rear module I/O options
  • Up to 20 channels of 1×4 distribution in a single frame
  • LED indicators for signal presence and data rate for each channel
  • Excellent input / output return loss specifications up to 12G
  • Hot-swappable
  • 5-year transferable warranty
SDI Input
Number of inputs 1
Supported Standards and Rates SMPTE-310: 19.39Mbps, 38.78Mbps
MADI (AES10-2008): 125Mbs
SD-SDI (SMPTE 259M): 270Mbps
DVB-ASI: 270Mbs
HD-SDI (SMPTE 292M): 1.485Gbps
3G-SDI (SMPTE 424M): 2.97Gbps
6G-SDI (SMPTE 2081): 5.94Gbps
12G-SDI (SMPTE 2082): 11.88Gbps
Input Impedance 75Ω
Equalization (Belden 1694A Cable) >380m (1640ft) @ 270Mbps
>210m (650ft) @ 1.485Gbps
>180m (490ft) @ 2.97Gbps
>80m (260ft) @ 5.94Gbps
>50m (190ft) @ 11.88Gbps
Return Loss >15dB to 1.485GHz
>10dB to 2.97GHz
>7dB to 5.94GHz
>4dB to 11.88GHz
Connector Type HD-BNC
SDI Outputs
Number of Outputs SRA-8901-4: 4 non-inverting
SRA-8901-10: 10 non-inverting
Impedance 75Ω
Return Loss >15dB to 1.485GHz
>10dB to 2.97GHz
>7dB to 5.94GHz
>4dB to 11.88GHz
Rise & Fall Times MADI: 1.0-3.0nS, <0.5nS difference
270Mbps: 0.4-1.5nS, <0.5nS difference
1.485Gbps: <270ps, <100ps difference
2.97Gbps: <135ps, <50ps difference
5.94Gbps: <80ps, <30ps difference
11.88Gbps: <45ps, <18ps difference
Jitter MADI:           <2.0UI (<4.0nS)
270Mbps:    <0.2UI, jitter measured 10Hz-1kHz
1.485Gbps: <1.0UI jitter measured 10Hz-100kHz,
<0.2UI above 100kHz
2.97Gbps    <1.0UI jitter measured 10Hz-100kHz,
<0.3UI above 100kHz
5.94Gbps:   <2.0UI jitter measured 10Hz-100kHz,
<0.3UI above 100kHz, band limit @594MHz
11.88Gbps: <2.0UI jitter measured 10Hz-100kHz,
<0.3UI above 100kHz, band limit @1188MHz
Output Level 800mV ±10%
DC Offset 0V ±50mV (MADI is 400mV +/- 10%)
Overshoot <10%
Connector Type HD-BNC
Physical & Power
Power Consumption SRA-8901-10: 2.5W
SRA-8901-10: 4.6W
Environmental 0-40⁰C operational<95% RH, non-condensing
Physical Compatible with OG3-FR and OGX-FR frames

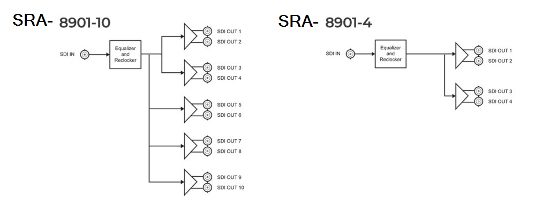

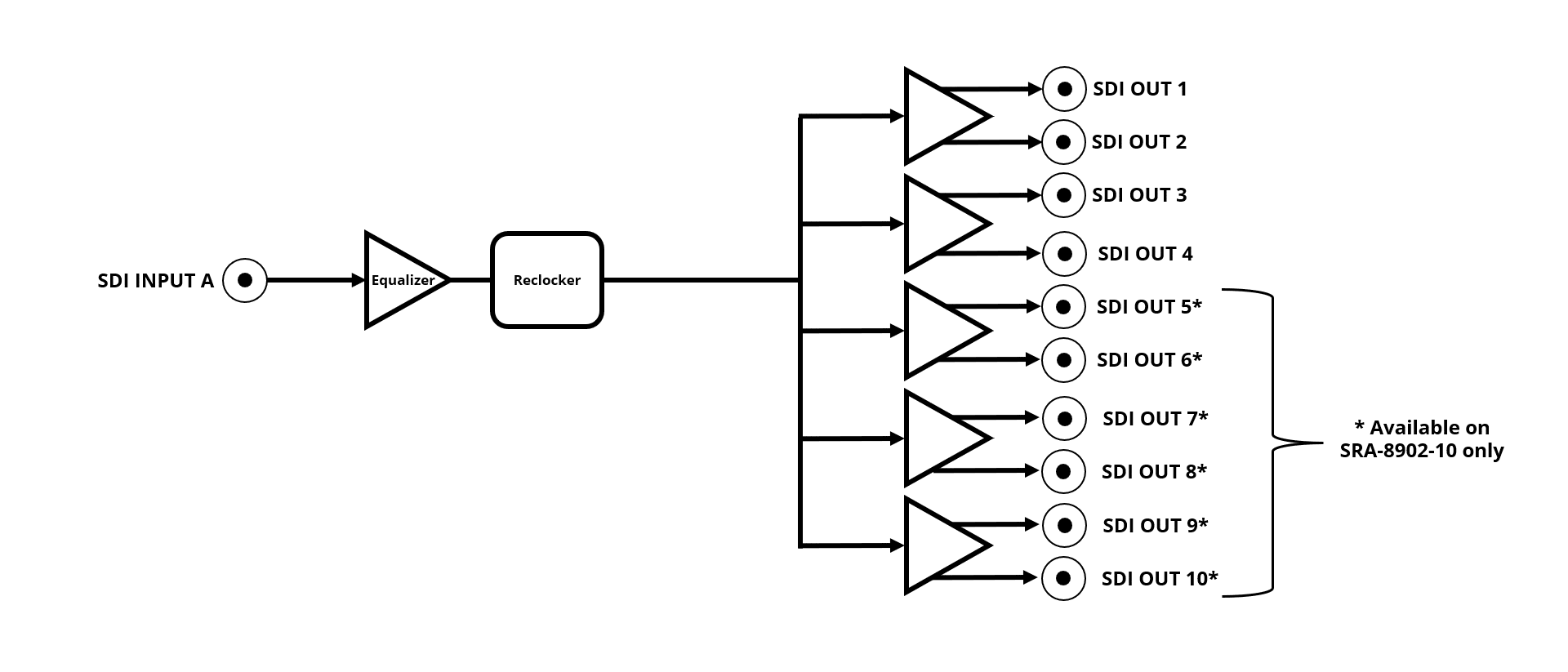

SRA-8901 Block Diagram

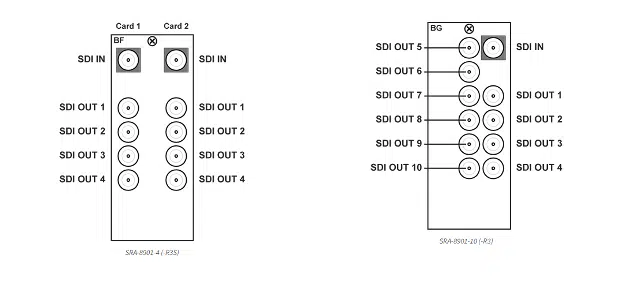

ORDERING CODE DESCRIPTION

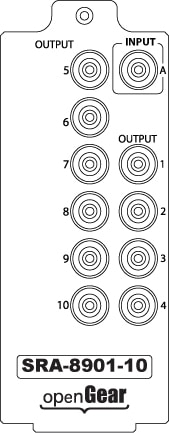

SRA-8901-10-R3 1×10 12G-SDI Distribution Amplifier with rear module

VIEW REAR MODULE

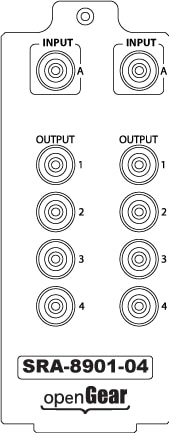

SRA-8901-4-R3S 1×4 12G-SDI Distribution Amplifier with split rear module

Rear module accommodates second SRA-8901-4 card (sold separately)

VIEW REAR MODULE
SRA-8901-4 1×4 12G-SDI Distribution Amplifier – card only

Requires rear module (sold separately)
openGear SRA-8901 Manual Download
openGear Manuals Download
