At a glance

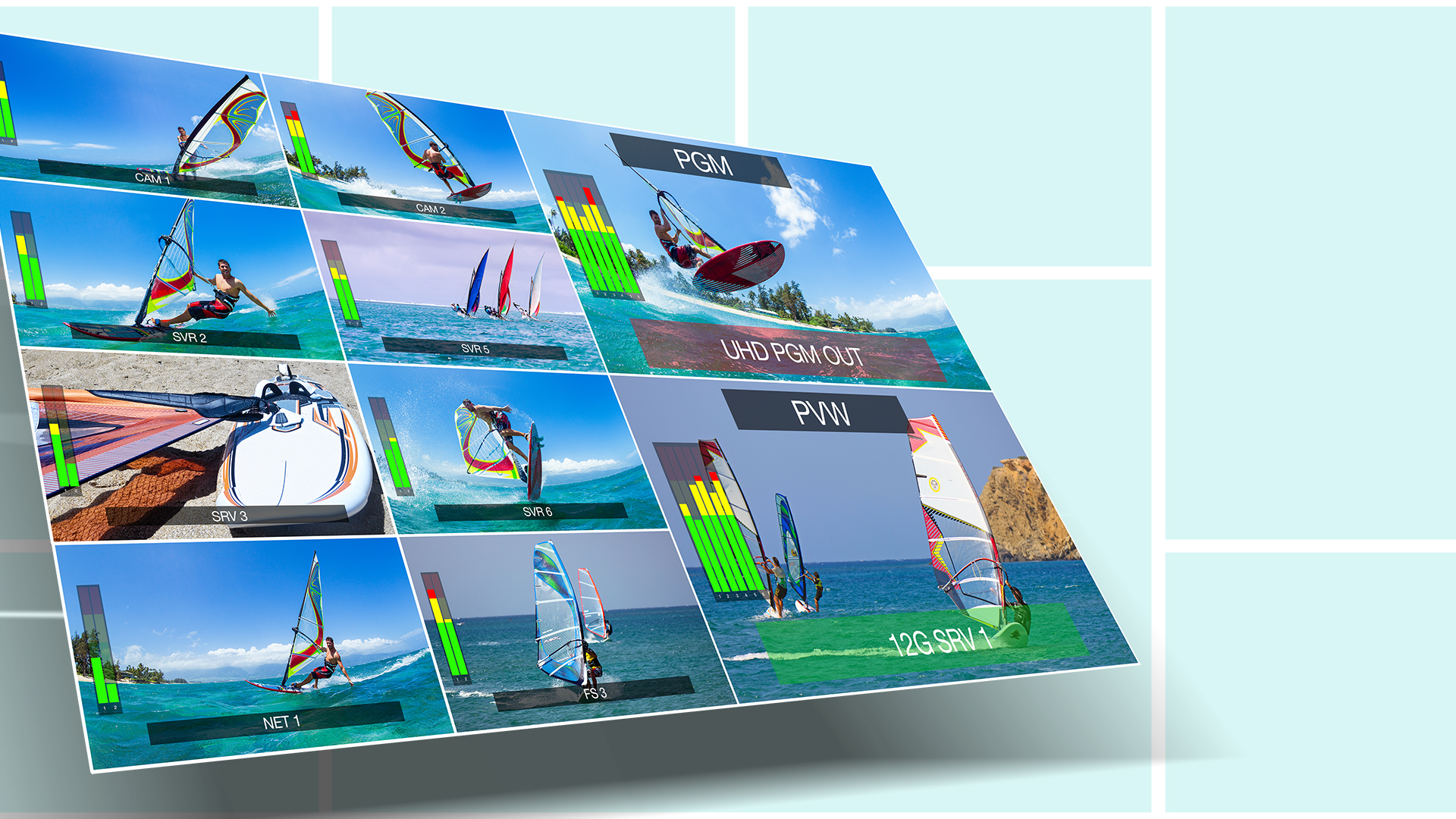

Software Defined Multiviewer Platform
Ultriscape is the ultimate multiviewer platform for Studios, OB Vans, and Flypacks.
As the world’s first software defined multiviewer, customers realize significant cost, space, and power efficiencies with unparalleled flexibility and agility.
Easily add new multiviewer outputs through additional software licenses. No additional hardware required.
Ultriscape is an integrated multiviewer within the Ultrix platform. Therefore, it can be added to extensive routing, audio processing, and synchronization capabilities to create a completely integrated solution.
Each multiviewer head is completely independent, offering tremendous flexibility for layouts and control.
Pay as You Go
The software defined architecture means you simply buy what you need, when you need it. No need to make critical design decisions upfront, simply add appropriate multiviewer outputs when they are required.
12G & IP Ready
Ultriscape supports inputs from 270Mb/s up to 12G in SDI and IP. This means it’s ready for UHD production when you are, without replacing any hardware or losing capacity.
Monitoring is more than just a picture. Visualize important metadata including audio metering, tally, source names, closed captions and more.
Add multiviewer outputs by purchasing software licenses. Up to 6 outputs in a 1RU, 12 outputs in a 2RU, 27 outputs in a 5RU, and up to 48 outputs in a 12RU.

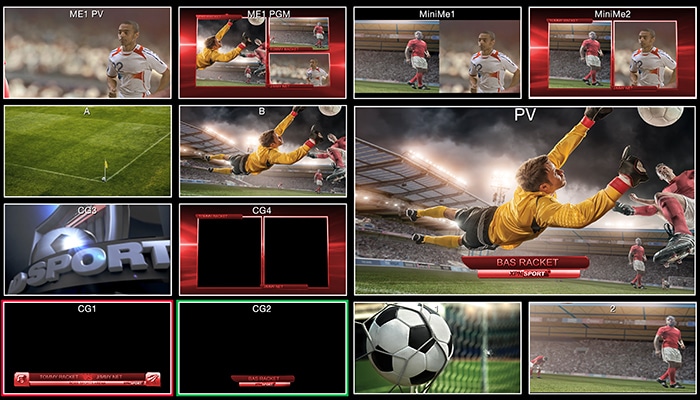

Rich Multiviewer Capabilities
Each multiviewer head supports up to 100 PiPs, with flexible overlay including audio, tally, closed captions and more! Each PiP is fully customizable providing superior flexibility.
Industry Leading Quality
Pristine image quality, and low latency make Ultriscape ideal for the most demanding applications and venues.
Industry Standard Control Protocols
Industry standard routing control and multiviewer tally protocols means easy integration into automation systems as well as 3rd party router control systems.
Tight integration with router database and simultaneous access to all router inputs helps make Ultrix and Ultriscape a complete system that is intuitive and powerful.
Ross Video Communities!
The platform offers a place for live production professionals to come together to share their experiences, solve problems, find answers to questions and discuss best practices.
|Video Matrix Size (max)||36×36||72×72||160×160||288×288|
|Default I/O Slots||1 (16×16 HD BNC + 2 AUX I/O Ports)||1 (16×16 HD BNC + 2 AUX I/O Ports)||None||None|
|Optional I/O Slots using ULTRIX-HDB-IO||1 (16×16 HD BNC + 2 AUX I/O Ports)||3 (16×16 HD BNC + 2AUX I/O Ports)||9 (16×16 HD BNC + 2AUX I/O Ports) slots 1-8; FLEX slot 16×16 HD BNC only||16 (16×16 HD BNC + 2AUX I/O Ports)|
|Optional I/O Slots using ULTRIX-IP-IO||1 (x4 25G SFP28 + 2 SFP I/O Ports)||1 (x4 25G SFP28 + 2 SFP I/O Ports)||9 (x4 25G QSFP + 2 SFP I/O Ports)||16 (16 SFP ports + 2AUX I/O Ports)|
|Ultriscape MV Head License per Slot||3 SDI or 2 IP||3 SDI or 2 IP||3 SDI or 2 IP||3 SDI or 2 IP|
|Maximum Ultriscape MV heads per System||6 SDI or 2 IP||12 SDI or 6 IP||27 SDI or 18 IP||48 SDI or 32 IP|
