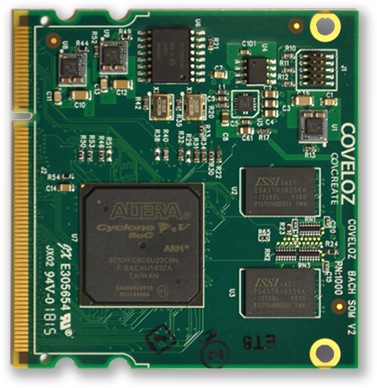

BACH Liberty

Pin-Compatible Module to Dante Brooklyn II

Bring your products to Broadcast IP markets through the simple integration of our BACH modules with proven AES67 and ST2110 compliance.

Pin compatible with your designs that use the Brooklyn II, easy integration for new designs.

AES67 / NMOS / SAP / RAVENNA and ST2110, in one package.

BACH Liberty is a drop-in module that adds AES67 and ST 2110 compliance to your products by integrating with existing hardware and software.

Let your products perform across multiple markets in broadcast and live professional audio applications, with native support of networking solutions such as SAP, RAVENNA and NMOS, all integrated into the same BACH Liberty module.

Liberty has the interfaces, customizations, and reference material to add IP capabilities to your products while letting your brand and features take center stage.

BACH Liberty frees you to better serve your customers’ workflow with your choice of user interface including our powerful WebUI branded with your logo and color scheme and the free ANEMAN controller.

Network Transport AES67 and ST2110-30/31
Max. Channels per Direction 64
Streams per Direction 8
Glitchless Redundancy Per ST2022-7
Packet Time / Latency 125μs or 1ms
Network I/O RGMII
Programmable TDM I/F 8 x I2S, I4S, or I8S
Control I/O UART
Discovery & Registration SAP , RAVENNA & NMOS IS-04
Connection Control JSON API, NMOS IS-05, ANEMAN & Web UI
Telemetry & Configuration JSON API, CLI & Customizable WebUI
Sample Rate 44.1/88.2kHz and 48/96kHz
Audio Encoding L16, L24, L32 (16, 24 and 32bit) & AM824 for AES3 transparent transport
Mechanical Specifications Mechanically and electrically compatible to the Dante Brooklyn II module

The BACH Virtuoso Audio-over-IP PDK (Product Development Kit) includes everything you need to evaluate and integrate Ross Video’s BACH technology into your products.

The BACH Virtuoso PDK showcases the entire BACH family, including BACH openModuleBACH Liberty, and BACH Minuet.

BACH Virtuoso has the audio and control interfaces you need for a thorough product evaluation:

    • BACH openModule SODIMM connector
      – 2x Redundant Gigabit Ethernet Ports
      – 1x Control Ethernet Port
      – 32x I32S TDM lines brought out to headers for monitoring up to 512ch
      – Word Clock in and out to monitor PTP synchronization
      – uSD Card
    • BACH Liberty mini-PCI connector
      – 2x Redundant Gigabit Ethernet Ports
      – 1x Stereo 1/8” analog in and out (2+2 channels)

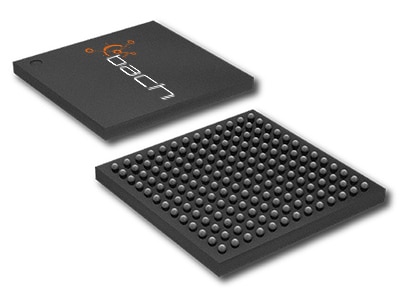

    • BACH-Minuet integrated on board
      – 2x Analog XLR in and out (2+2 channels)
      – 1x AES/EBU Digital Audio in and out (2+2 channels)
      – 1x Stereo 1/8” analog in and out (2+2 channels)
    • Common features
      – Power over Ethernet and redundant DC external power supply
      – USB UARTs and JTAG connectors for programming and debug
      – Headers for access to all TDM audio signals



COV-BACH-LIBERTY BACH Liberty System on Module (SOM)
COV-BACH-VIRTUOSO-PDK BACH Virtuoso Audio-over-IP Product Development Kit, with BACH Liberty, BACH openModule, and BACH Minuet

Your Brand, Your Strengths

Create a unique selling proposition and differentiate your product with rapid and flexible customization.

Define Your Customer’s Experience

Open standards open the door to using the controller and workflow of your choice.

Perform Across Markets

Adapt to any network. Get the AES67/ST2110 performance you need to grow your revenue today.

Get to Market Fast

Our plug-and-play module is simple to integrate and pin-compatible with designs that use the Brooklyn II.

Develop for the Future Today

Add video to your audio, on the same network, from the “Living Live” experts.

Security of Supply

Source your critical technology from multiple suppliers. You can count on Ross Video’s stability.
