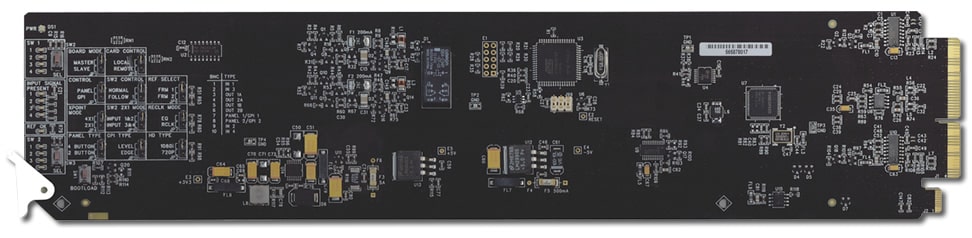

DSS-8224 Dual 2×1 OR 4×2 HD / SD SDI Switch

DSS-8224

Dual 2×1 or 4×2 HD / SD SDI Switch

A convenient and economical solution for systems requiring switching of up to 4 input video sources, SDI and / or HD SDI, to 1 or 2 outputs.

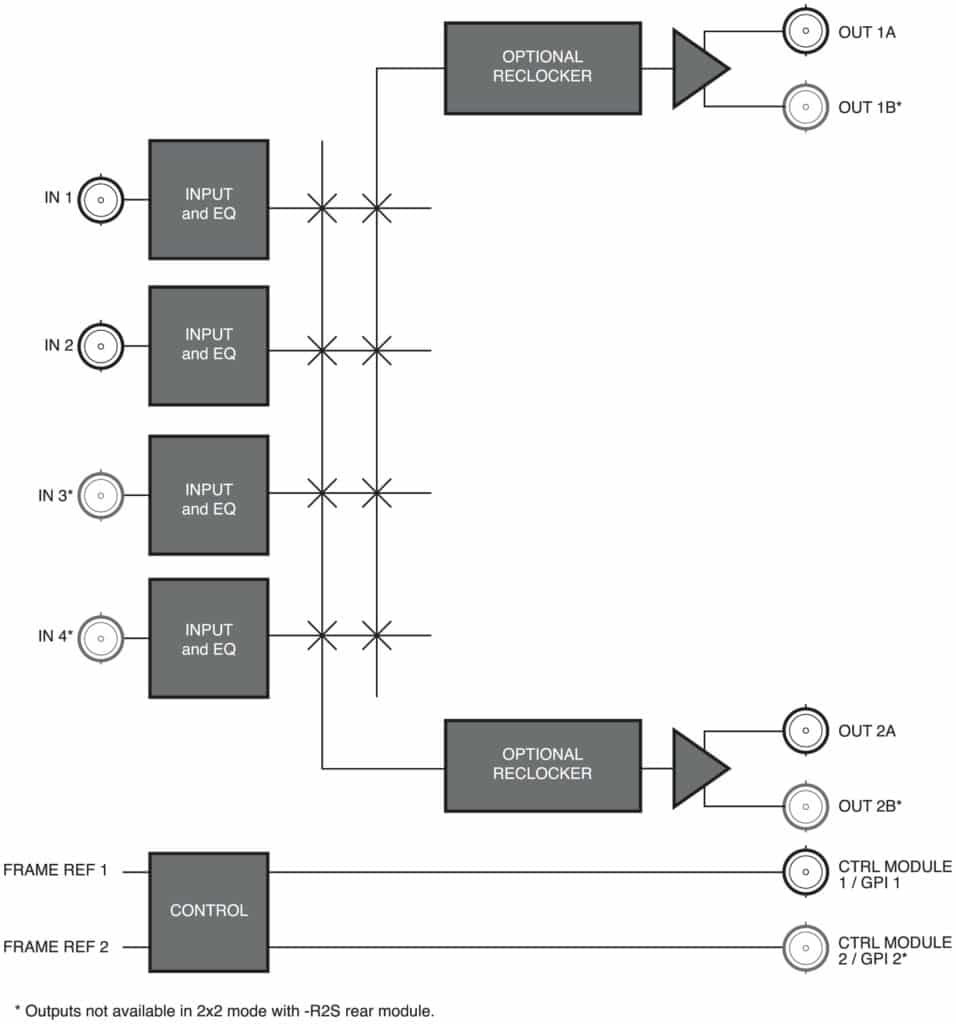

The DSS-8224 can be configured as a pair of independent 2×1 switches or as a pair of 4×1 switches with common inputs. The DSS-8224 accepts common serial digital signals at 143, 270, 360, 540Mb/s and 1.485Gb/s. All switches are performed in the vertical interval, timed to an external reference. Each switch can be controlled locally at the card-edge by an optional RCM-8120 control module or by GPI. DashBoard and optional SNMP monitoring is provided for input presence, reference present and output status.

The DSS-8224 can be combined, on a common control system, with the AVS-8764 to perform multi-level, analog video, AES audio, and HD / SD SDI switching.

The DSS-8224 can be configured in auto-changeover mode. In this mode, the secondary input is selected when the primary is lost or lock cannot be achieved.

  • Dual 2×1 or 4×2 modes
  • 2 switches on a single module
  • Switches HD SDI and SD serial digital video (143Mb/s to 1.485Gb/s)
  • 4 HD / SD SDI inputs, 2 reclocked outputs
  • Configurable to 4×2, 4×1, 2×1, or dual 2×1 switch
  • 20 2×1 / 10 4×2 switches in 2RU
  • Input selection saved to non-volatile RAM
  • Vertical interval switching compliant with SMPTE RP168-2002
  • Indicators for input signal presence and reference
  • Flexible control, remote RCM-8120 module, GPI, card-edge
  • 5-year transferable warranty
  • Power: 4.5 watts
Dual 2×1 or 4×2 HD / SD SDI Switch
DSS-8224 HD / SD SDI SwitchRear Module Suffix (ex: [model]-R2)

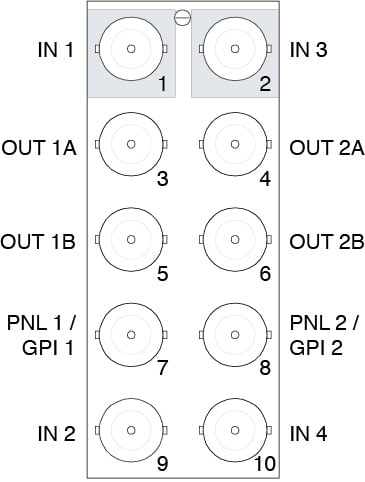

-R2 Rear Module for DSS-8224

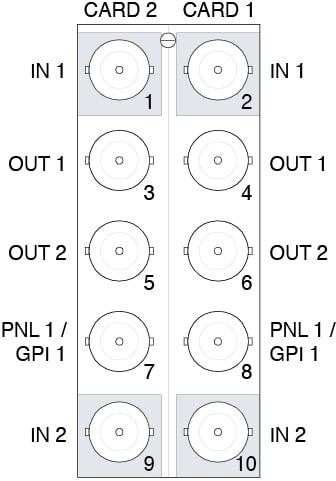

-R2S Split Rear Module for 2x DSS-8224
R2 R2S
