Carbonite Ultra 60
Standalone Production Switcher
Handle larger, more complex live productions with up to 60 inputs and 25 outputs in a modular HD/UHD production switcher.
Take on larger live productions with the capacity, processing power and control you need in one flexible HD/UHD production switcher.
Carbonite Ultra 60 expands the proven Carbonite experience with the I/O and production power to take on larger, more demanding productions. Its modular 3RU platform gives you room to connect more, create more, and scale as your production requirements grow.
More I/O for larger productions
Connect more cameras, servers, graphics and other sources, with configurations from 12 × 4 through to 60 × 25. Add I/O capacity as your production requirements grow.
Complex productions, simpler operation

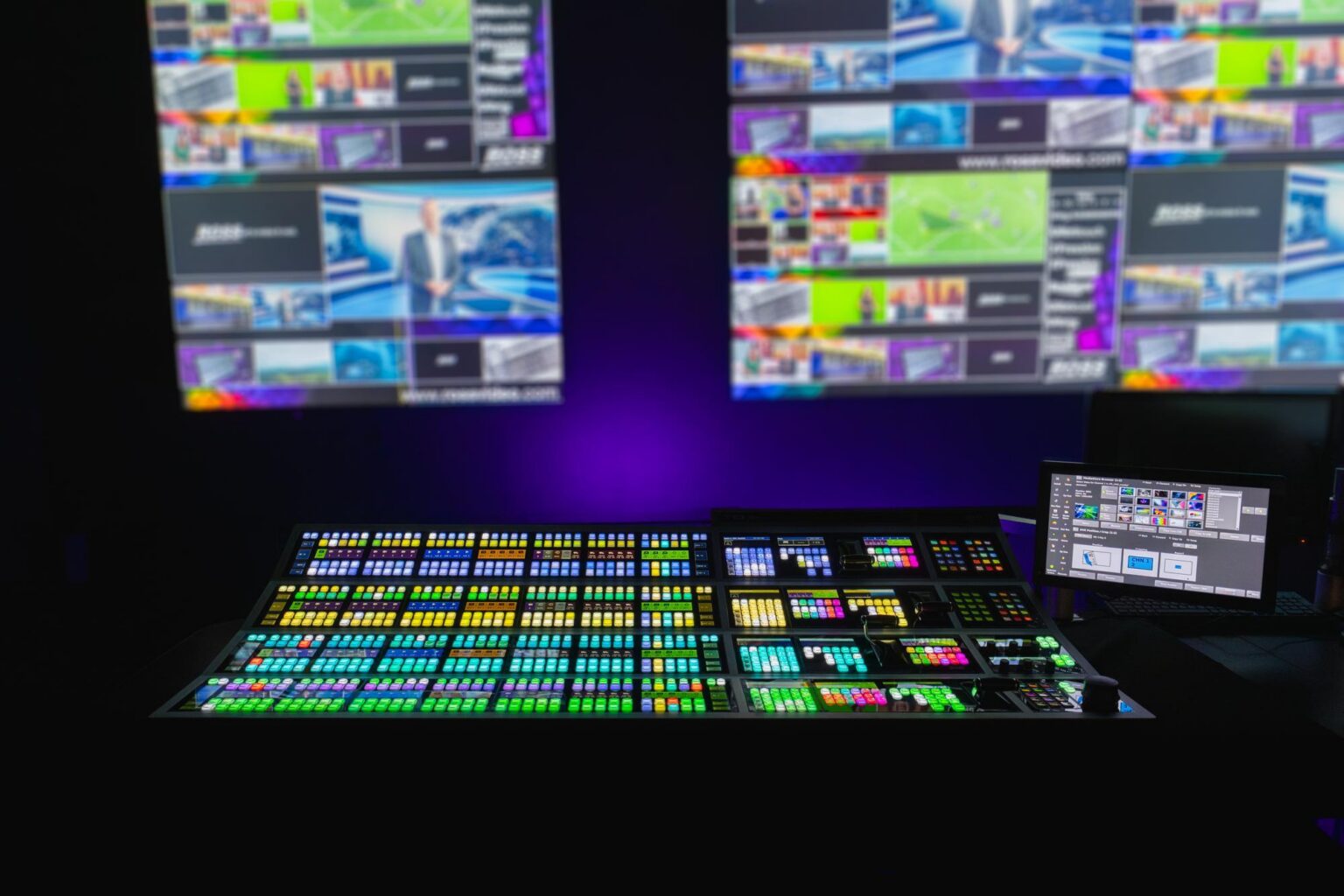

Handle layered compositions, transitions, keying and effects without adding separate processing systems. Familiar Carbonite operation and multiple control options help operators stay focused on the production.

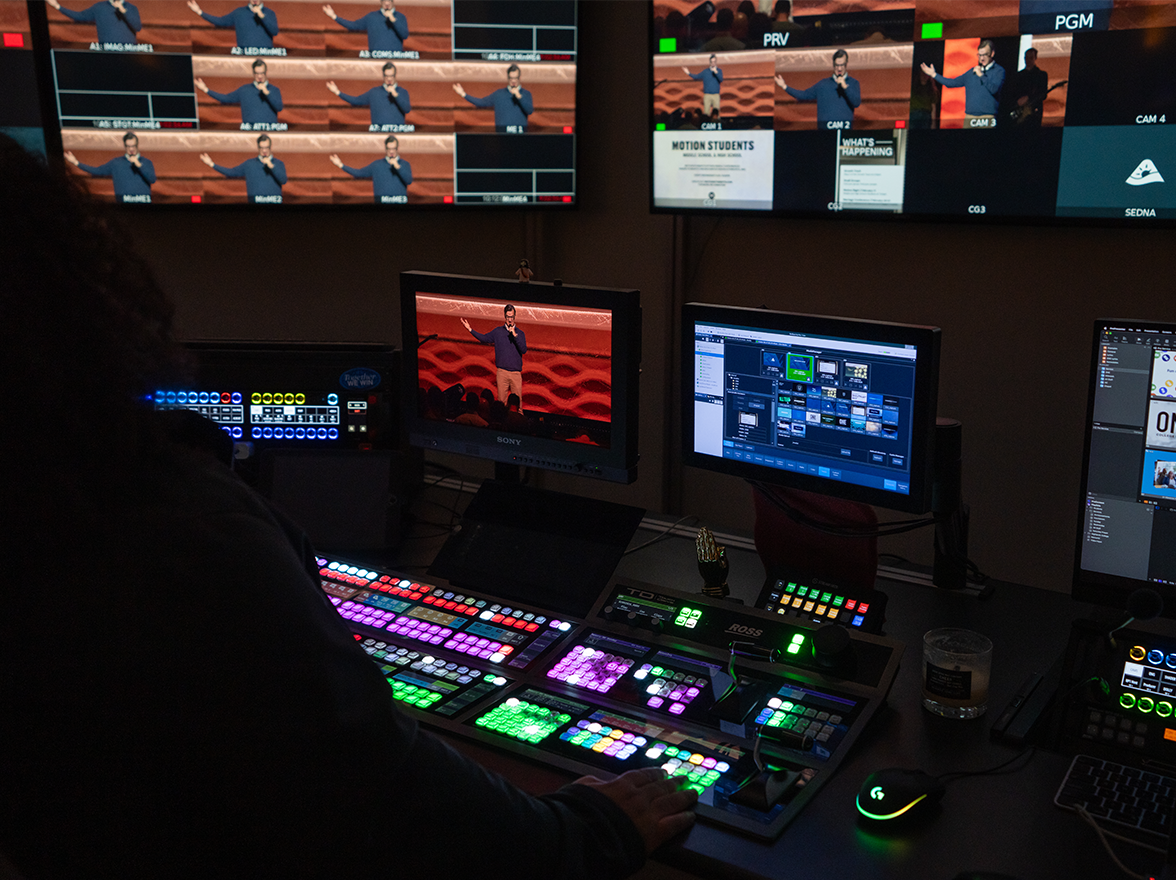

HD or UHD, ready for what’s next
Produce in HD or UHD with a platform designed to evolve with your workflow. Software-defined functionality and ongoing software updates help you keep your production capabilities current.
Designed for demanding live productions
More production power without the complexity of a larger switcher
With up to three M/Es, six independent key layers per M/E and UltraScene compositing, create sophisticated live looks from one platform.

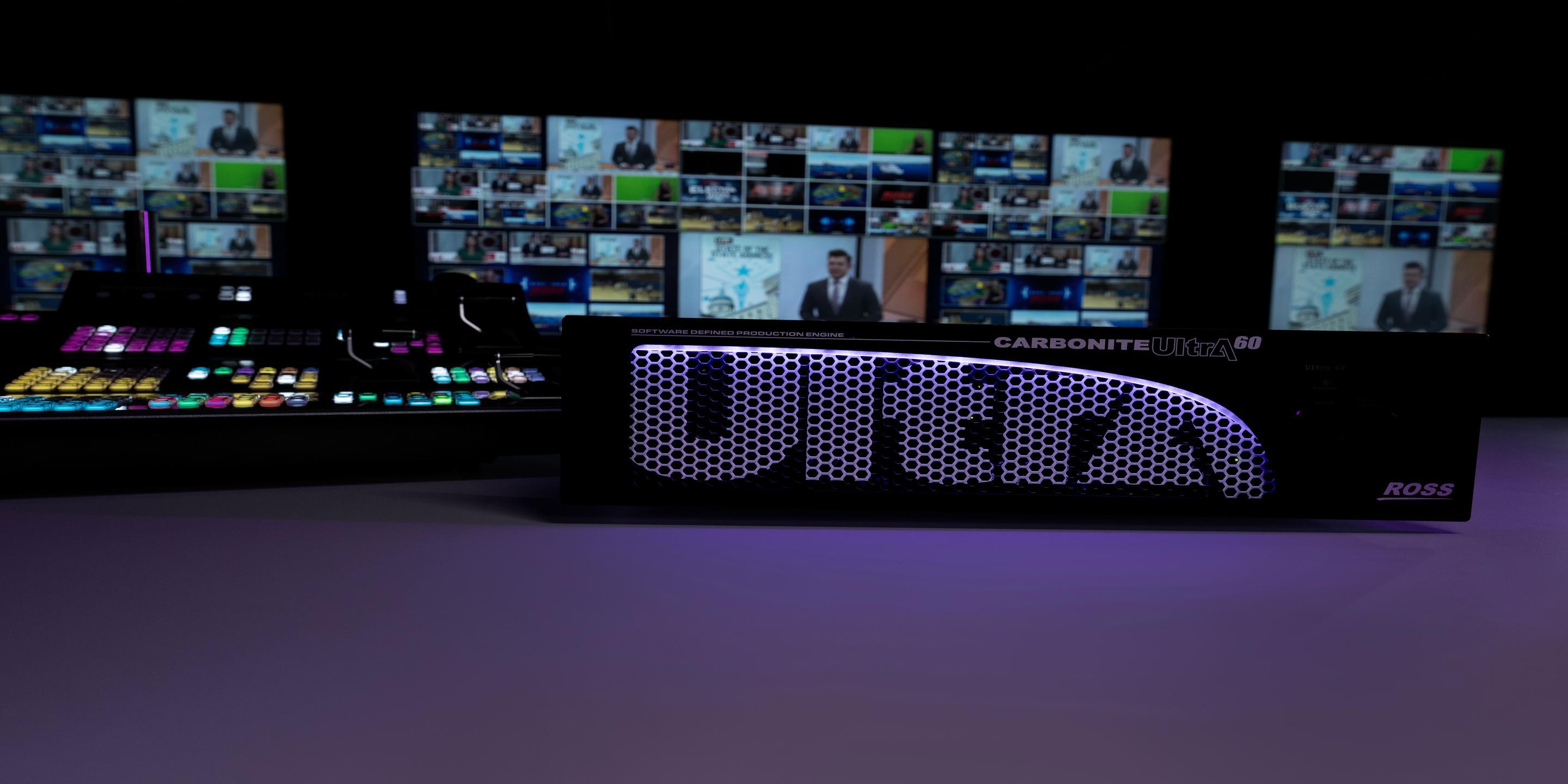

Production power that works your way

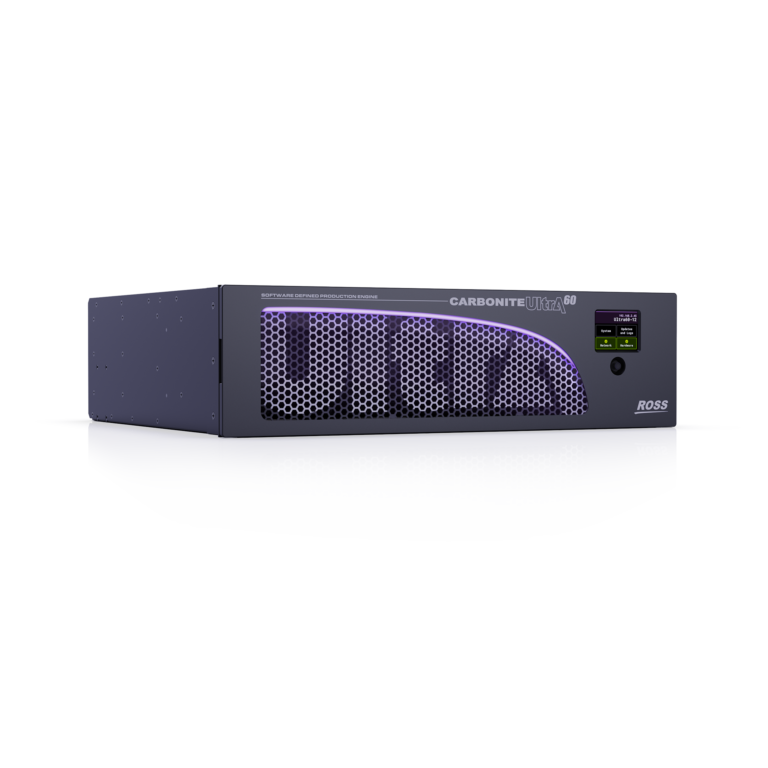

Configure the I/O you need

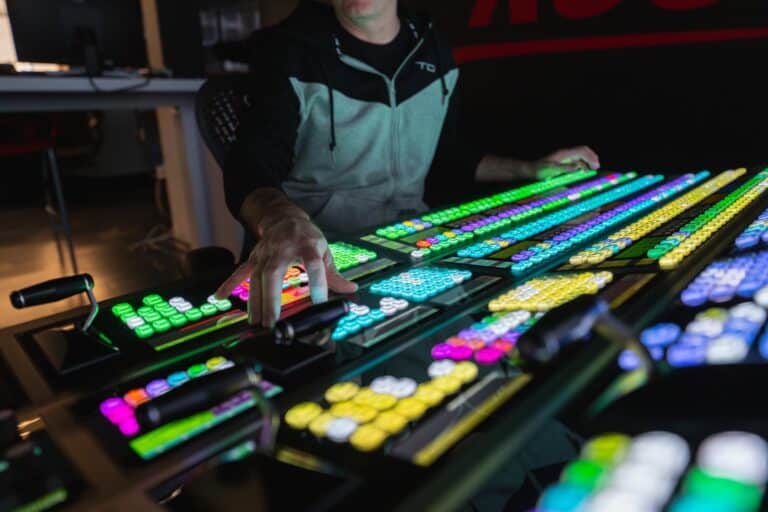

Up to three full M/Es

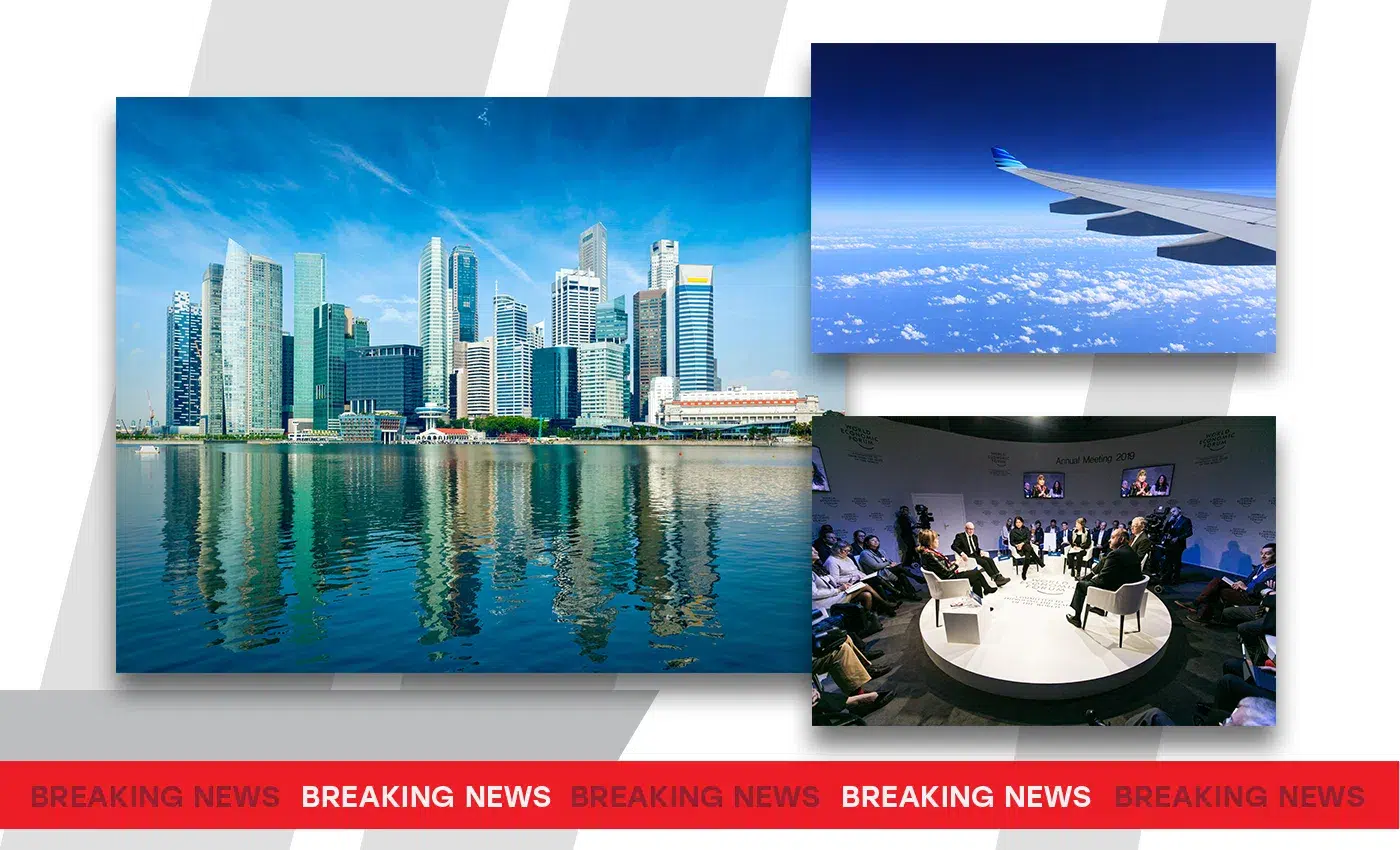

Advanced UltraScene compositing

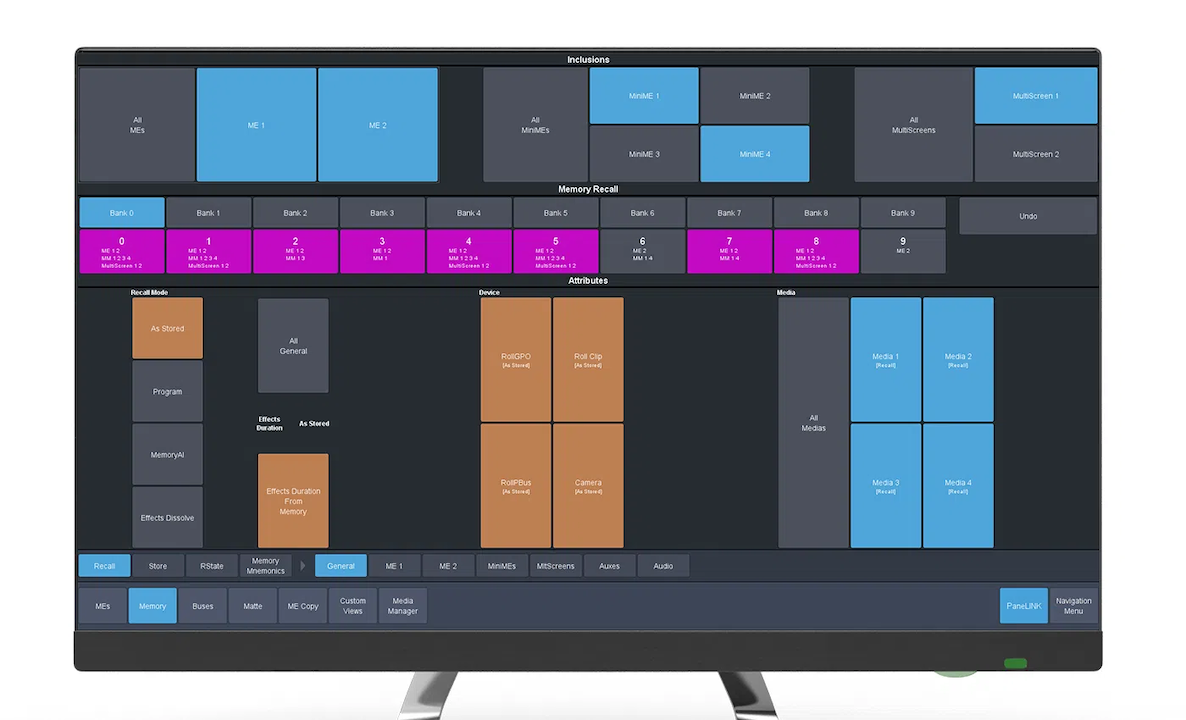

Flexible MultiViewer monitoring

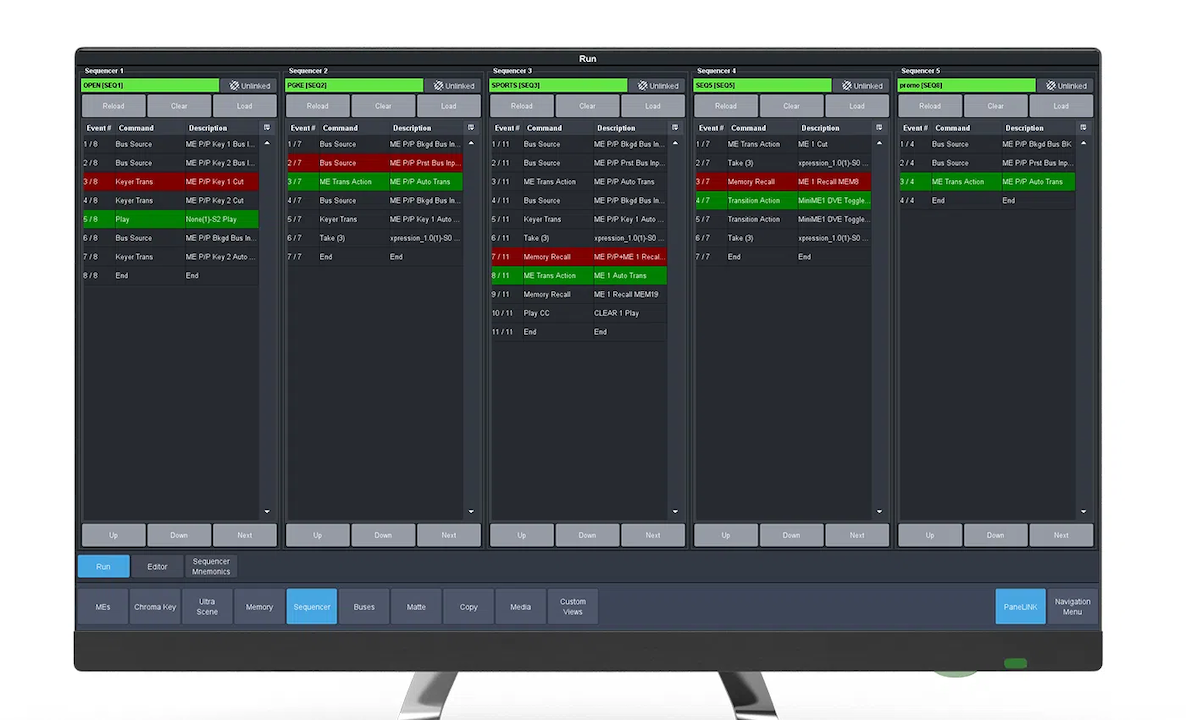

Faster, more consistent operation
Flexible control and integration
Choose the control approach that fits your team, from TouchDrive control surfaces to DashBoard virtual panels and ViewControl. DashBoard also provides access to configuration and operational controls from multiple locations.
Integrated media playback
MediaStore capability lets operators bring stills and animated media directly into the production workflow, reducing the need for additional external systems.
Integrated audio processing
Add the optional RAVE audio mixer for professional audio mixing, processing and routing, including EQ, compression, limiting, noise gating, AFV and configurable Aux mixes.
HD and UHD production
Support HD or UHD production from the same platform, giving you flexibility to match the switcher to your current workflow and future production requirements.
Software-defined platform
Keep your system current with ongoing software updates that add new capabilities without requiring a complete hardware replacement.
Automated Workflows
XPression uses intelligent caching to provide real-time access to content so there is no lag between keyboard entry and system operation.
Control that fits your workflow
TouchDrive Panels
Pair Carbonite Ultra 60 with TouchDrive control panels for a highly intuitive production experience. Designed for speed and efficiency, TouchDrive gives operators the tactile control to manage complex live productions with confidence.
Carbonite Ultra 60 Technical Specifications
*Requires the applicable UHD ME licence.
| Configuration | HD/SD | UHD |
|---|---|---|
Inputs and Outputs (SDI): Base Engine |
12 × 4 + 1 I/O MultiViewer | 12 × 4 + 1 I/O MultiViewer |
Inputs and Outputs (SDI): 2 I/O boards |
36 × 12 + 3 I/O MultiViewers | 36 × 12 + 3 I/O MultiViewers |
Inputs and Outputs (SDI): 3 I/O boards |
60 × 20 + 5 I/O MultiViewers | 60 × 20 + 5 I/O MultiViewers |
Full MEs / MiniMEs |
Up to 3 MEs / 4 MiniMEs | Up to 3 MEs* / 2 MiniMEs |
MultiViewers |
Up to 7 | Up to 6 |
Keyers per Full ME / MiniME |
6 Keyers / 2 Keyers | 6 Keyers / 2 Keyers |
UltraChrome Chroma Keyers |
Up to 4 | Up to 2 |
2D DVEs |
Up to 12 | Up to 8 |
MediaStores |
Up to 8 | Up to 6 |
Frame Synchronisers / Format Converters |
Up to 80 | Up to 60 |
Proc Amps / Colour Correctors |
Up to 60 | Up to 40 |
Knowledge centre
Technical support
Expert help when you need it — dedicated to keeping your production running smoothly.
Product documentation
Comprehensive guides to help you get the most out of your Ross products.
Software downloads
Stay up to date with the newest features, enhancements, and software releases.
Training resources
Stay up to date with the newest features, enhancements, and software releases.
Ross Community
Ask questions, share knowledge, and connect with other Ross users.
Frequently asked questions
Carbonite Ultra 60 is a mid-sized production switcher designed for larger and more complex live productions. It supports up to 60 inputs, 25 outputs and three full M/Es in HD or UHD.
Yes. Its modular 3RU frame allows you to configure the I/O capacity you need and expand it as your production requirements grow.
Yes. Carbonite Ultra 60 supports HD and UHD production, giving you flexibility as your production requirements evolve.
Carbonite Ultra 60 supports up to three full M/Es, with six independently controllable key layers per M/E.
Carbonite Ultra 60 can be paired with Ross TouchDrive control surfaces and also supports DashBoard-enabled virtual panels and ViewControl.
Yes. It provides up to 26 independently controllable keyers, three transition keyers and four paired UltraScene compositing engines for advanced layered compositions.
