NRG
Hyperconverged Solutions
Affordable, dependable routing for live production teams.
Next generation SDI routing

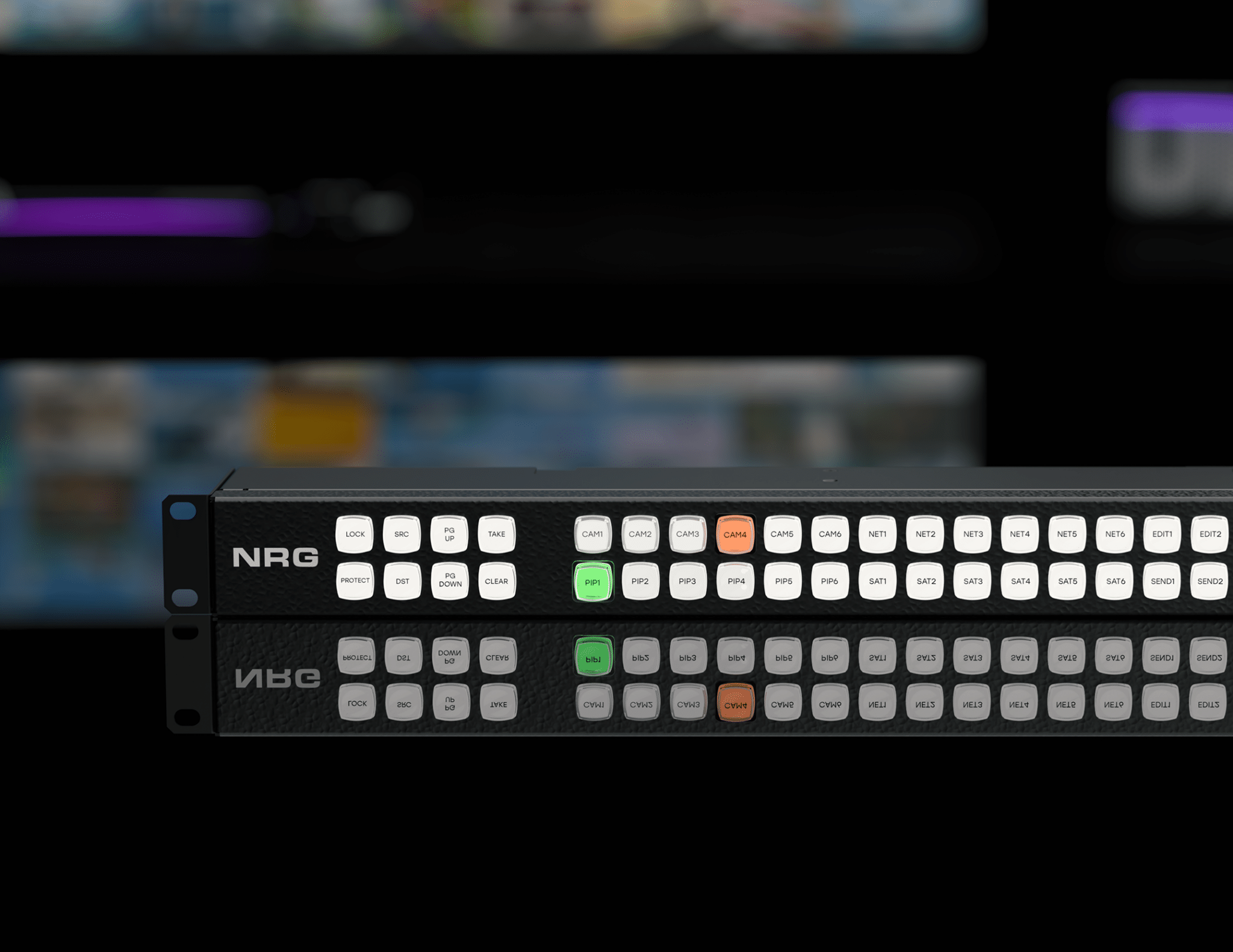

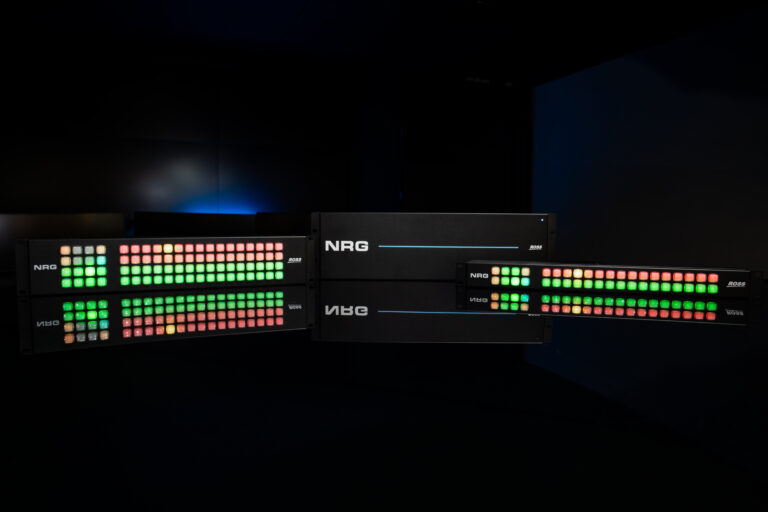

NRG is a next-generation SDI routing platform that simplifies live production workflows. Available in compact 1RU (16×16), 2RU (32×34), and 3RU (64×68) configurations, all with UHD support, NRG delivers high-performance, 24/7/365 reliable routing in a compact, quiet platform that fits seamlessly into existing or next-generation systems.
Straightforward setup and intuitive control make deployment and day-to-day operation simple, giving engineering teams greater confidence, less complexity, and more time to focus on creating exceptional content.
Send it to set it

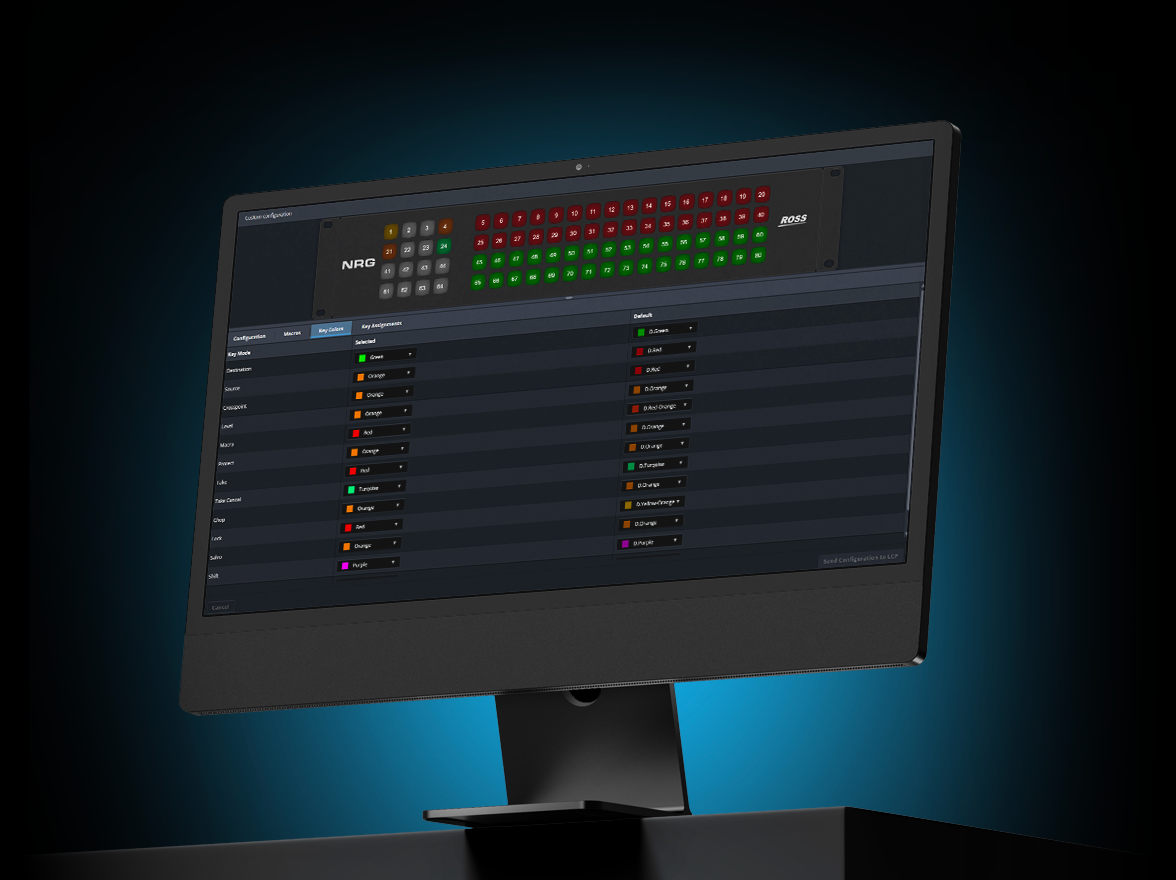

DashBoard makes NRG easy to configure, monitor and control, with fast setup, seamless facility integration and customizable soft panels for every operator.
Ready for tomorrow
NRG supports the essential formats you need including ASI, MADI and SDI – with 12 Gb/s capability as standard. Whatever your production demands now or down the road, NRG is ready to route it.
Better for your budget

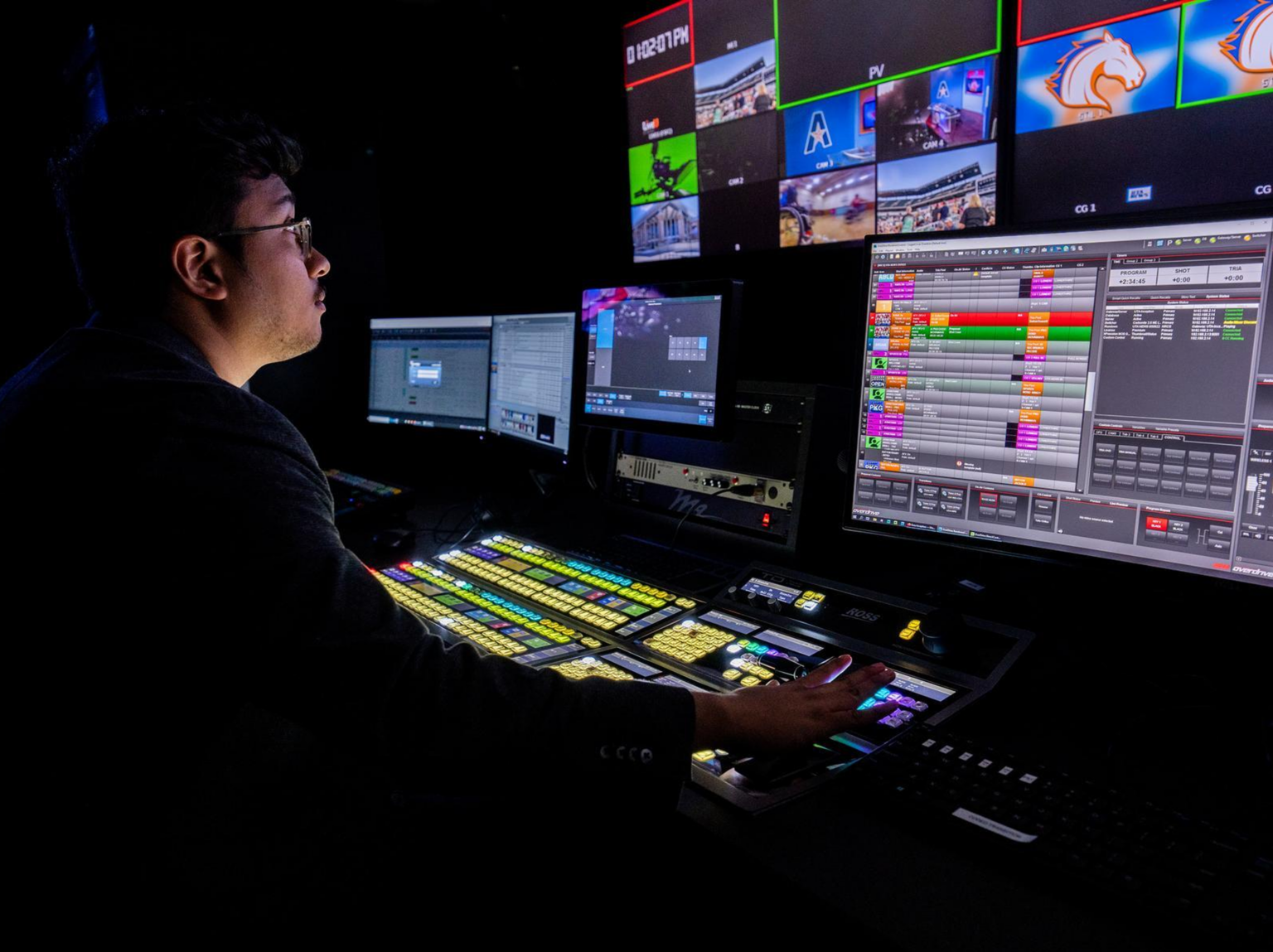

NRG delivers exceptional performance without breaking your budget. NRG is an affordable solution that doesn’t compromise on quality or reliability.
Ready for every environment
Fully loaded features
NRG combines a compact footprint with a comprehensive set of features designed to simplify routing and streamline operations.
SDI & ASI integration
Built-in multiviewer
Flexible control
Specifications
| Features | 1RU | 2RU | 3RU |
|---|---|---|---|
Size |
16×16 | 32×34 | 64×68 |
Local Panel |
Yes, optional | Yes, optional | No |
Data rates |
270mb/s-12G, ASI, MADI | 270mb/s-12G, ASI, MADI | 270mb/s-12G, ASI, MADI |
Control Protocols |
GVG Native, SW-P-08 | GVG Native, SW-P-08 | GVG Native, SW-P-08 |
Multiviewer |
Yes, one quad-split head standard | Yes, one quad-split head standard, one additional licensable | Yes, one quad-split head standard, three additional licensable |
Physical Dimensions (HxWxD) |
4.3cm | 44.7cm | 8.8cm (1.71”x17.58”x3.45”) | 8.7cm | 44.7cm | 8.8cm (3.42”x17.58”x3.45”) | 13.2cm | 44.7cm | 8.8cm (5.19”x17.58”x3.45”) |
Weight |
1.33kg (2.93lbs) | 1.97kg (4.34lbs) | 2.90kg (6.39lbs) |
Knowledge centre
Technical support
Expert help when you need it — dedicated to keeping your production running smoothly.
Product documentation
Comprehensive guides to help you get the most out of your Ross products.
Software downloads
Stay up to date with the newest features, enhancements, and software releases.
Training resources
Stay up to date with the newest features, enhancements, and software releases.
Ross Community
Ask questions, share knowledge, and connect with other Ross users.
Frequently asked questions
Yes, depending on your setup you can opt to purchase a blank front panel or local control panel.
NRG also works with Dashboard SW panels, Ross RCP’s, and 3rd Party control systems so you can easily integrate it into your existing workflow.
No, NRG supports UHD native signals standard as well as ASI so that you don’t need to change your setup.
Embedded audio will pass with the Video signals. However, there is no breakaway audio routing or discrete audio inputs. NRG is positioned as a high quality, high performance utility video router. For customers needing advanced audio capability please have them consider Ultrix.
Simplicity and cost. Being built in means requiring less physical outputs thus lowering the size of the router required. This also means less cables and external boxes simplifying systems. As a SW license it is easy and offers a completely unique feature for products in this space.
Yes. NRG is a great compliment to Ultrix for routing ASI signals or for sub-routing SDI signals. It is set up as another level in the Database and then is under the full control system.
