Rio Replay
Video Servers & Replay
From HD productions today to demanding UHD workflows tomorrow.
Your storytelling partner
Step up your game with super slow-motion replays, instant playback, and seamless highlight editing—all in one powerful system that fits effortlessly into your workflow.
Whether it’s the intensity of global competitions or the energy of local matches, capture every moment with precision.

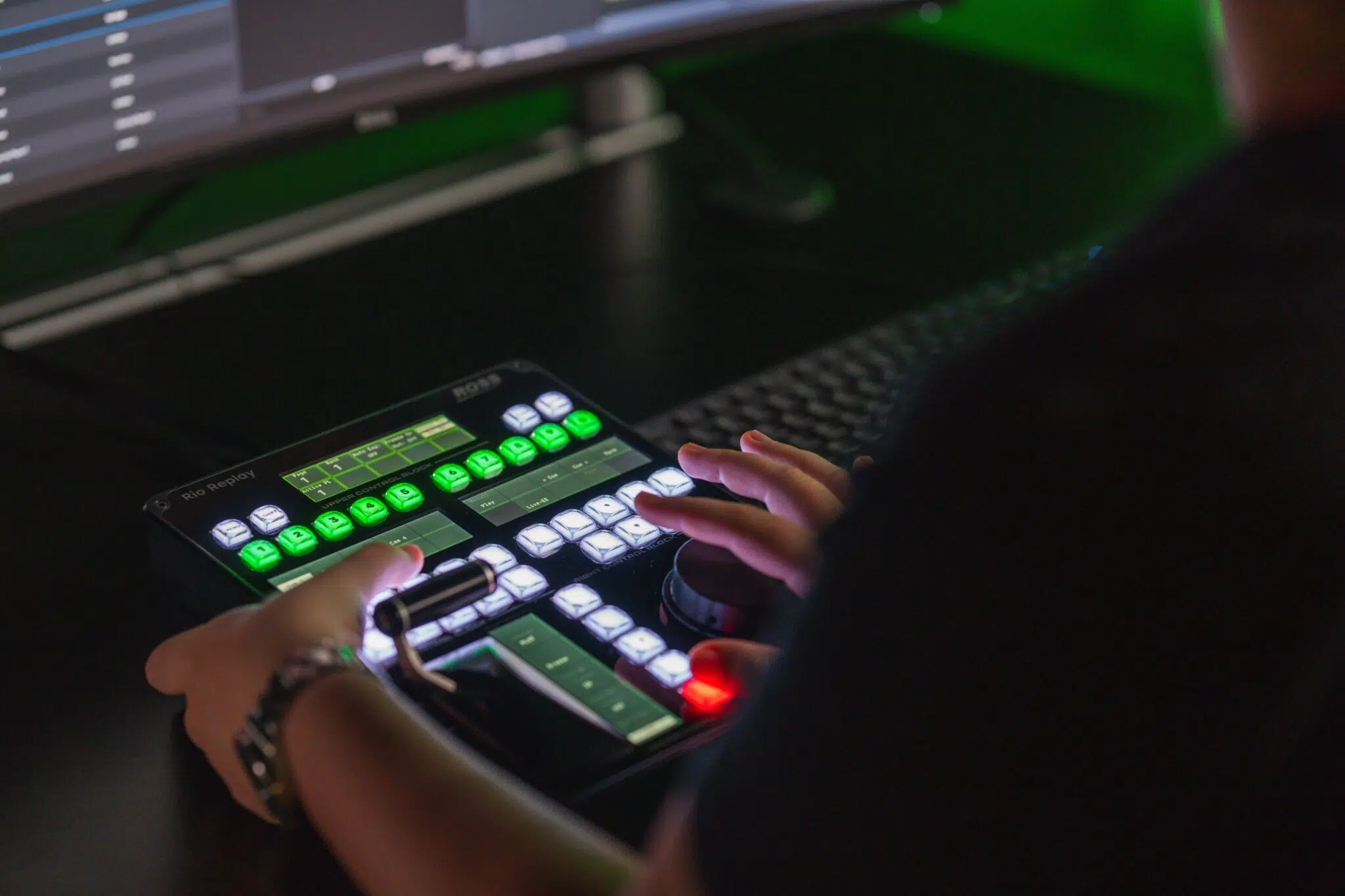

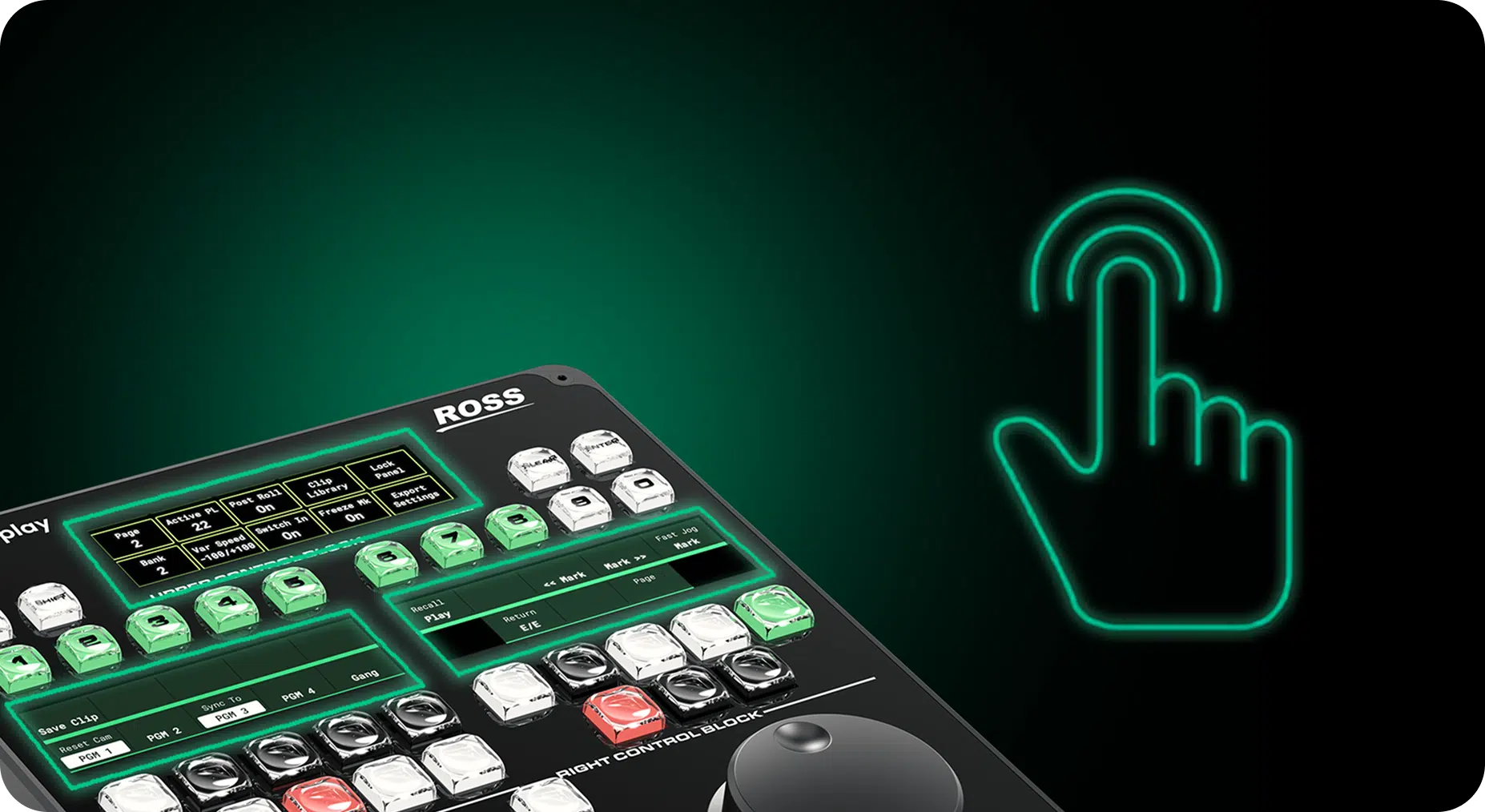

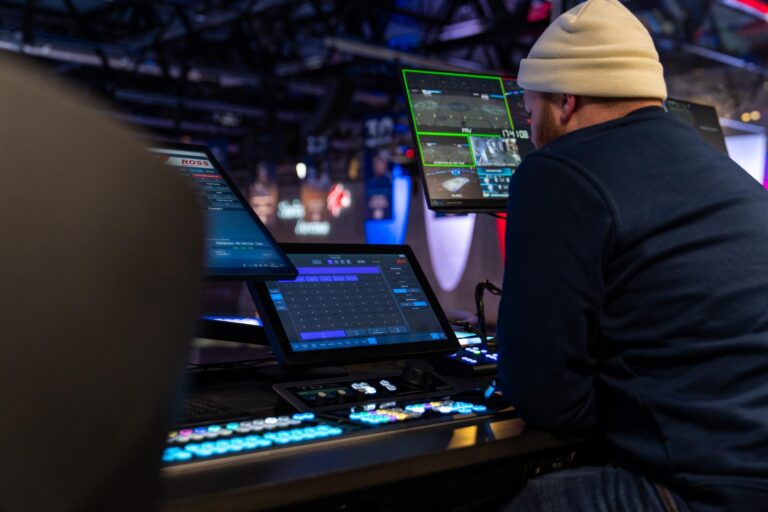

Operator-centric design

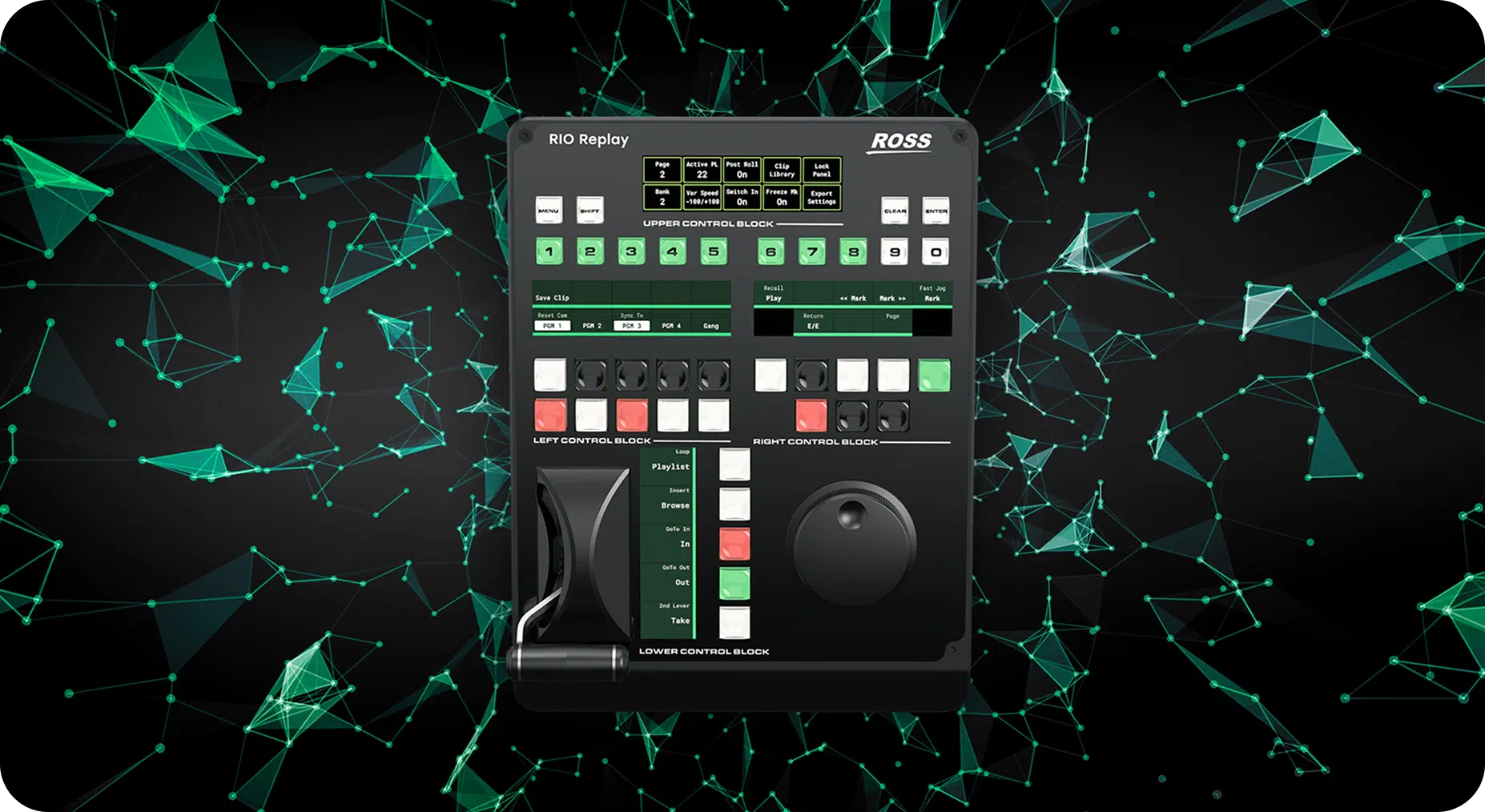

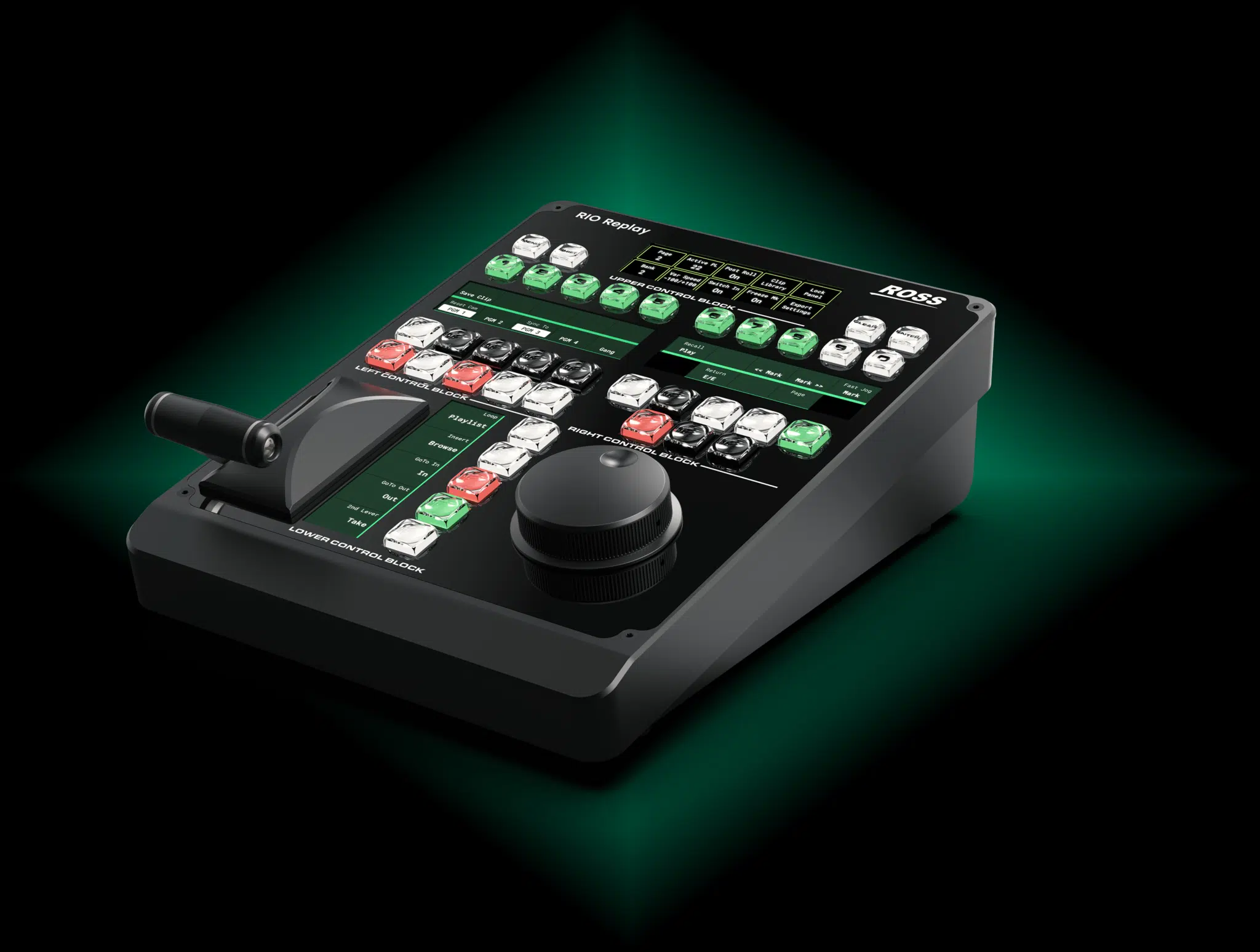

A sleek, space-saving design with customizable interface and intuitive controls, a programmable LCD touch display, and easy integration ensures quick setups and efficient workflows.
Widely compatible

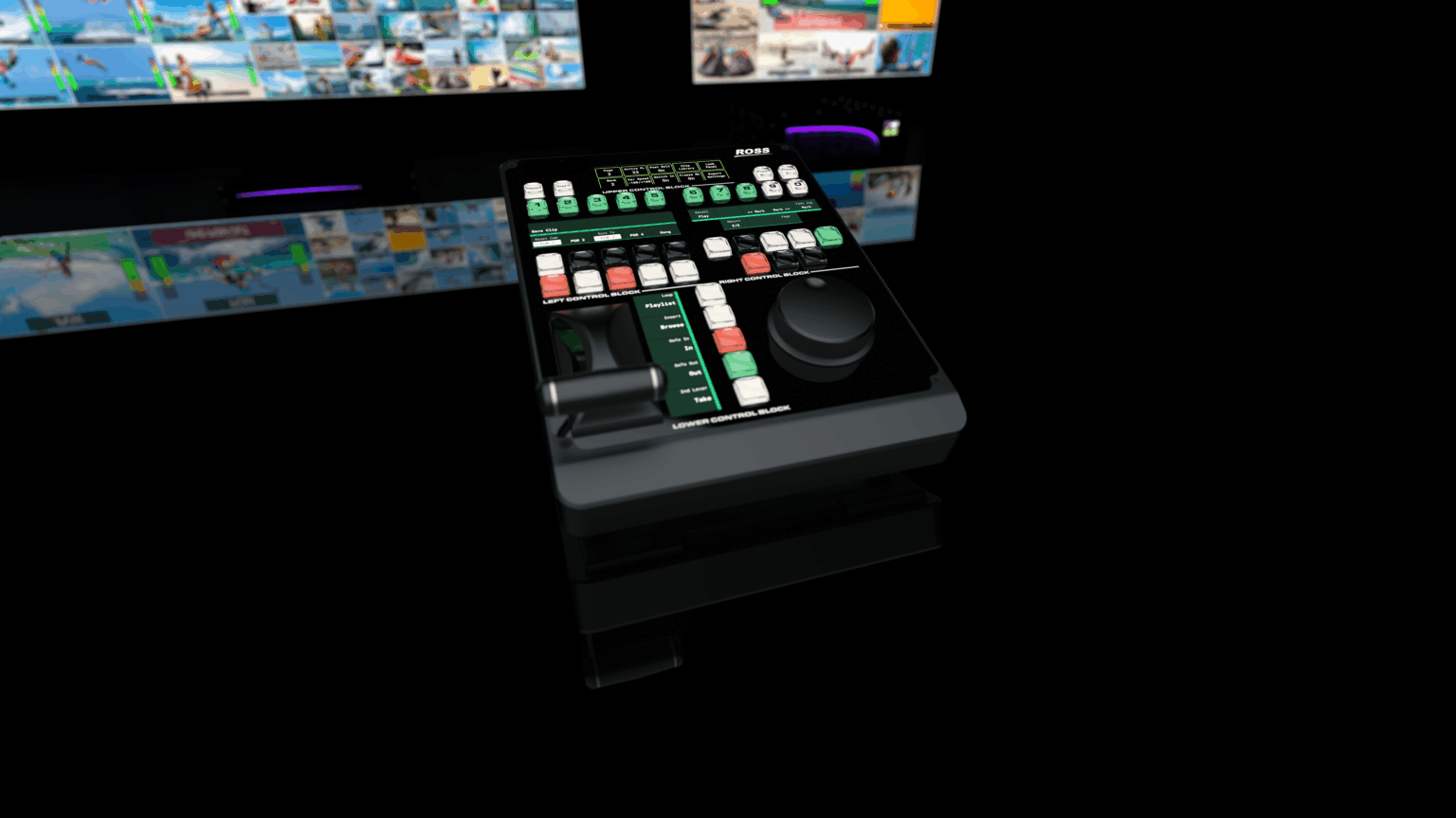

Integrates seamlessly with Ross production workflows and many third-party systems, making it easy to fit into existing live production environments.
Versatile and future-ready

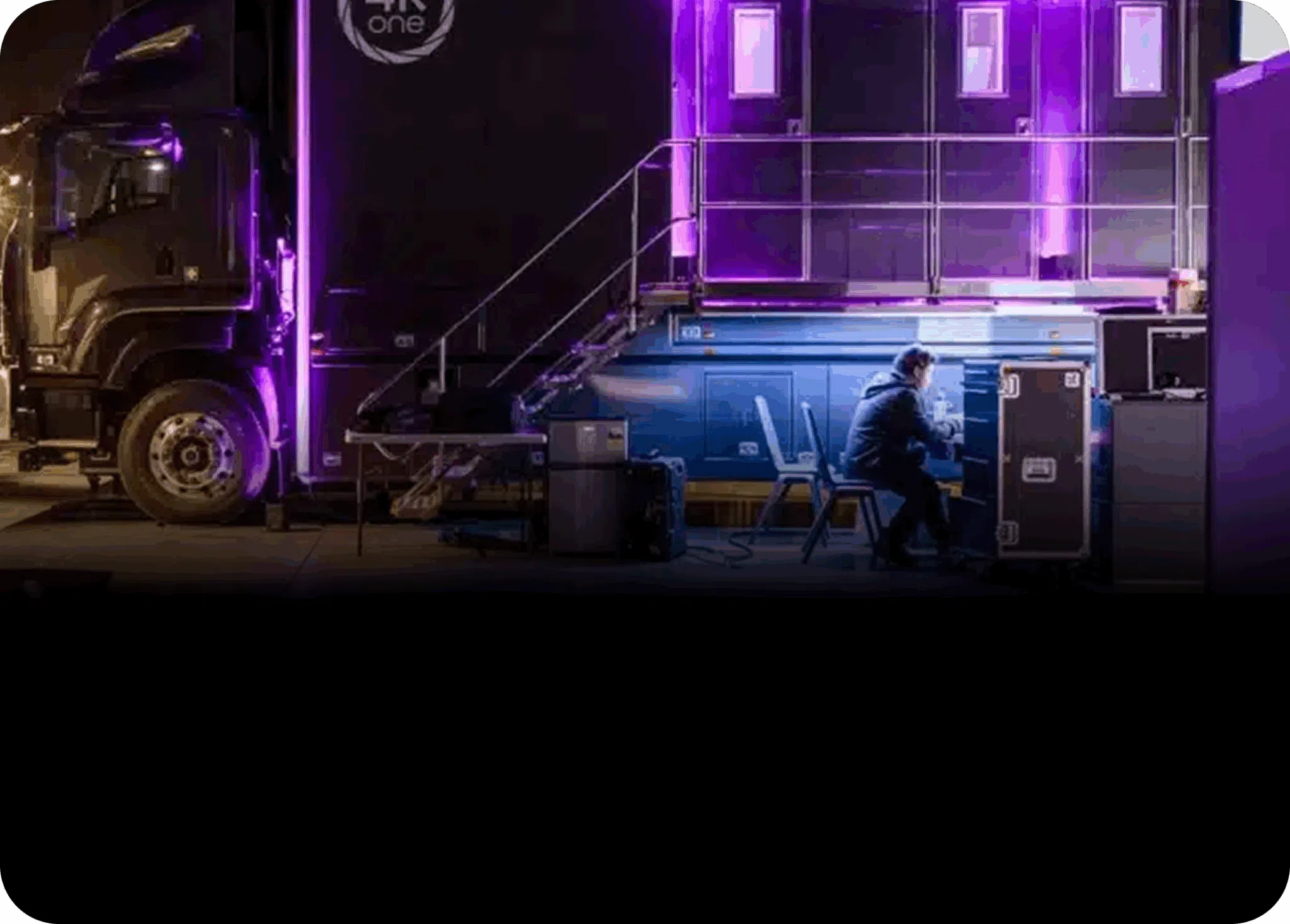

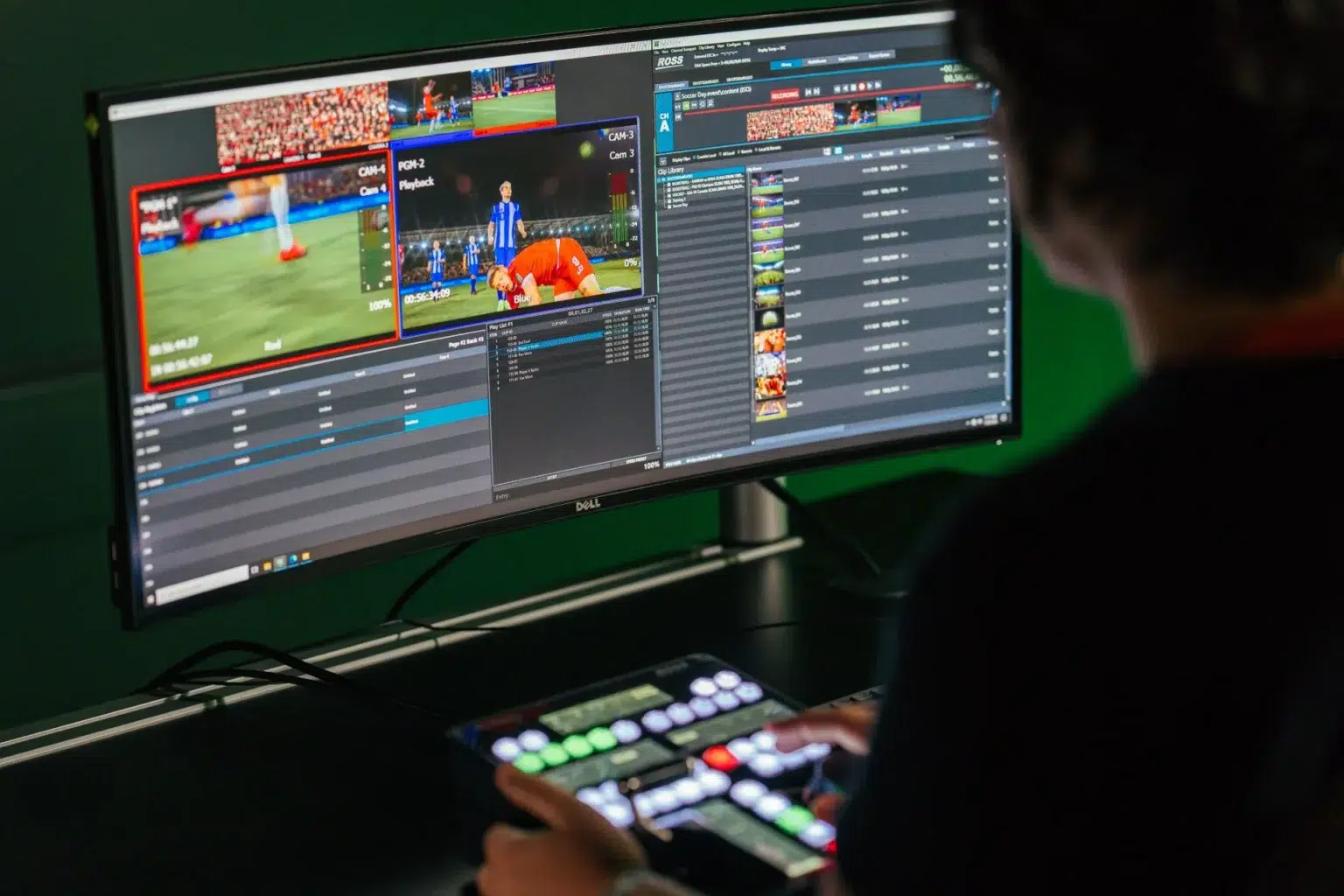

Support REMI, distributed and on-site productions with flexible deployment options that scale from HD to UHD as your production needs evolve – without changing the operator experience.

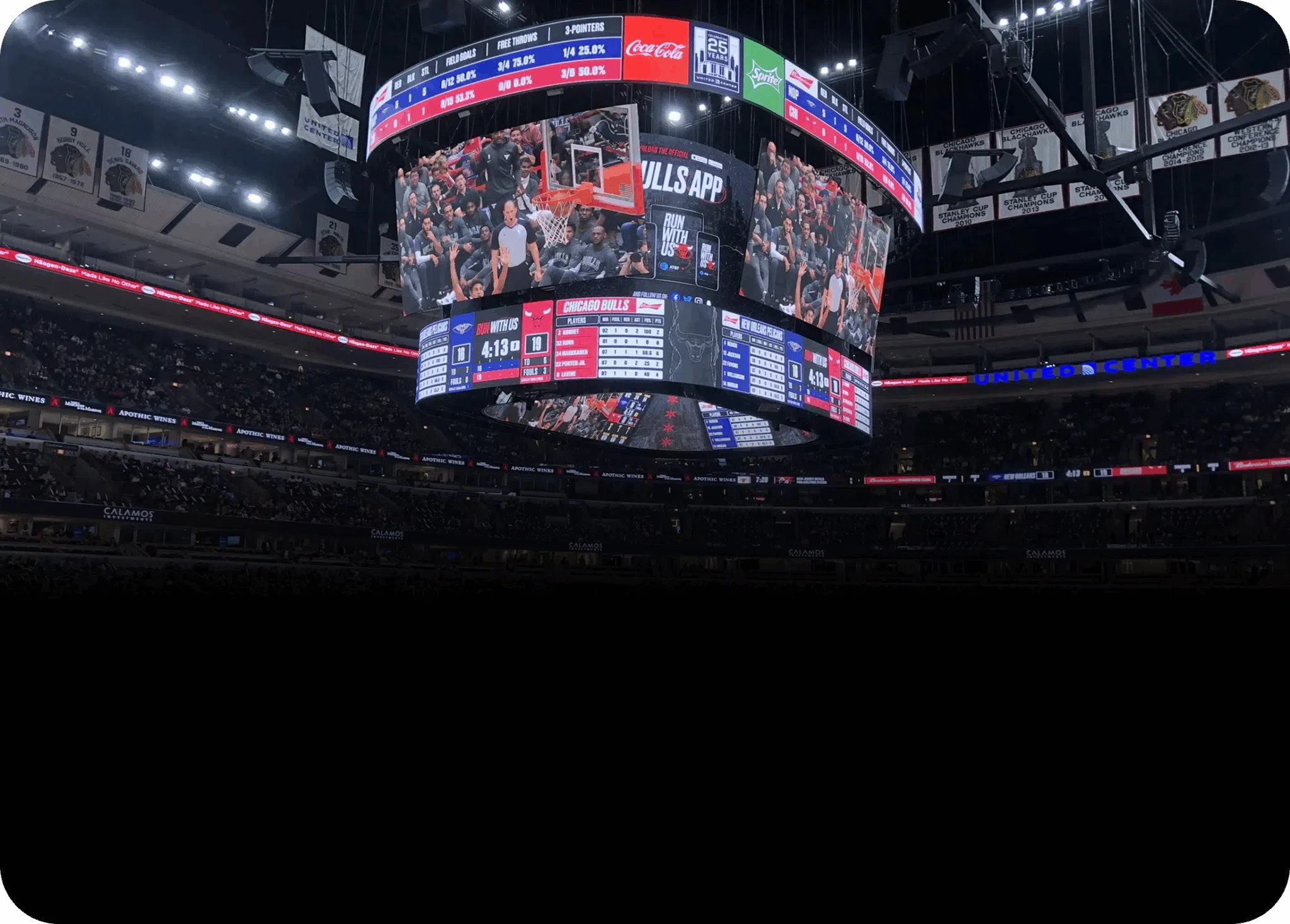

Ready for every environment
Fully loaded features
Get the full set of features and capabilities to deliver fast, flexible live replay across a range of production environments.

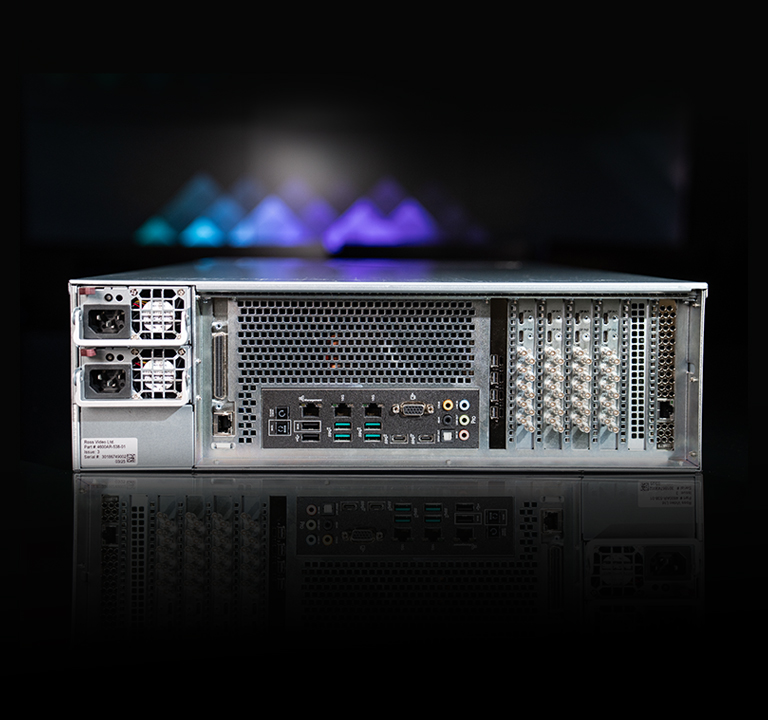

Flexible server options

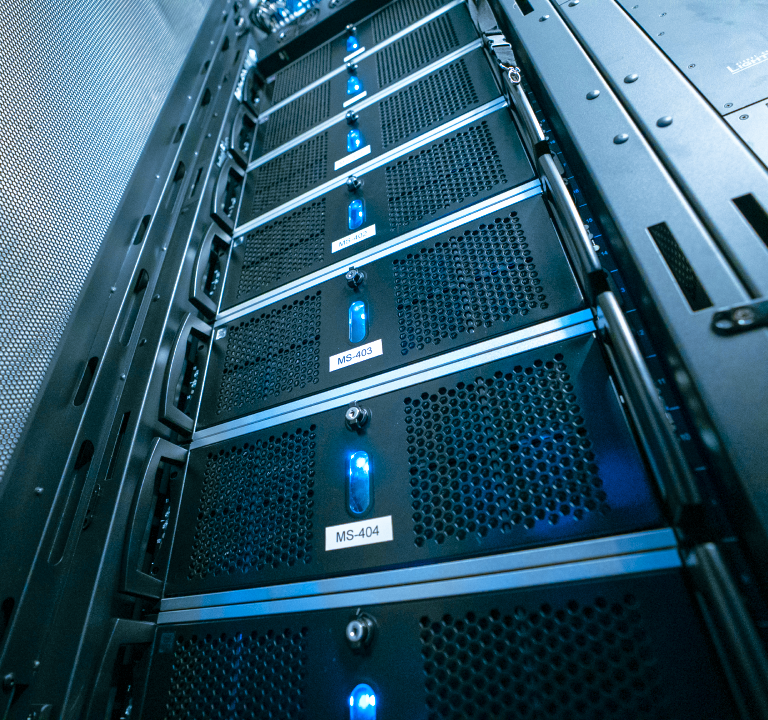

High-performance SSD storage
Low latency encoding

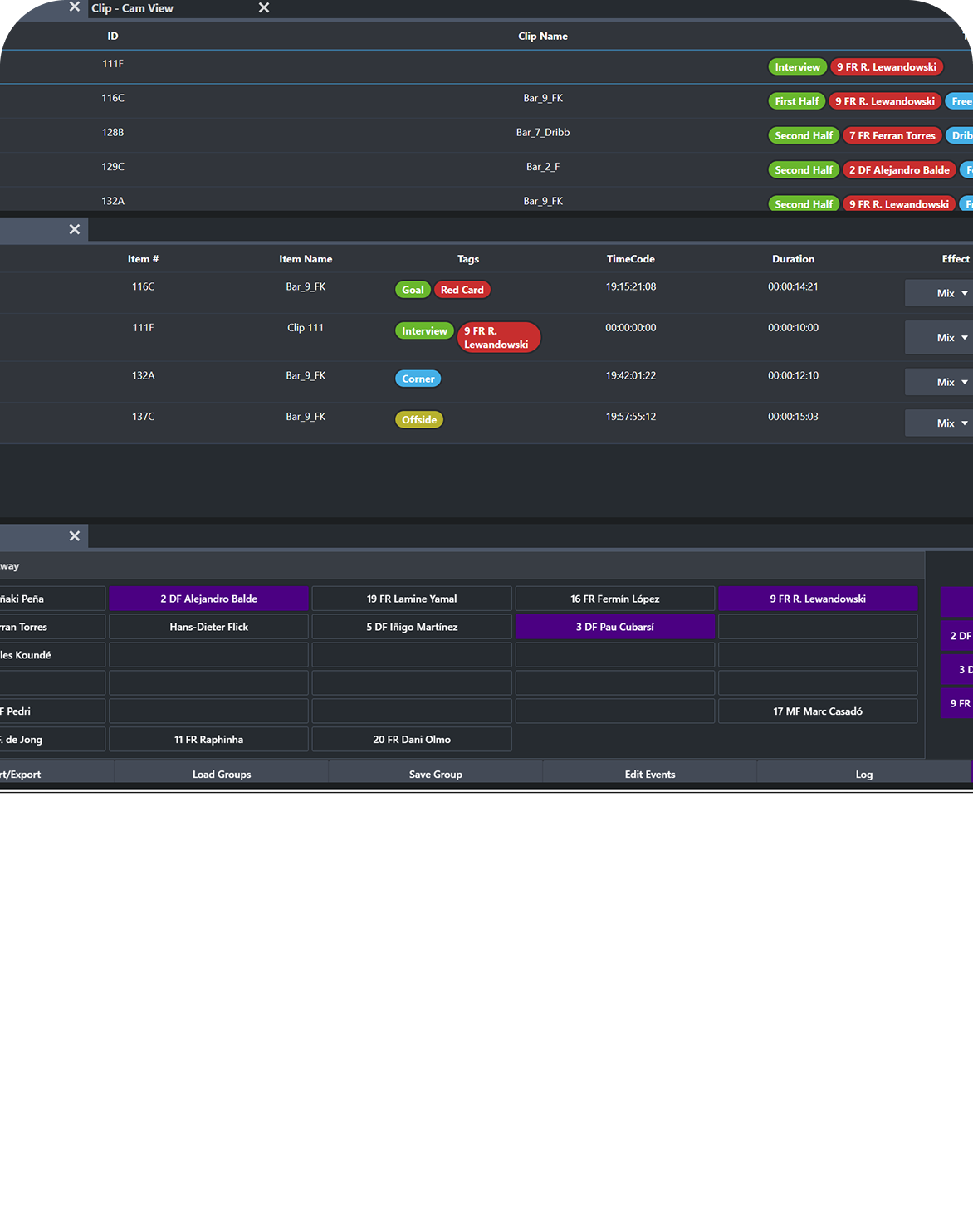

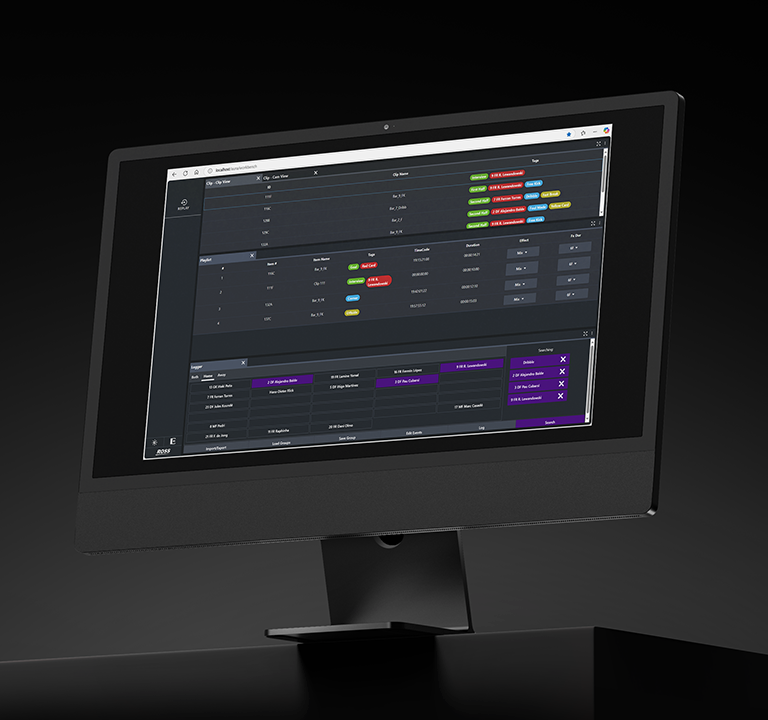

Web-based Sports Logger
Flexible operator workflows

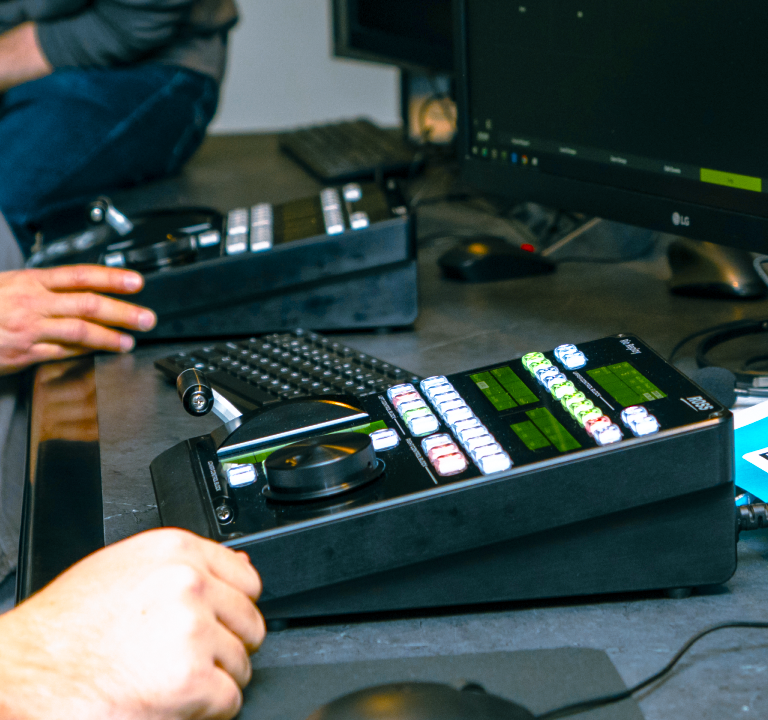

Real-time sharing

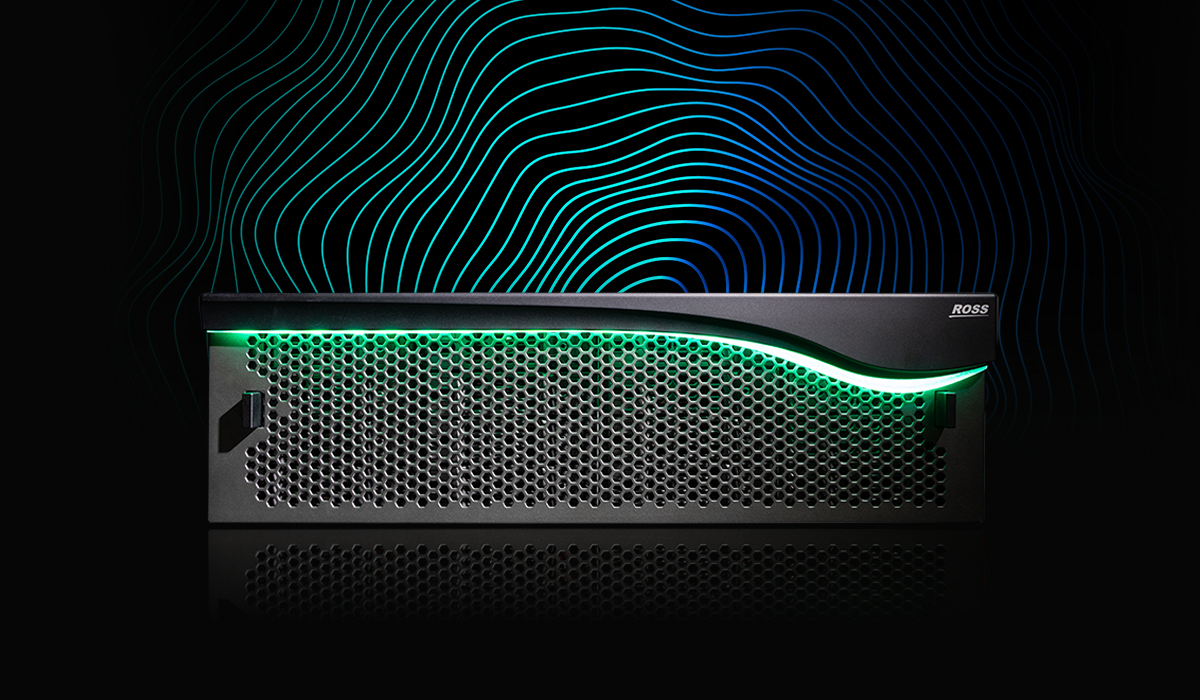

NEW: Rio XL Server

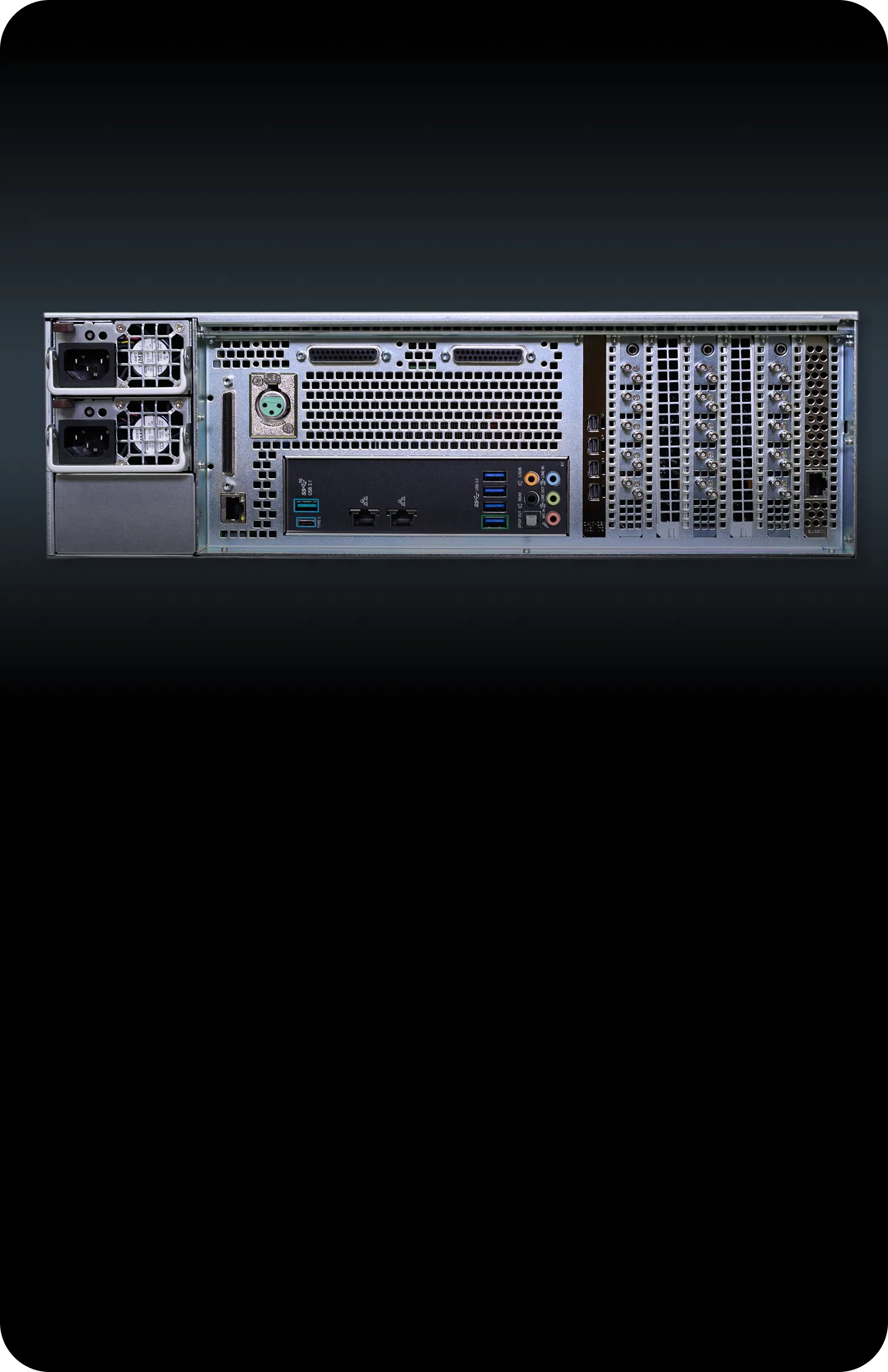

The new Rio XL Server extends the Rio Replay platform with more channels, UHD support and higher performance for larger productions while maintaining the same intuitive replay workflow operators already know.
Which Replay server is right for you?
Rio Replay is available with two server options to match your production requirements.

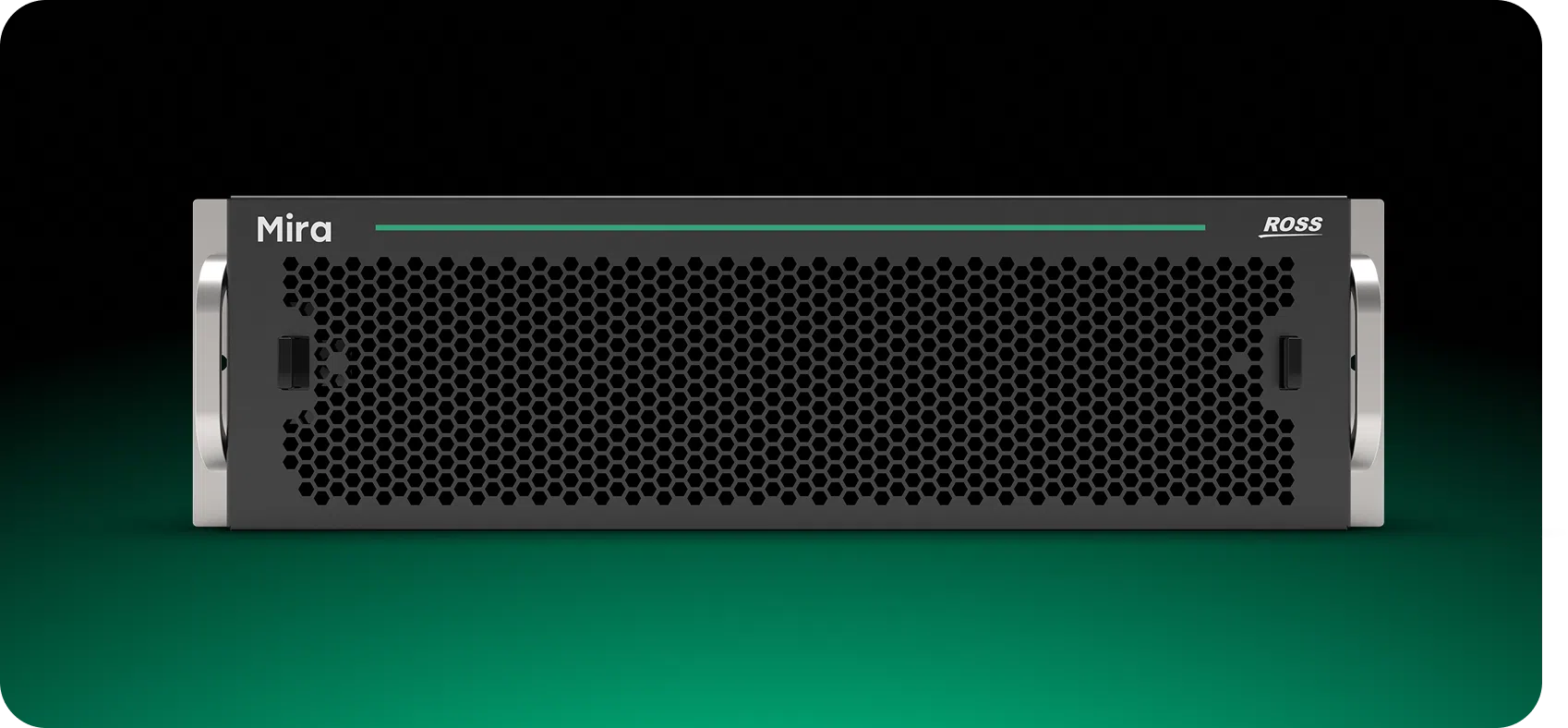

Whether you’re delivering HD productions with the Mira Replay Server or expanding into UHD with the new Rio XL Server, you’ll get the same intuitive operator experience backed by reliable Ross hardware.
| Mira 3G Replay Server | Rio XL – UHD Server | |
|---|---|---|
2 Video Card Configuration |
2 video cards, 8ch Bi-Directional HD/1080p, Replay – Any IN OUT configuration | 1080i / 1080p, 8ch IN / 8ch OUT Replay, UHD 2ch IN / 2ch OUT |
3 Video Card Configuration |
3 video cards, 12ch Bi-Directional HD/1080p, Replay – Any IN OUT configuration | 1080i / 1080p, 12ch IN / 8ch OUT Replay, UHD 4ch IN / 2ch OUT, 6ch OUT |
4 Video Card Configuration |
N/A | 1080i / 1080p, 16ch IN / 8ch OUT Replay, UHD 6ch IN / 2ch OUT, 4ch IN / 4ch OUT |
Media Storage |
15TB SSD @RAID-5, 30TB SSD @RAID-5 | 15TB SSD @RAID-5, 30TB SSD @RAID-5 |
Dual Users |
Supported | Supported |
Super-slow Motion |
Supported | Supported |
Native Recording CODEC |
AVC Intra Class 100 | HD – XAVC-I Class 100, UHD – XAVC-I Class 300 |
Knowledge centre
Technical support
Expert help when you need it — dedicated to keeping your production running smoothly.
Product documentation
Comprehensive guides to help you get the most out of your Ross products.
Software downloads
Stay up to date with the newest features, enhancements, and software releases.
Training resources
Stay up to date with the newest features, enhancements, and software releases.
Ross Community
Ask questions, share knowledge, and connect with other Ross users.
Frequently asked questions
Rio Replay is a professional replay platform for live sports and event production. It combines an intuitive, operator-focused replay panel with flexible server options to support productions from HD through to UHD.
Rio XL is a new 3RU server that expands Rio Replay into larger HD and UHD productions. It supports up to 16 HD inputs with 8 replay outputs, or up to 8 UHD channels, along with super slow motion and XAVC-I support.
Both support the Rio Replay panel and its intuitive operator workflow, but are designed for different production requirements. Mira supports HD and 1080p workflows, while Rio XL expands Rio Replay into larger HD and UHD productions with higher channel capacity and additional capabilities.

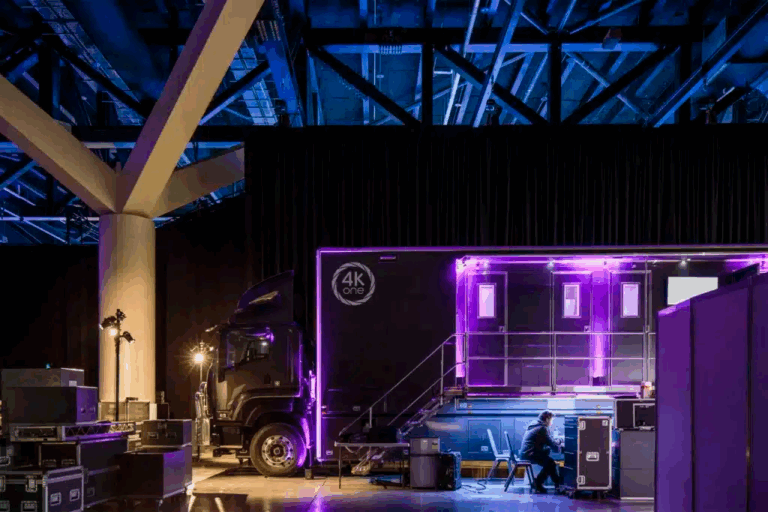

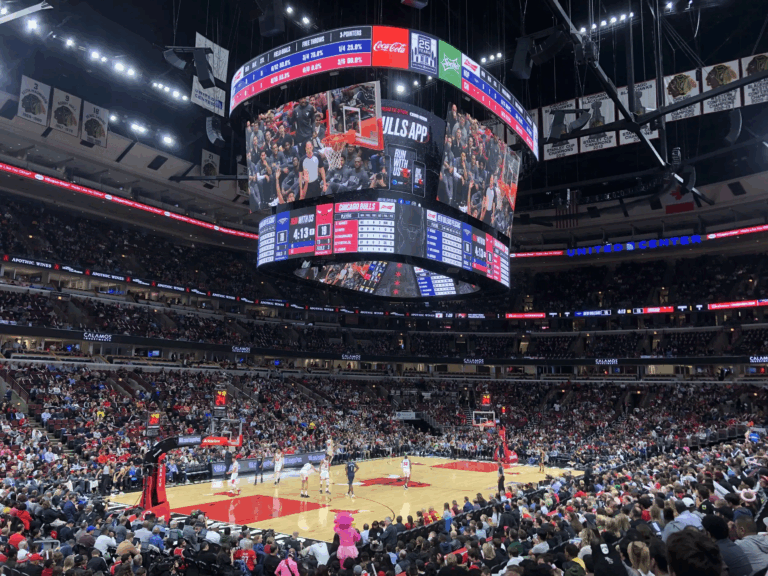

Rio Replay is designed for broadcasters, sports production teams, schools and colleges, venues, stadiums and arenas, and OB trucks. Its flexible server options allow customers to choose the configuration that best fits their production requirements.
Rio Replay combines professional replay capabilities with an intuitive operator experience, making it easier for teams to create impactful live sports content without unnecessary complexity. Its flexible configurations support productions from schools and venues through to larger broadcast and sports environments.
