RCM-8120 Remote Control Modules

RCM-8120

Remote Control Modules

Remote control modules offer standard GPI/O interfaces to control most GPI/O enabled devices, as well as a logic control signal for use with the DSS-8224 Digital Video Switch and the AVS-8764 AES / Analog Video Switch.

The RCM family of remote control modules provide easy control over the openGear® family of switches in a space saving design.

2 or 4 button models are available for control of the DSS-8224 and the AVS-8624 switches using a discrete logic control connect to the cards using standard BNC video cable. GPI/O is also available for interfacing with many other standard GPI/O controlled devices.

All modules fit into a convenient 1RU, 19” rack panel.

RCM-8120
Remote Control Module (4 Buttons): controls DSS-8224 and AVS-8764, configurable for 4×1 or Dual 2×1 operation

RCM-8120-1
Remote Control Module (2 Buttons): controls DSS-8224 and AVS-8764

MRP-8120
Mounting Rack Panel (Holds RCM-8120 & RCM-8120-1): 1RU control panel, holds up to 5 RCM-8120 or RCM-8120-1 Control Modules

BPM-8120
Blank Panel (Cover Plate): blank cover plate for MRP-8120, covers control positions

  • 2 or 4 button control modules
  • Discrete logic and GPI/O interfaces
  • 19” 1RU mounting rack panel
  • Up to 5 modules in a 1RU rack panel
  • Blank plates available for rack panel
  • 5-year transferable warranty

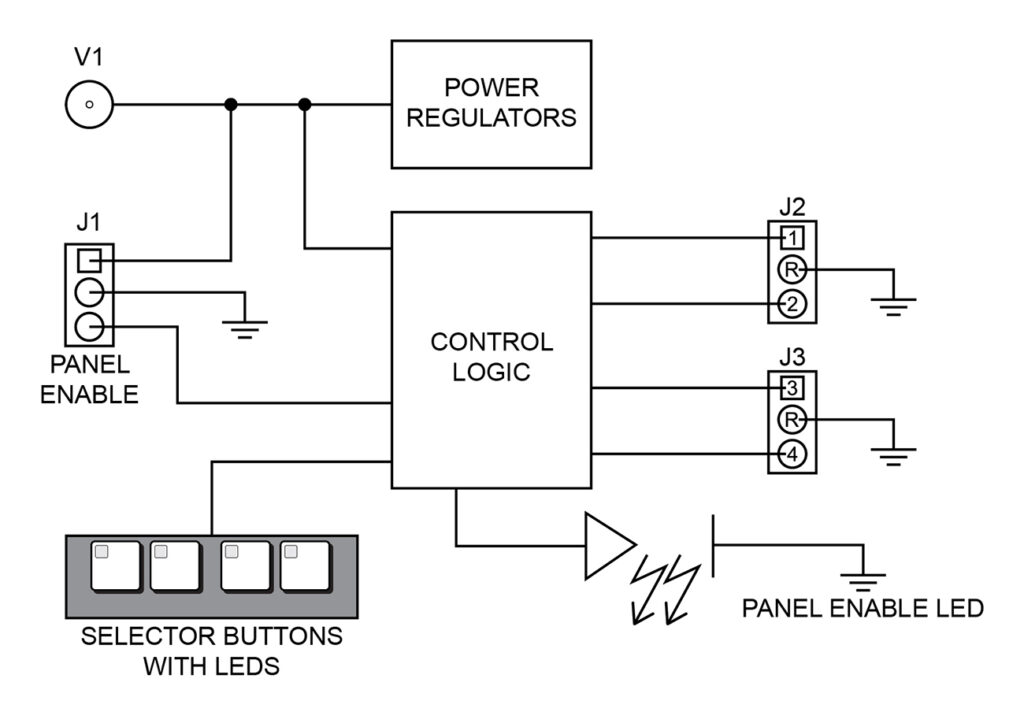

RCM-8120 4-Button Remote Control Module
RCM-8120-1 2-Button Remote Control Module
MRP-8120 1RU Mounting Rack Panel
BPM-8120 Blank Panel for MRP-8120
