Mira Express
Specifications
| BASE MODELS | SDI CHANNEL I /O |
|---|---|
| Mira Express | (4) Video+Audio SDI-IN (2) Video+Audio SDI-OUT (1) Count-Down / Quad Viewer SDI-OUT |
| MEDIA STORAGE OPTIONS | |
|---|---|
| Clips | SSD RAID-0 720p/1080i @ 100Mb/s = 9-Hours |
| Option – 01 | 3.8TB HDD @ RAID-0 = 76-Hours in 720p/1080i |
| Option – 02 | 7.6TB HDD @ RAID-0 = 152-Hours in 720p/1080i |
| NATIVE RECORDING CODEC |
|---|
| DVCPRO-HD |
| STANDARD FEATURES |
|---|
| Real-time Hardware Media Processing Engines Ensures Rock-Solid Record & Playout Performance |
| 4-Record + 2-Playout SDI Channels |
| Removeable SSD Media Storage |

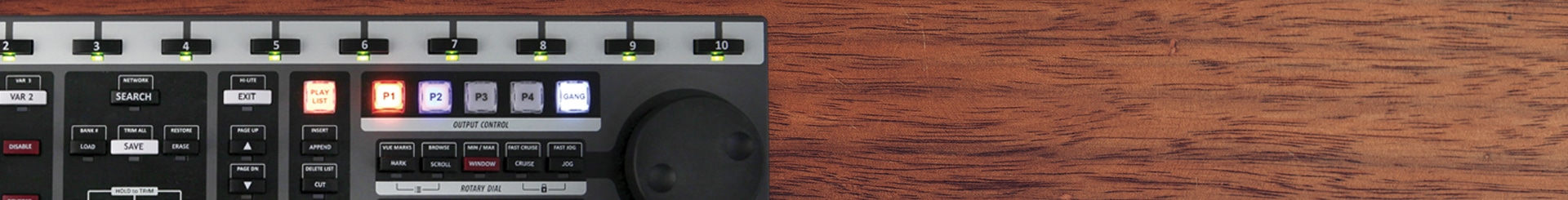

| Mira Control Surface T-Bar Slow-Motion and Rotary Dial Jog/Shuttle controls |
| Mira Explorer Application: • Record & Play Transports • Clip Management • Clip Trimming • Playlists with Advanced & Flexible Playout Features • Timecode Chase clip lists with precise playout dictated by incoming LTC • Media File Export • Desktop Display MultiViewer |
| Mira Replay Application: • Multi-Angle Clipping • Clip Naming, Tagging, & Trimming • Playlists with Advanced & Flexible Playout Features • Clips & Playlist Management • PGM Players Control / Slow-Motion Replay • Media File Export |
| Media File Import Application: • Media File Transcoding • Multiple Watch Folders |
| Mira Config Application: • System Configurations • Audio Input/Output Router • Channel User Labels • On-Air Tally Setup |
| Integrated Quad-Viewer / Count-Down on HD-SDI Output with On-Air Tally Indicators |
| Real-time clip sharing between multiple Mira Express servers via Gigabit Ethernet networks |
| High-speed Playlist melts to multiple Export Destinations Before, During, or After Event |
| Embedded and AES uncompressed Digital Audio I/Os |
| Dual 1G Ethernet Ports |
| Ross DashBoard & Native Ethernet API for programming custom control interfaces |
| Windows† 10 Enterprise Edition 2021 TSC Operating System Preinstalled and licensed on SSD System Disk |
| Hot-Swap Dual Redundant Chassis Power Supplies |
| † Windows® is a registered trademark of Microsoft Corporation |
| SUPPORTED VIDEO STANDARDS |
|---|
| 525i /59.94 625i /50 720p /50 /59.94 1080i /50 /59.94 |
| ANALOG REFERENCE INPUT | |
|---|---|
| Terminating Tri-level HD | Composite Analog SD Black-Burst |
(1) Female HD-BNC* 75Ω |
| DIGITAL VIDEO INPUTS | |
|---|---|
| HD Video: 525i | 625i HD-SDI SMPTE-259M (270 Mb/s @ 8-Bits) Embedded Digital Audio (8-Tracks | 48kHz @ 24-bits) HD Video: 720p | 1080i HD-SDI SMPTE-292M (1.5 Gb/s @ 8-Bits) Embedded Digital Audio (8-Tracks | 48kHz @ 24-bits) |
(4) Female BNC 75Ω |
| DIGITAL VIDEO OUTPUTS | |
|---|---|
| HD Video: 525i | 625i HD-SDI SMPTE-259M (270 Mb/s @ 8-Bits) Embedded Digital Audio (8-Tracks | 48kHz @ 24-bits) HD Video: 720p | 1080i HD-SDI SMPTE-292M (1.5 Gb/s @ 8-Bits) Embedded Digital Audio (8-Tracks | 48kHz @ 24-bits) |
(2) Female BNC 75Ω |
| * HD-BNC = High-Density BNC | ‘HD-BNC to BNC’ Adapter Cable provided for each HD-BNC connector | |
| COUNT-DOWN / QUAD-VIEWER DIGITAL | |
|---|---|
| HD Video: 1080i HD-SDI SMPTE-292M (1.5 Gb/s @ 8-Bits) |
(1) Female BNC 75Ω |
| AES DIGITAL AUDIO INPUT/OUTPUT | |
|---|---|
| IN = (8) Mono Tracks (4 Stereo Pairs) OUT = (8) Mono Tracks (4 Stereo Pairs) TASCAM DIGITAL / AES-59 (48kHz @ 24-bits) |
(2) Female D25 (Breakout Cables NOT included) |
| ANALOG AUDIO MONITORING OUTPUT | |
|---|---|
| Unbalanced Line-level @ –10 dBV User-Selectable: To any Video Channel’s Stereo Audio Tracks |
(1) Female 3.5mm |
| ANALOG LTC INPUT | |
|---|---|
| LTC Unbalanced SMPTE-12M / Time of Day Timecode |
(1) Female XLR |
| DATA / CONTROL | |
|---|---|
| Computer Display Ports Minimum 1920×1080 Native Resolution Computer Display required for Mira Express User Interface |
(1) Female DisplayPort (1) Female HDMI (1) Female D15 Analog VGA |
| RS-422 Ports Protocols: Sony / Louth VDCP / Odetics |
(2) Female D9 |
| 1-Gigabit Ethernet Ports 10-T | 100-T | 1000-T | 10000-T Protocols: AMP | Louth VDCP | Native Ethernet API |
(2) Female RJ45 |
| HighSpeed USB 2.0 Ports @ up to 480 Mb/s Speeds | (2) Female USB Type-A |
| SuperSpeed USB 3.1 Ports @ up to 5-Gigabit Speeds | (6) Female USB Type-A |
| QWERTY Keyboard & Mouse (1) Set included with each Mira+ |
Male USB-A |
| †Sony is a registered trademark of Sony Corporation | |
| TRIA+ CHASSIS PHYSICAL & ELECTRICAL | |
|---|---|
| Dimensions | 2RU Standard Height & Width Depth = 16.0 in (40 cm) Rackmount Slide Kit Included |
| Maximum Weight | <30 lbs. (13.6 kg) |
| AC Power Requirements | Input AC Voltage Range (Auto-Sensing) • 100VAC–240VAC / 50Hz–60Hz Input AC Power Consumption • @ 100–127VAC = 6A–4.7A • @ 200–240VAC = 3A–2.5A |
| MIRA CONTROL SURFACE PHYSICAL & ELECTRICAL | |
|---|---|
| Dimensions | Height at Front = 2.0 in (5.08cm) Height at Rear = 3.75 in (9.5cm) Width = 17.5 in (44.5cm) Depth = 5.4 in (13.7cm) |
| Maximum Weight | <6 lbs. (2.7 kg) |
| Maximum Power | Supplied from Mira Express chassis Ethernet POE: Output Voltage = 56V DC 0.536A 30W |
| SAFETY & EMISSIONS |
|---|
| TUV |
| FCC Class A |
| CE |
