Dual 12G/6G/3G/HD/SD/ASI/MADI Distribution Amplifier – 2in/10out
The DRA-8902A is a high-performance distribution amplifier for digital video signals, designed for openGear frames. It supports a wide range of formats including SDI from 270Mb/s to 12Gb/s, plus ASI and MADI, making it a versatile solution for any video facility infrastructure.
Built for premium signal integrity, the DRA-8902A delivers long cable equalization on the input and automatic reclocking on all outputs, with auto-sensing of the incoming rate. Status is available at a glance through local card-edge LEDs, while DashBoard provides full configuration, monitoring, and control.

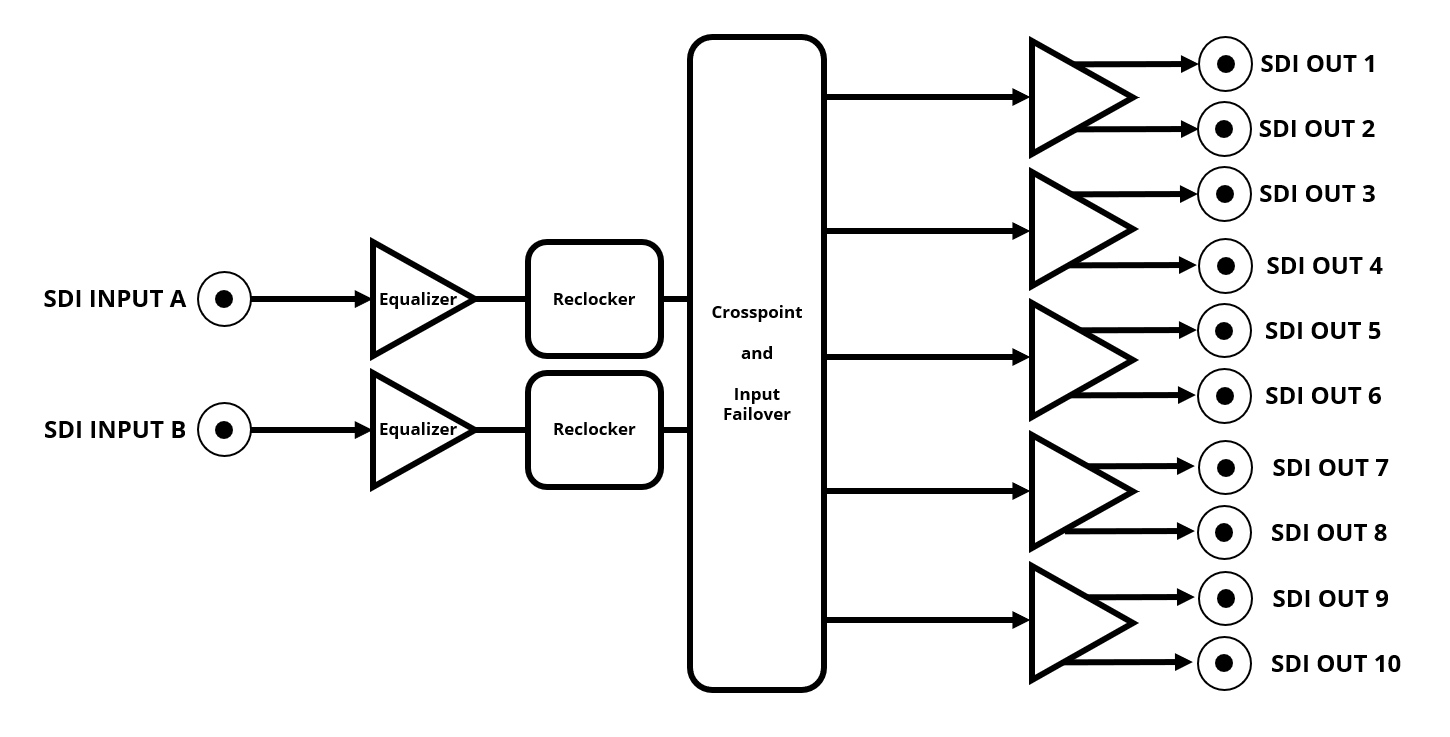

The DRA-8902A provides two signal inputs and an internal crosspoint that connects them to the outputs. Outputs can be statically connected to either input or configured for automatic basic failover switching. If the selected primary input is lost, the card automatically switches to the alternate input. The DRA-8902A goes beyond basic distribution, adding flexible source selection and improved signal resilience.
How to select the right failover switch for your application: Selecting SDI Failover Switches
- Wide signal support
Handles SDI from 270Mb/s to 12Gb/s, plus DVB-ASI and MADI for flexible deployment across modern and legacy infrastructures. - Non-inverting outputs for ASI
Outputs are non-inverting to enable full utilization in DVB-ASI distribution applications. - Passive rear module, hot-swappable card

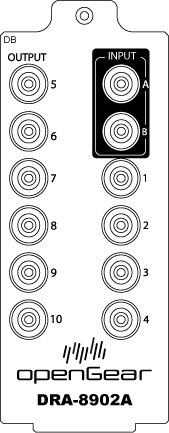

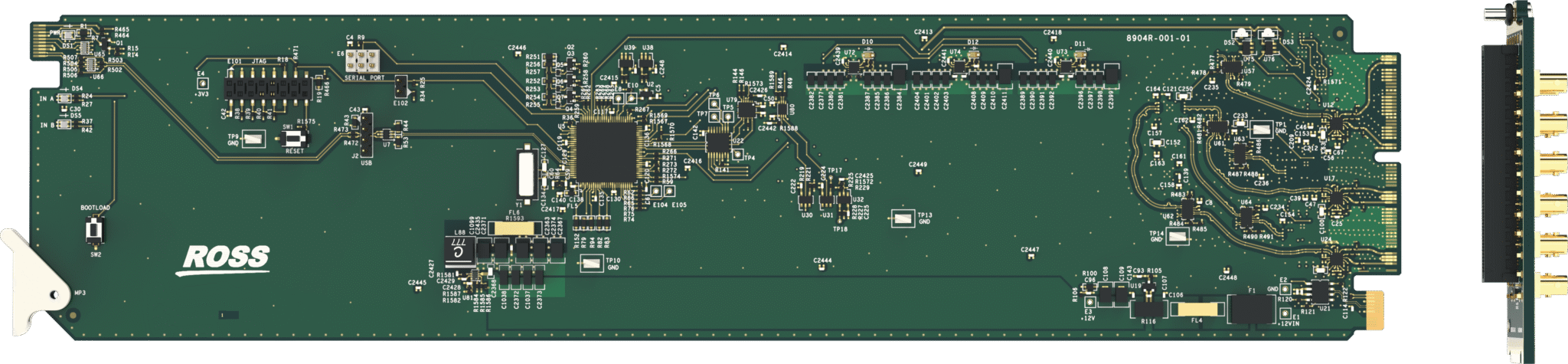

The rear module is completely passive, enabling the active card to be hot-swapped from the front of the openGear frame without de-cabling. - Dual inputs with manual source selection or basic automatic failover
Choose between the two input sources manually, or enable basic automatic failover. Failover is triggered when the primary signal is lost or can no longer be locked and reclocked. Each pair of outputs may be independently configured for static connection to either input or automatic failover. - Long-reach input equalization
Excellent input equalizer performance helps maintain signal integrity across long cable runs. - Automatic rate detection with reclocking on all outputs
Auto-senses the incoming rate and applies automatic reclocking, delivering clean, stable signals to the outputs. - High density
Install up to 10x 2in/10out distribution amplifiers in a 2RU openGear frame. - At-a-glance status plus DashBoard control
Card-edge LEDs show key status information, including card status and input signal lock. Full monitoring and configuration is available in DashBoard. - 5-year transferable warranty
| ORDERING CODE | DESCRIPTION |
|---|---|
|
DRA-8902A-R3
|
Dual Channel 12G/6G/3G/HD/SD/ASI/MADI Distribution Amplifier with Full Rear Module (2in/10out)
VIEW REAR MODULE |
| SDI Input | |
|---|---|
|
Number
|
2
|
|
Connector
|
HDBNC
|
|
Supported Standards and Rates
|
MADI (AES10-2008): 125Mbs
SD-SDI (SMPTE 259M): 270Mbps DVB-ASI: 270Mbs HD-SDI (SMPTE 292M): 1.485Gbps 3G-SDI (SMPTE 424M): 2.97Gbps 6G-SDI (SMPTE 2081): 5.94Gbps 12G-SDI (SMPTE 2082): 11.88Gbps |
|
Impedance
|
75Ω
|
|
Equalization (Belden 1694A Cable)
|
>430m (1410ft) @ 270Mbps
>200m (656ft) @ 1.485Gbps >150m (492ft) @ 2.97Gbps >80m (262ft) @ 5.94Gbps >60m (197ft) @ 11.88Gbps |
|
Return Loss
|
>15dB to 1.485GHz
>10dB to 2.97GHz >7dB to 5.94GHz >4dB to 11.88GHz |
| SDI Output | |
|---|---|
|
Number
|
10
All outputs are non-inverting |
|
Connector
|
HDBNC
|
|
Supported Standards and Rates
|
MADI (AES10-2008): 125Mbs
SD-SDI (SMPTE 259M): 270Mbps DVB-ASI: 270Mbs HD-SDI (SMPTE 292M): 1.485Gbps 3G-SDI (SMPTE 424M): 2.97Gbps 6G-SDI (SMPTE 2081): 5.94Gbps 12G-SDI (SMPTE 2082): 11.88Gbps |
|
Impedance
|
75Ω
|
|
Return Loss
|
>15dB to 1.485GHz
>10dB to 2.97GHz >7dB to 5.94GHz >4dB to 11.88GHz |
|
Rise and Fall Times
|
MADI: 1.0-3.0nS, <0.5nS difference
270Mbps: 0.4-1.5nS, <0.5nS difference 1.485Gbps: <270ps, <100ps difference 2.97Gbps: <135ps, <50ps difference 5.94Gbps: <80ps, <30ps difference 11.88Gbps: <45ps, <18ps difference |
|
Jitter
|
MADI: <2.0UI (<4.0nS)
270Mbps: <0.2UI, jitter measured 10Hz-1kHz 1.485Gbps: <1.0UI jitter measured 10Hz-100kHz, <0.2UI above 100kHz 2.97Gbps: <1.0UI jitter measured 10Hz-100kHz, <0.3UI above 100kHz 5.94Gbps: <2.0UI jitter measured 10Hz-100kHz, <0.3UI above 100kHz, band limit @594MHz 11.88Gbps: <2.0UI jitter measured 10Hz-100kHz, <0.3UI above 100kHz, band limit @1188MHz |
|
Level
|
800mV ±10%
|
|
DC Offset
|
0V ±50mV (MADI is 400mV +/- 10%)
|
|
Overshoot
|
<10%
|
| Physical and Power | |
|---|---|
|
Power Consumption
|
<5.6W
|
|
Environmental
|
0-40⁰C operational<95% RH, non-condensing
|
|
Physical
|
Compatible with OG3-FR and OGX-FR frames with either advanced or simple network controller installed.
|
|
