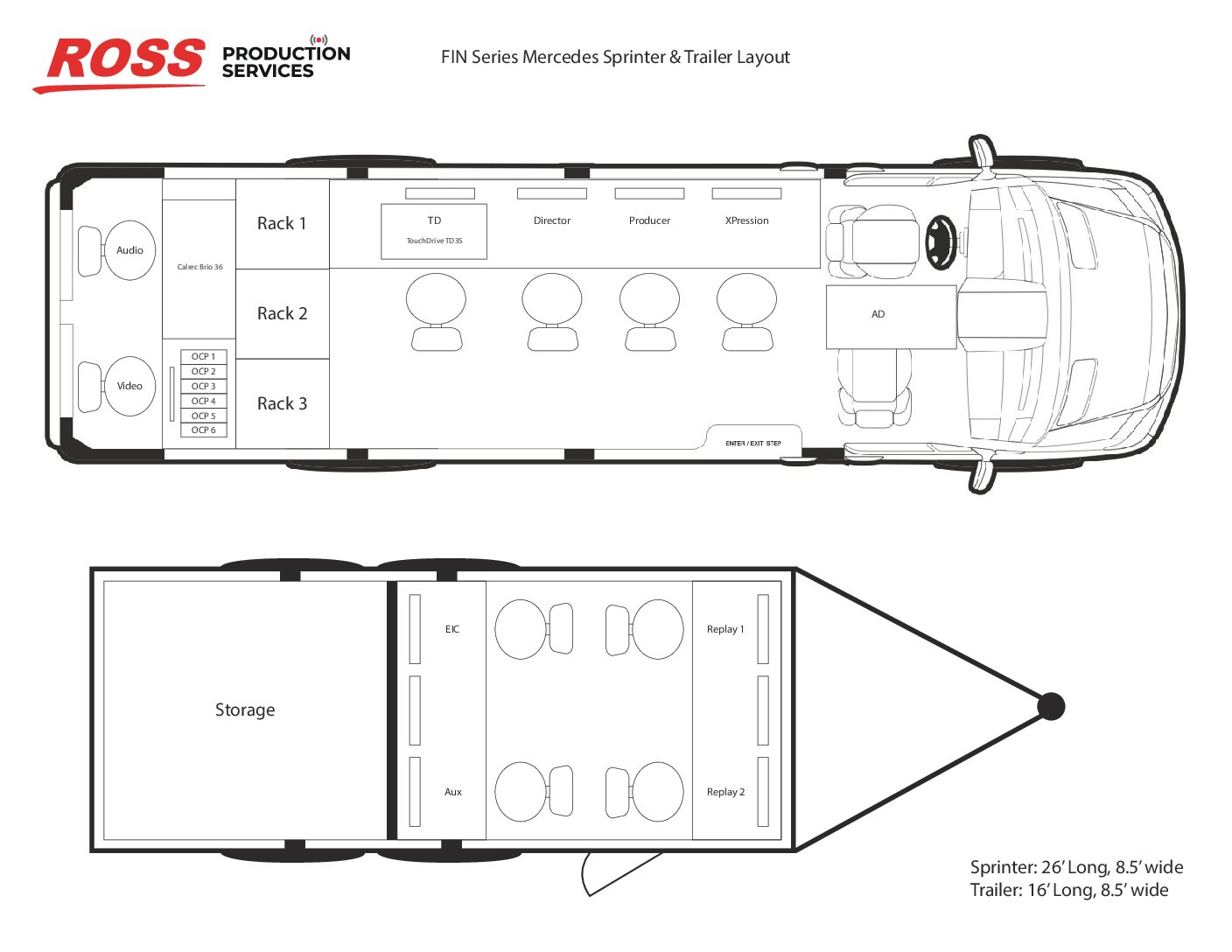

FIN1

  • 1x Ross Carbonite ULTRA 60 Chassis Production Switcher
    • 36 Multi-Definition Inputs / 22 Multi-Definition Outputs / 4 Keys / ME
    • 36 Frame Synchronizers / 36 Color Correctors / 8 Floating DVE’s
    • 4 Mini-MEs / 12 Output Color Correctors / 34 Tally and GPIO triggers
    • 4 Media-Stores / DashBoard LiveAssistTM GUI with MediaManagerTM Web UI UltraChromeTM Choma-Keying
    • 5x MultiViewers
  • 1x Ross TouchDrive TD3S 3 ME Control Panel
  • 1x Ross Ultrix FR5 160×160 Video/Audio Router with MADI
    • 192 Channels of Madi
    • 160 Frame Synces
    • 27 Multiview Heads
  • 1x Ross SRG-4400 – Master Reference and Test Signal Generator
  • 3x Ross XPression Real-Time Motion Graphic System // (1x) 3-Channel GFX, (1x) 3-Channel Spot Box, (1x) 3-Channel Spare
    • RossLinq Functionality between XPression + Carbonite
    • 9x Total Channels
    • 3x DataLinq Servers
  • 1x Ross Abekas Mira+ Replay Server – 12 Video Channels (Configurable)
    • 1080p / 1080i / 720p Switchable
    • RAID-6 media storage with up to 200 hours of capacity at 100Mb
    • Integrated Output Multiview w/ embedded audio meters
  • 1x XFile 3 High-Performance Station for A/V Content Archive/Restore
  • 1x EVS XTGO Broadcast Server – 8 HD video channels (6 In / 2 Out)
    • Clip Creation / Instant Cue Up / Jogging Function with smooth video display
    • EVS XTract gateway application / Super Motion support / Multi-Viewer
    • 30h @ DVCPRO HD / 60h @ DVCPRO 50
  • 2x Blackmagic HyperDeck Studio HD Pro
  • 6x HDCU3500 SONY Cameras
  • 1080p / 1080i / 720p Switchable
  • Fiber Only
  • 6x SONY 3500 Camera Control Unit
  • 6x SONY RCP 3500 Control Panel
  • 6x SONY HDVF-EL75 7″ HD OLED Viewfinder
  • 6x SONY HDVF-EL20 2″ OLED Handheld
  • Lens
  • 1-Canon 10x with controls
  • 2- Canon 22x with controls
  • 3-Canon HD Box lens

***Additional cameras and lens available upon request***

  • 1x Calrec Brio36 Digital Audio Console
    • 36 Dual Layer Faders
    • 96-channel option upgrade
  • Hydra2 Network with 2 Fiber Field Kits
  • 1x iPad for Music
  • 4x Genelec 8020CPM – (2x) Located in Audio / (2x) Located in Main Production
  • 6x Sennheiser HMD-26 MARK II Broadcast Headset
  • 6x Sennheiser MD-46 Reporter Microphone
  • 6x Audio-Technica AT8035 14.53” Shotgun Microphone
  • 2x Audio-Technica BP4029 9.3” Stereo Shotgun Microphone
  • 6x Audio-Technica AT897 11” Shotgun Microphone
  • 2x Sony ECM 77b Lavalier Microphones
  • Clear-Com Eclipse HX DELTA Matrix
    • 8 PL Circuits
    • 12 IFB Channels for Talkback
    • 12 Matrix Stations
    • 2 Portable Matrix Stations
    • 10 Duplex Belt Packs
    • 64×64 MADI
    • 64 EIPA IP Ports
  • 2x JK Audio innkeeper Hybrid Telephone Interface (8x) Total Lines
  • VF9000 Fiber Video Transport System, 36 signals over 2 fibers
  • 4x AJA FS4 Frame Syncs
  • 2x Came-TV LED 1×1 Lights
  • 16x Throw-Down Fiber Converters
  • 16x 27″ Monitors
  • 4x Ikegami ULE-185-U (Field)
  • 1x Ikegami HLM-2450-U (Shade)
  • 16x MultiViews – Routable

208 Single Phase 208v Twist Camlok – 200 Amps

FIN3

  • 1x Ross Carbonite BLACK+ Chassis Production Switcher
    • 36 Multi-Definition Inputs / 22 Multi-Definition Outputs / 4 Keys / ME
    • 36 Frame Synchronizers / 36 Color Correctors / 8 Floating DVE’s
    • 4 Mini-MEs / 12 Output Color Correctors / 34 Tally and GPIO triggers
    • 4 Media-Stores / DashBoard LiveAssistTM GUI with MediaManagerTM Web UI UltraChromeTM Choma-Keying
    • 5x MultiViewers
  • 1x Ross TouchDrive TD3S 3 ME Control Panel
  • 1x Ross Ultrix FR5 160×160 Video/Audio Router with MADI
    • 192 Channels of Madi
    • 160 Frame Synces
    • 27 Multiview Heads
  • 1x Ross SRG-4400 – Master Reference and Test Signal Generator
  • 3x Ross XPression Real-Time Motion Graphic System // (1x) 3-Channel GFX, (1x) 3-Channel Spot Box, (1x) 3-Channel Spare
    • RossLinq Functionality between XPression + Carbonite
    • 9x Total Channels
    • 3x DataLinq Servers
  • 1x Ross Abekas Mira+ Replay Server – 12 Video Channels (Configurable)
    • 1080p / 1080i / 720p Switchable
    • RAID-6 media storage with up to 200 hours of capacity at 100Mb
    • Integrated Output Multiview w/ embedded audio meters
  • 1x XFile 3 High-Performance Station for A/V Content Archive/Restore
  • 1x EVS XTGO Broadcast Server – 8 HD video channels (6 In / 2 Out)
    • Clip Creation / Instant Cue Up / Jogging Function with smooth video display
    • EVS XTract gateway application / Super Motion support / Multi-Viewer
    • 30h @ DVCPRO HD / 60h @ DVCPRO 50
  • 2x Blackmagic HyperDeck Studio HD Pro
  • 6x HDCU3500 SONY Cameras
  • 1080p / 1080i / 720p Switchable
  • Fiber Only
  • 6x SONY 3500 Camera Control Unit
  • 6x SONY RCP 3500 Control Panel
  • 6x SONY HDVF-EL75 7″ HD OLED Viewfinder
  • 6x SONY HDVF-EL20 2″ OLED Handheld
  • Lens
  • 1-Canon 10x with controls
  • 2- Canon 22x with controls
  • 3-Canon HD Box lens

***Additional cameras and lens available upon request***

  • 1x Calrec Brio36 Digital Audio Console
    • 36 Dual Layer Faders
    • 96-channel option upgrade
  • Hydra2 Network with 2 Fiber Field Kits
  • 1x iPad for Music
  • 4x Genelec 8020CPM – (2x) Located in Audio / (2x) Located in Main Production
  • 6x Sennheiser HMD-26 MARK II Broadcast Headset
  • 6x Sennheiser MD-46 Reporter Microphone
  • 6x Audio-Technica AT8035 14.53” Shotgun Microphone
  • 2x Audio-Technica BP4029 9.3” Stereo Shotgun Microphone
  • 6x Audio-Technica AT897 11” Shotgun Microphone
  • 2x Sony ECM 77b Lavalier Microphones
  • Clear-Com Eclipse HX DELTA Matrix
    • 8 PL Circuits
    • 12 IFB Channels for Talkback
    • 12 Matrix Stations
    • 2 Portable Matrix Stations
    • 10 Duplex Belt Packs
    • 64×64 MADI
    • 64 EIPA IP Ports
  • 2x JK Audio innkeeper Hybrid Telephone Interface (8x) Total Lines
  • VF9000 Fiber Video Transport System, 36 signals over 2 fibers
  • 4x AJA FS4 Frame Syncs
  • 2x Came-TV LED 1×1 Lights
  • 16x Throw-Down Fiber Converters
  • 16x 27″ Monitors
  • 4x Ikegami ULE-185-U (Field)
  • 1x Ikegami HLM-2450-U (Shade)
  • 16x MultiViews – Routable

208 Single Phase 208v Twist Camlok – 200 Amps

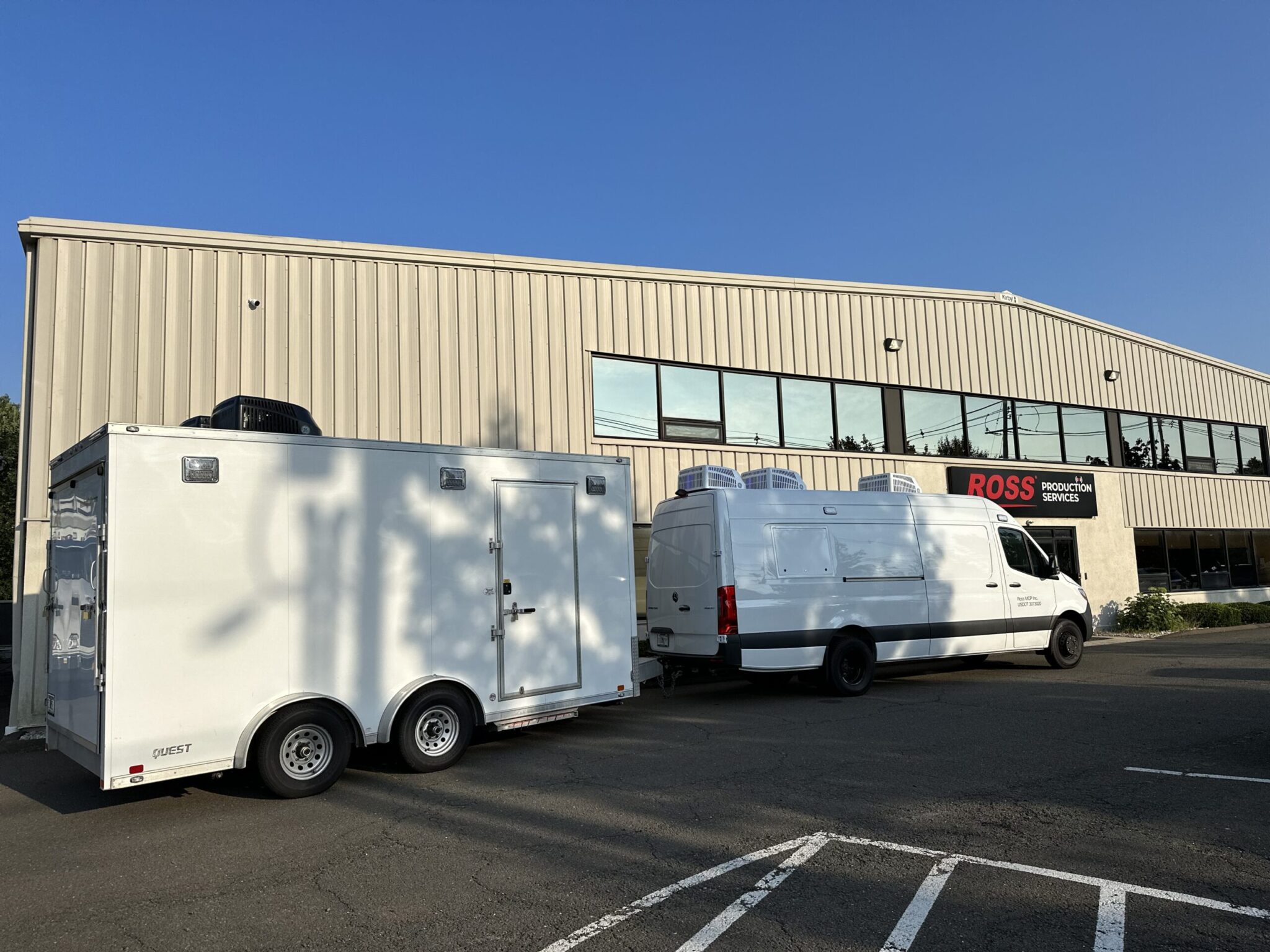

FIN4

  • 1x Ross Carbonite ULTRA 60 Chassis Production Switcher
    • 36 Multi-Definition Inputs / 22 Multi-Definition Outputs / 4 Keys / ME
    • 36 Frame Synchronizers / 36 Color Correctors / 8 Floating DVE’s
    • 4 Mini-MEs / 12 Output Color Correctors / 34 Tally and GPIO triggers
    • 4 Media-Stores / DashBoard LiveAssistTM GUI with MediaManagerTM Web UI UltraChromeTM Choma-Keying
    • 5x MultiViewers

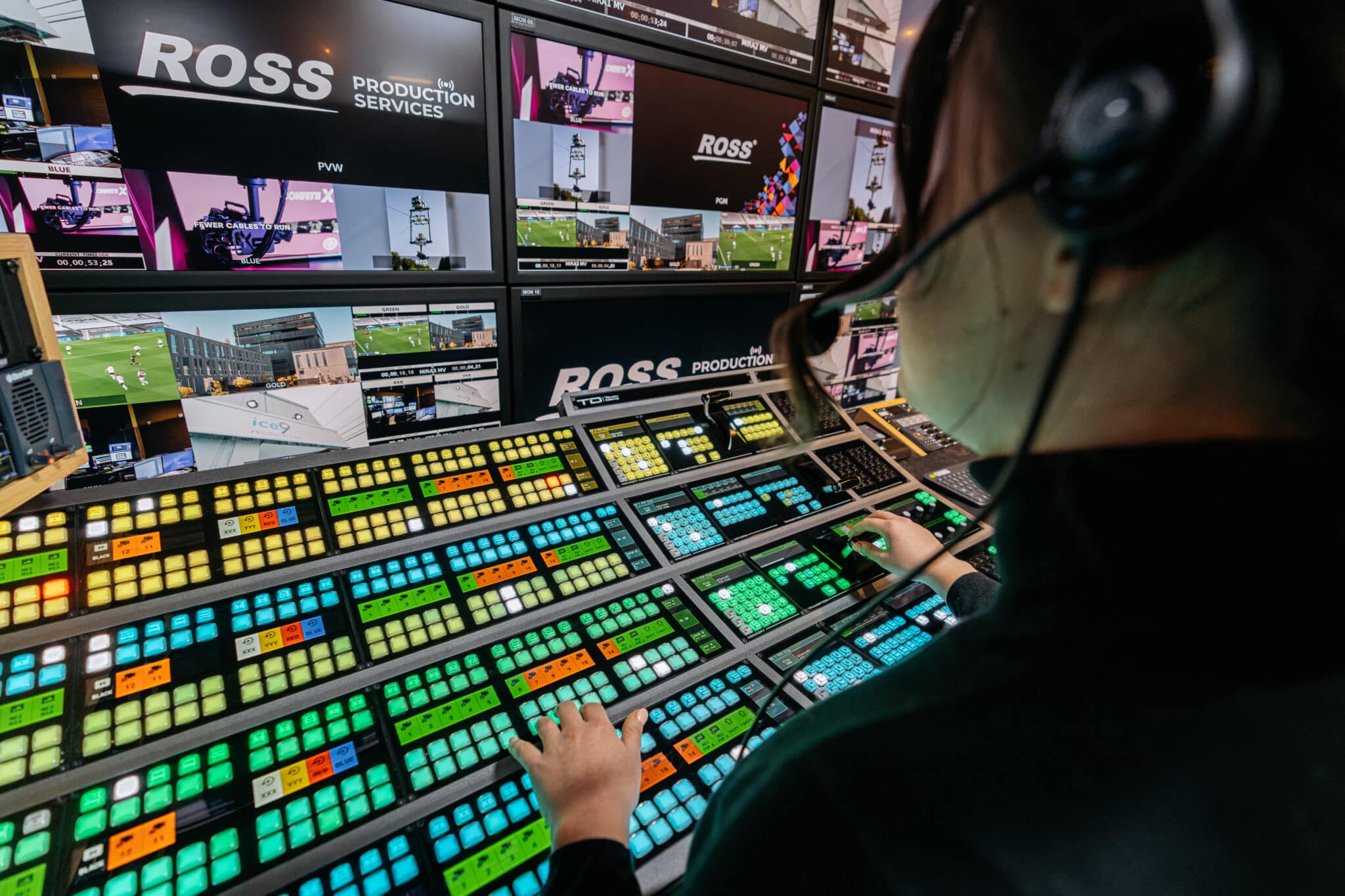

  • 1x Ross TouchDrive TD3S 3 ME Control Panel
  • 1x Ross Ultrix FR5 160×160 Video/Audio Router with MADI
    • 192 Channels of Madi
    • 160 Frame Synces
    • 27 Multiview Heads
  • 1x Ross SRG-4400 – Master Reference and Test Signal Generator
  • 3x Ross XPression Real-Time Motion Graphic System // (1x) 3-Channel GFX, (1x) 3-Channel Spot Box, (1x) 3-Channel Spare
    • RossLinq Functionality between XPression + Carbonite
    • 9x Total Channels
    • 3x DataLinq Servers
  • 1x Ross Abekas Mira+ Replay Server – 12 Video Channels (Configurable)
    • 1080p / 1080i / 720p Switchable
    • RAID-6 media storage with up to 200 hours of capacity at 100Mb
    • Integrated Output Multiview w/ embedded audio meters
  • 1x XFile 3 High-Performance Station for A/V Content Archive/Restore
  • 1x EVS XTGO Broadcast Server – 8 HD video channels (6 In / 2 Out)
    • Clip Creation / Instant Cue Up / Jogging Function with smooth video display
    • EVS XTract gateway application / Super Motion support / Multi-Viewer
    • 30h @ DVCPRO HD / 60h @ DVCPRO 50
  • 2x Blackmagic HyperDeck Studio HD Pro
  • 6x HDCU3500 SONY Cameras
  • 1080p / 1080i / 720p Switchable
  • Fiber Only
  • 6x SONY 3500 Camera Control Unit
  • 6x SONY RCP 3500 Control Panel
  • 6x SONY HDVF-EL75 7″ HD OLED Viewfinder
  • 6x SONY HDVF-EL20 2″ OLED Handheld
  • Lens
  • 1-Canon 10x with controls
  • 2- Canon 22x with controls
  • 3-Canon HD Box lens

***Additional cameras and lens available upon request***

  • 1x Calrec Brio36 Digital Audio Console
    • 36 Dual Layer Faders
    • 96-channel option upgrade
  • Hydra2 Network with 2 Fiber Field Kits
  • 1x iPad for Music
  • 4x Genelec 8020CPM – (2x) Located in Audio / (2x) Located in Main Production
  • 6x Sennheiser HMD-26 MARK II Broadcast Headset
  • 6x Sennheiser MD-46 Reporter Microphone
  • 6x Audio-Technica AT8035 14.53” Shotgun Microphone
  • 2x Audio-Technica BP4029 9.3” Stereo Shotgun Microphone
  • 6x Audio-Technica AT897 11” Shotgun Microphone
  • 2x Sony ECM 77b Lavalier Microphones
  • Clear-Com Eclipse HX DELTA Matrix
    • 8 PL Circuits
    • 12 IFB Channels for Talkback
    • 12 Matrix Stations
    • 2 Portable Matrix Stations
    • 10 Duplex Belt Packs
    • 64×64 MADI
    • 64 EIPA IP Ports
  • 2x JK Audio innkeeper Hybrid Telephone Interface (8x) Total Lines
  • VF9000 Fiber Video Transport System, 36 signals over 2 fibers
  • 4x AJA FS4 Frame Syncs
  • 2x Came-TV LED 1×1 Lights
  • 16x Throw-Down Fiber Converters
  • 16x 27″ Monitors
  • 4x Ikegami ULE-185-U (Field)
  • 1x Ikegami HLM-2450-U (Shade)
  • 16x MultiViews – Routable

208 Single Phase 208v Twist Camlok – 200 Amps

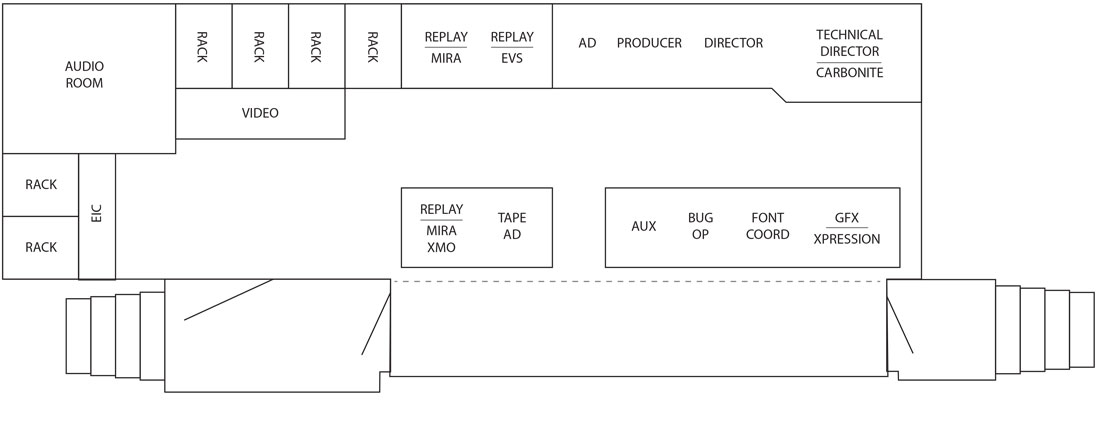

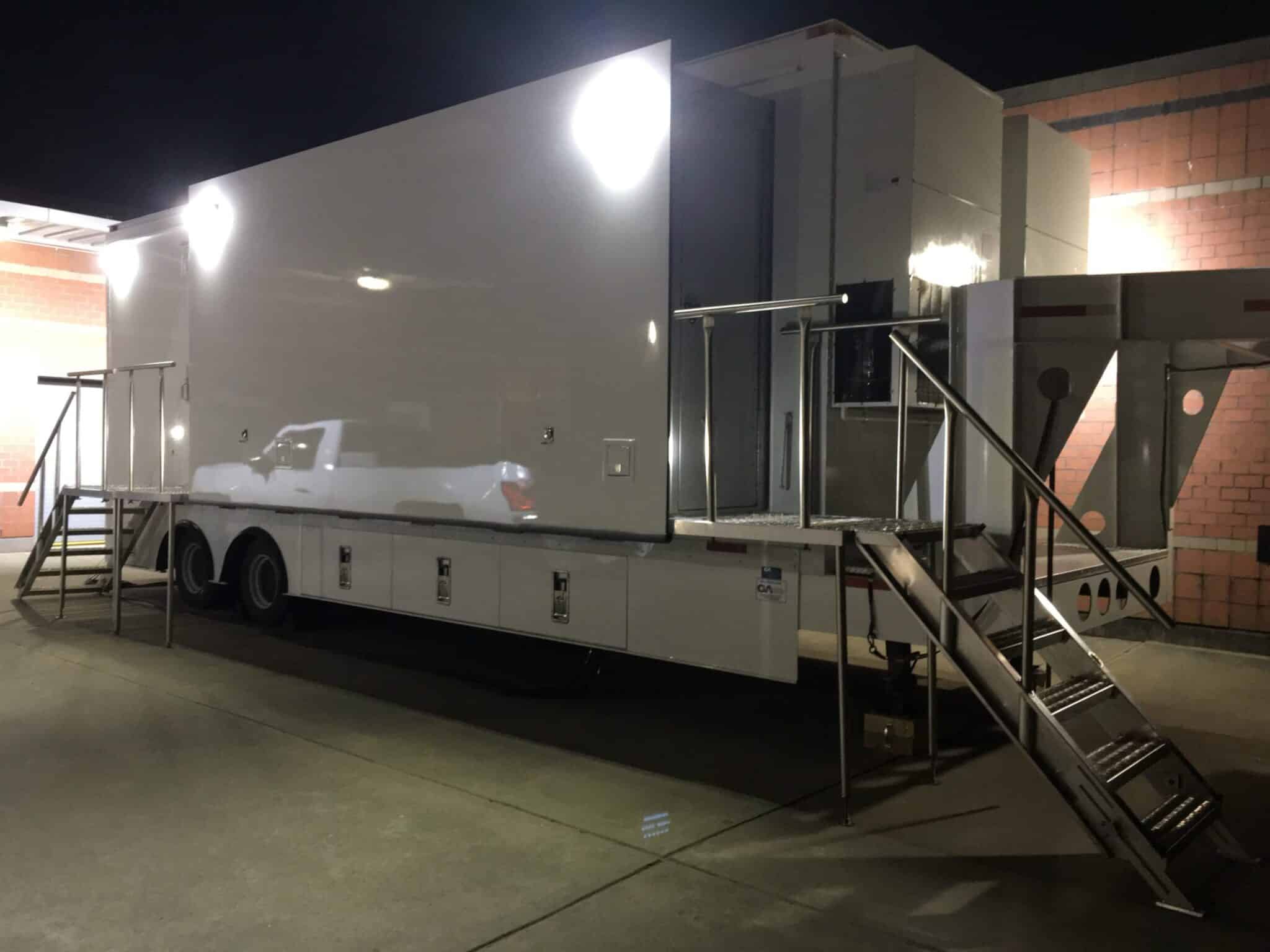

RMP6

Designed around a tightly integrated Carbonite Production Switcher and XPression Graphics core, the new GA built RMP6 delivers: 8-12 cameras, 16-channels of embedded audio and a 96-port intercom matrix, 3 eight- channel replay machines with Super SloMo and full 1080P capabilities.

  • Trailer:
    • 30’ Long x 12’.5” High x 8’.5” Wide (Collapsed)
    • 30’ Long x 12’.5” High x 11’.5” Wide (Expanded)
    • 45’ Long x x 12’.5” High x 8’.5” Wide (with Tractor attached)
  • Tractor:
    • 20’.2” Long x 7”.5’ High x 8’.1” Wide
    • GVWR – 25999 lbs.
  • 1x Ross Carbonite BLACK + Chassis Production Switcher
    • 36 Multi-Definition Inputs / 22 Multi-Definition Outputs / 4 Keys / ME
    • 36 Frame Synchronizers / 36 Color Correctors / 8 Floating DVE’s
    • 4 Mini-MEs / 12 Output Color Correctors / 34 Tally and GPIO triggers
    • 4 Media-Stores / DashBoard LiveAssistTM GUI with MediaManagerTM Web UI UltraChromeTM Choma-Keying
    • 5x MultiViewers
  • 1x Ross Carbonite 3B3X 3ME – 36 Button Control Panel
  • 2x Ross Ultrix 160×160 Router
    • x3 64×64 Channel MADI
    • Full 16 Channels of embed/de-embed on all In’s and Out’s, and Clean/Quiet switching on all outputs
    • 12x MultiViewer Heads
  • 1x XFile 3 High-Performance Station for A/V Content Archive/Restore
  • 1x EVS XT NANO Broadcast Server – 8 HD video channels (6 In / 2 Out)
    • Clip Creation / Instant Cue Up / Jogging Function with smooth video display
    • EVS XTract gateway application / Super Motion support / Multi-Viewer
    • 30h @ DVCPRO HD / 60h @ DVCPRO 50
  • 2x Ross Abekas Mira+ Replay Server – 12 Video Channels (Configurable)
    • 1080p / 1080i / 720p Switchable
    • RAID-6 media storage with up to 200 hours of capacity at 100Mb
    • Integrated Output Multiview w/ embedded audio meters
  • 2x Blackmagic HyperDeck Studio HD Pro
  • 6x 4K UHD SK-UHD-4000 Field Cameras
    • 1080p / 1080i / 720p Switchable // SMPTE
  • 2x Super-Slow Motion SK-UHD-4000 Field Cameras
    • 1080i @ 180 Frames per Second // SMPTE
  • 8x CU-UHD-4000 4K Camera Control Unit
  • 8x  RU-1500VR/JY Operation Control Panel
  • 8x HDF-700H 7” Color Monitors
  • 4x VF-402-S3 2” Handheld Viewfinders
  • Lens
  • 1-Canon 10x with controls
  • 2- Canon 22x with controls
  • 3-Canon HD Box lens

***Additional cameras and lens available upon request***

***Wired for 12 CCU’s***

  • 1x Calrec Brio36 Digital Audio Console
    • 36 Dual Layer Faders
    • 96-channel option upgrade
  • Hydra2 Network with 2 Fiber Field Kits
  • 1x iPad for Music
  • 7x Genelec 8020CPM – (5x) Located in Audio / (2x) Located in Main Production
  • 1x Genelec 7050BPM Active Studio Subwoofer
  • 6x Sennheiser HMD-26 MARK II Broadcast Headset
  • 6x Sennheiser MD-46 Reporter Microphone
  • 6x Audio-Technica AT8035 14.53” Shotgun Microphone
  • 2x Audio-Technica BP4029 9.3” Stereo Shotgun Microphone
  • 6x Audio-Technica AT897 11” Shotgun Microphone
  • 2x Sony ECM 77b Lavalier Microphones
  • 1x Clear-Com Median Intercom Matrix Frame
    • 1x 64×64 Channel MADI Card
    • 8x IFB Channels for Talkback
    • 17x User Stations – 24 Buttons
    • 8x IP-LQ PL Circuits 10x Duplex Belt Packs
    • 2x JK Audio innkeeper Hybrid Telephone Interface (8x) Total Lines
  • VF9000 Fiber Video Transport System, 36 signals over 2 fibers
  • 4x AJA FS4 Frame Syncs
  • 2x Came-TV LED 1×1 Lights
  • 16x Throw-Down Fiber Converters
  • 16 user monitors
  • 12x BOLAND 4k 27″ Monitor wall
  • 17x Marshall M-LYNX702 Dual Monitors
  • 4x Ikegami ULE-185-U
  • 3x Ikegami HLM-2450-U
  • 19x MultiViews – Routable
  • 208 Three Phase 208v Twist Camlok – 200 Amps

FIN7

  • 1x Ross Carbonite BLACK + Chassis Production Switcher
    • 36 Multi-Definition Inputs / 23 Multi-Definition Outputs / 5 Keyers per ME
    • 36 Frame Synchronizers / 36 Color Correctors / 8 Floating DVE’s
    • 4 Mini-MEs / 12 Output Color Correctors / 34 Tally and GPIO triggers
    • 4 Media-Stores / DashBoard LiveAssistTM GUI with MediaManagerTM Web UI UltraChromeTM Choma-Keying
    • 5x MultiViewers
  • 1x Ross Carbonite CB2S 2ME – 24 Button Control Panel
  • 1x Ross Ultrix FR5 160×160 Video/Audio Router with MADI
    • 192 Channels of Madi
    • 160 Frame Synces
    • 27 Multiview Heads
  • 1x Ross SRG-4500 – Master Reference and Test Signal Generator
  • 3x Ross XPression Real-Time Motion Graphic System // (1x) 3-Channel GFX, (1x) 3-Channel Spot Box, (1x) 3-Channel Spare
    • RossLinq Functionality between XPression + Carbonite
    • 9 x Total Channels
    • 3x DataLinq Servers
  • 1x EVS XTnano Broadcast Server – 8 HD video channels (6 In / 2 Out)
    • Clip Creation / Instant Cue Up / Jogging Function with smooth video display
    • EVS XTract gateway application / Super Motion support / Multi-Viewer
    • 30h @ Avid DNxHD
  • 1x XFile 3 High-Performance Station for A/V Content Archive/Restore
  • 1x Ross Abekas Mira+ Replay Server – 12 Video Channels (Configurable)
    • 1080p / 1080i / 720p Switchable
      Flexible configurations to support single or dual user operation
    • RAID-6 media storage with up to 200 hours of capacity at 100Mb
    • Integrated Output Multiview w/ embedded audio meters
  • 2x Atomos Shogun Studio Recorders
    • 10-bit 4:2:2 Video & Audio / Apple ProRes or Avid DNxHD
    • 12 Channels of Embedded Audio
  • 6x HDCU3500 SONY Cameras
  • 1080p / 1080i / 720p Switchable
  • Fiber Only
  • 6x SONY 3500 Camera Control Unit
  • 6x SONY RCP 3500 Control Panel
  • 6x SONY HDVF-EL75 7″ HD OLED Viewfinder
  • 6x SONY HDVF-EL20 2″ OLED Handheld
  • Lens
  • 1-Canon 10x with controls
  • 2- Canon 22x with controls
  • 3-Canon HD Box lens

***Additional cameras and lens available upon request***

  • 1x Calrec Brio36 Digital Audio Console
    • 36 Dual Layer Faders
    • 96-channel option upgrade
  • Hydra2 Network with 2 Fiber Field Kits
  • 1x iPad for Music
  • 4x Genelec 8020CPM – (2x) Located in Audio / (2x) Located in Main Production
  • 6x Sennheiser HMD-26 MARK II Broadcast Headset
  • 6x Sennheiser MD-46 Reporter Microphone
  • 6x Audio-Technica AT8035 14.53” Shotgun Microphone
  • 2x Audio-Technica BP4029 9.3” Stereo Shotgun Microphone
  • 6x Audio-Technica AT897 11” Shotgun Microphone
  • 2x Sony ECM 77b Lavalier Microphones
  • Clear-Com Eclipse HX DELTA Matrix
    • 8 PL Circuits
    • 12 IFB Channels for Talkback
    • 12 Matrix Stations
    • 2 Portable Matrix Stations
    • 10 Duplex Belt Packs
    • 64×64 MADI
    • 64 EIPA IP Ports
  • 2x JK Audio innkeeper Hybrid Telephone Interface (8x) Total Lines
  • VF9000 Fiber Video Transport System, 36 signals over 2 fibers
  • 4x AJA FS4 Frame Syncs
  • 2x Came-TV LED 1×1 Lights
  • 16x Throw-Down Fiber Converters
  • 14x NEC 27″ Monitors for Multiviewers
  • 4x Ikegami ULE-185-U (Field)
  • 1x Ikegami HLM-2450-U (Shade)
  • 16x MultiViews – Routable
  • 208 Single Phase 208v Twist Camlok – 200 Amps

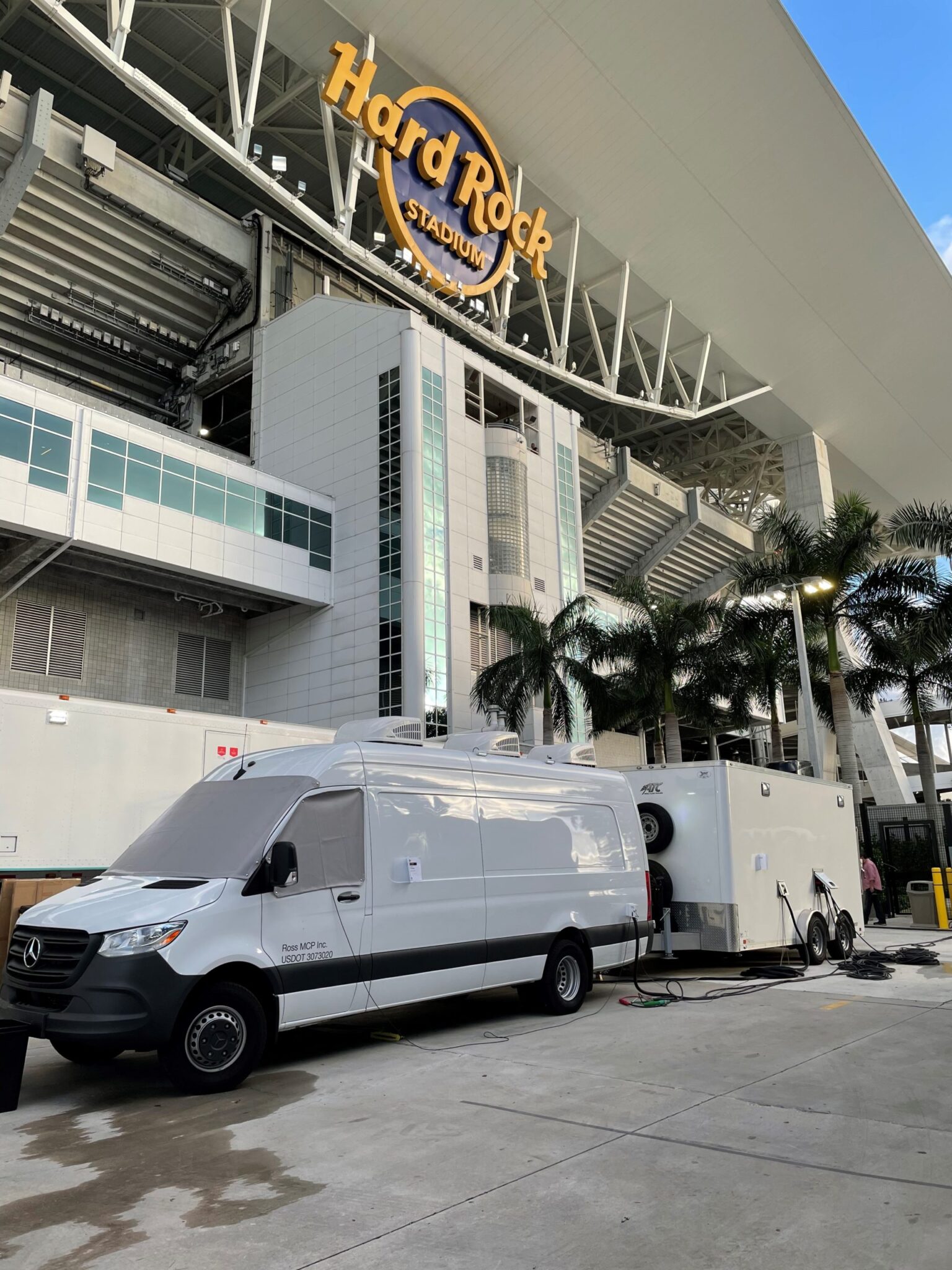

FIN8

  • 1x Ross Carbonite ULTRA 60 Chassis Production Switcher
    • 36 Multi-Definition Inputs / 22 Multi-Definition Outputs / 4 Keys / ME
    • 36 Frame Synchronizers / 36 Color Correctors / 8 Floating DVE’s
    • 4 Mini-MEs / 12 Output Color Correctors / 34 Tally and GPIO triggers
    • 4 Media-Stores / DashBoard LiveAssistTM GUI with MediaManagerTM Web UI UltraChromeTM Choma-Keying
    • 5x MultiViewers
  • 1x Ross TouchDrive TD3S 3 ME Control Panel
  • 1x Ross Ultrix FR5 160×160 Video/Audio Router with MADI
    • 192 Channels of Madi
    • 160 Frame Synces
    • 27 Multiview Heads
  • 1x Ross SRG-4400 – Master Reference and Test Signal Generator
  • 3x Ross XPression Real-Time Motion Graphic System // (1x) 3-Channel GFX, (1x) 3-Channel Spot Box, (1x) 3-Channel Spare
    • RossLinq Functionality between XPression + Carbonite
    • 9x Total Channels
    • 3x DataLinq Servers
  • 1x Ross Abekas Mira+ Replay Server – 12 Video Channels (Configurable)
    • 1080p / 1080i / 720p Switchable
    • RAID-6 media storage with up to 200 hours of capacity at 100Mb
    • Integrated Output Multiview w/ embedded audio meters
  • 1x XFile 3 High-Performance Station for A/V Content Archive/Restore
  • 1x EVS XTGO Broadcast Server – 8 HD video channels (6 In / 2 Out)
    • Clip Creation / Instant Cue Up / Jogging Function with smooth video display
    • EVS XTract gateway application / Super Motion support / Multi-Viewer
    • 30h @ DVCPRO HD / 60h @ DVCPRO 50
  • 2x Blackmagic HyperDeck Studio HD Pro
  • 6x HDCU3500 SONY Cameras
  • 1080p / 1080i / 720p Switchable
  • Fiber Only
  • 6x SONY 3500 Camera Control Unit
  • 6x SONY RCP 3500 Control Panel
  • 6x SONY HDVF-EL75 7″ HD OLED Viewfinder
  • 6x SONY HDVF-EL20 2″ OLED Handheld
  • Lens
  • 1-Canon 10x with controls
  • 2- Canon 22x with controls
  • 3-Canon HD Box lens

***Additional cameras and lens available upon request***

  • 1x Calrec Brio36 Digital Audio Console
    • 36 Dual Layer Faders
    • 96-channel option upgrade
  • Hydra2 Network with 2 Fiber Field Kits
  • 1x iPad for Music
  • 4x Genelec 8020CPM – (2x) Located in Audio / (2x) Located in Main Production
  • 6x Sennheiser HMD-26 MARK II Broadcast Headset
  • 6x Sennheiser MD-46 Reporter Microphone
  • 6x Audio-Technica AT8035 14.53” Shotgun Microphone
  • 2x Audio-Technica BP4029 9.3” Stereo Shotgun Microphone
  • 6x Audio-Technica AT897 11” Shotgun Microphone
  • 2x Sony ECM 77b Lavalier Microphones
  • Clear-Com Eclipse HX DELTA Matrix
    • 8 PL Circuits
    • 12 IFB Channels for Talkback
    • 12 Matrix Stations
    • 2 Portable Matrix Stations
    • 10 Duplex Belt Packs
    • 64×64 MADI
    • 64 EIPA IP Ports
  • 2x JK Audio innkeeper Hybrid Telephone Interface (8x) Total Lines
  • VF9000 Fiber Video Transport System, 36 signals over 2 fibers
  • 4x AJA FS4 Frame Syncs
  • 2x Came-TV LED 1×1 Lights
  • 16x Throw-Down Fiber Converters
  • 16x 27″ Monitors
  • 4x Ikegami ULE-185-U (Field)
  • 1x Ikegami HLM-2450-U (Shade)
  • 16x MultiViews – Routable

208 Single Phase 208v Twist Camlok – 200 Amps

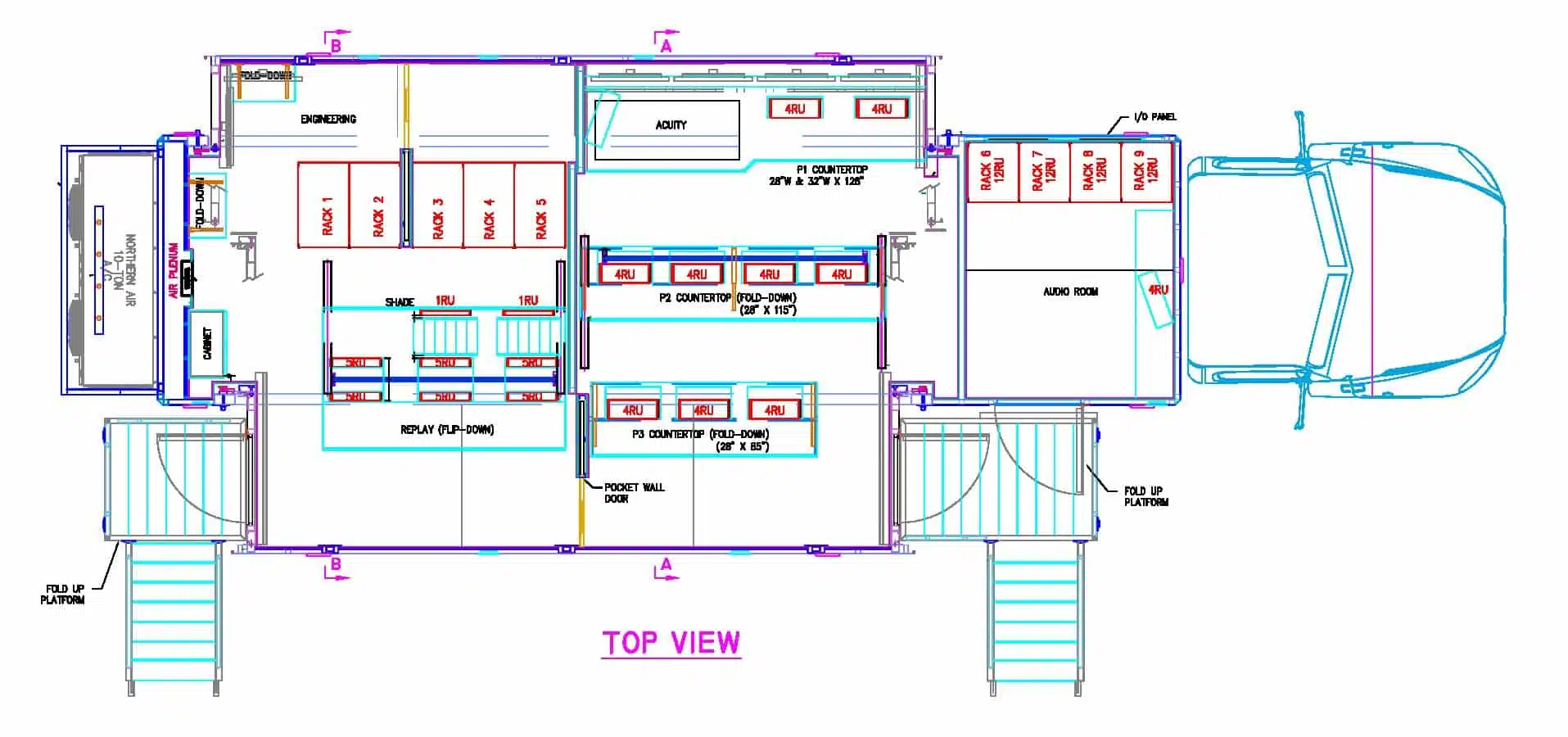

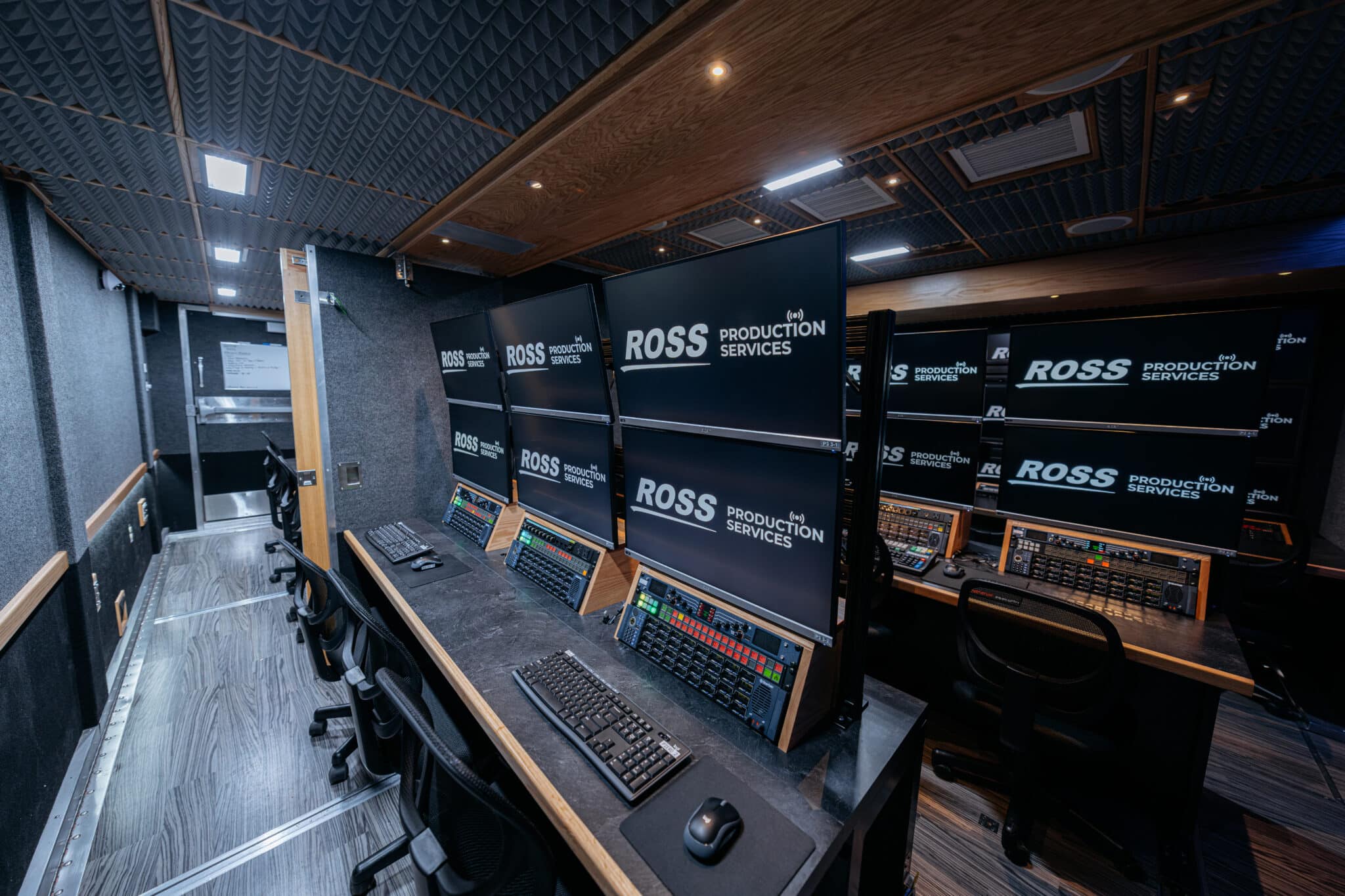

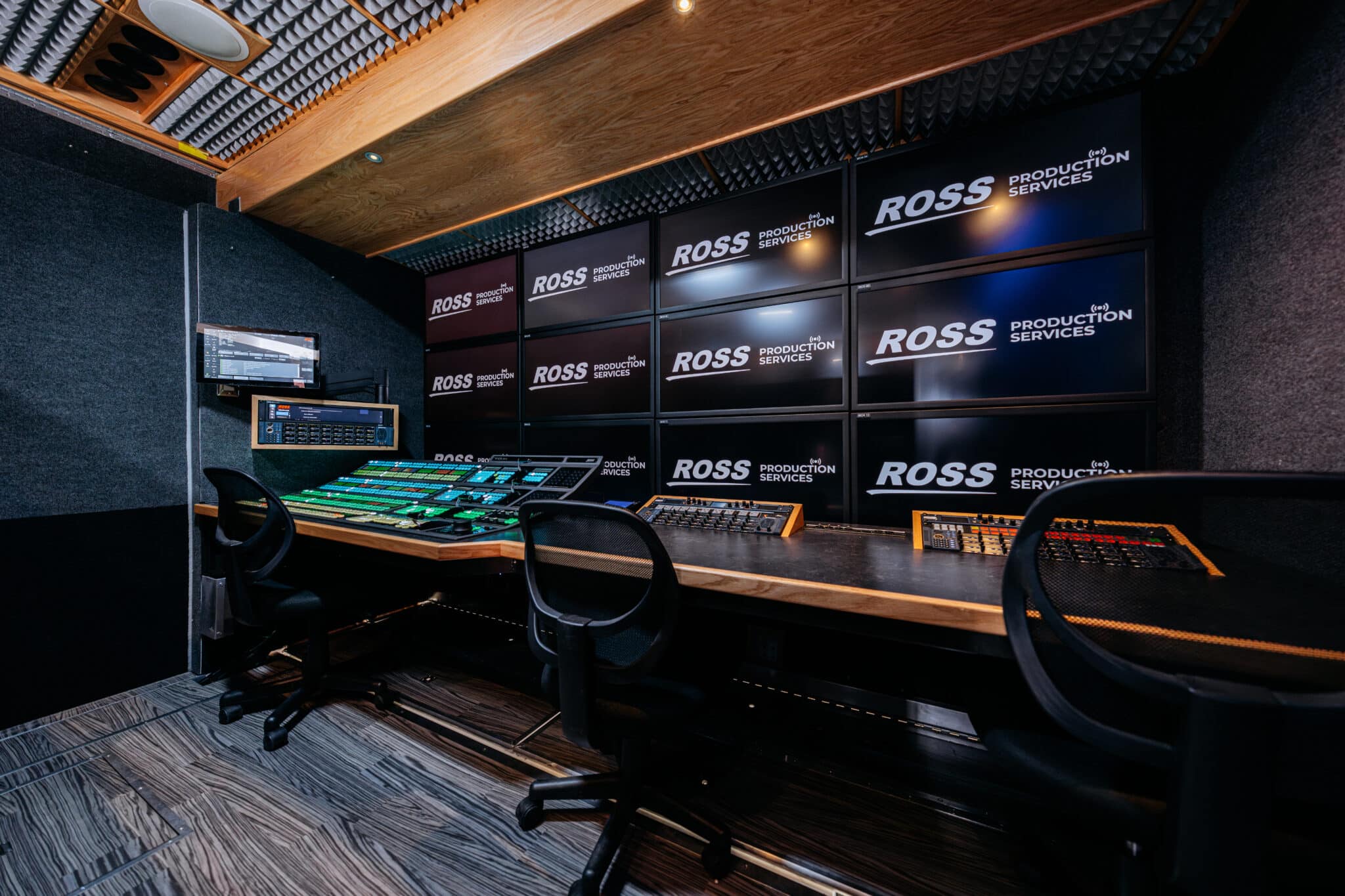

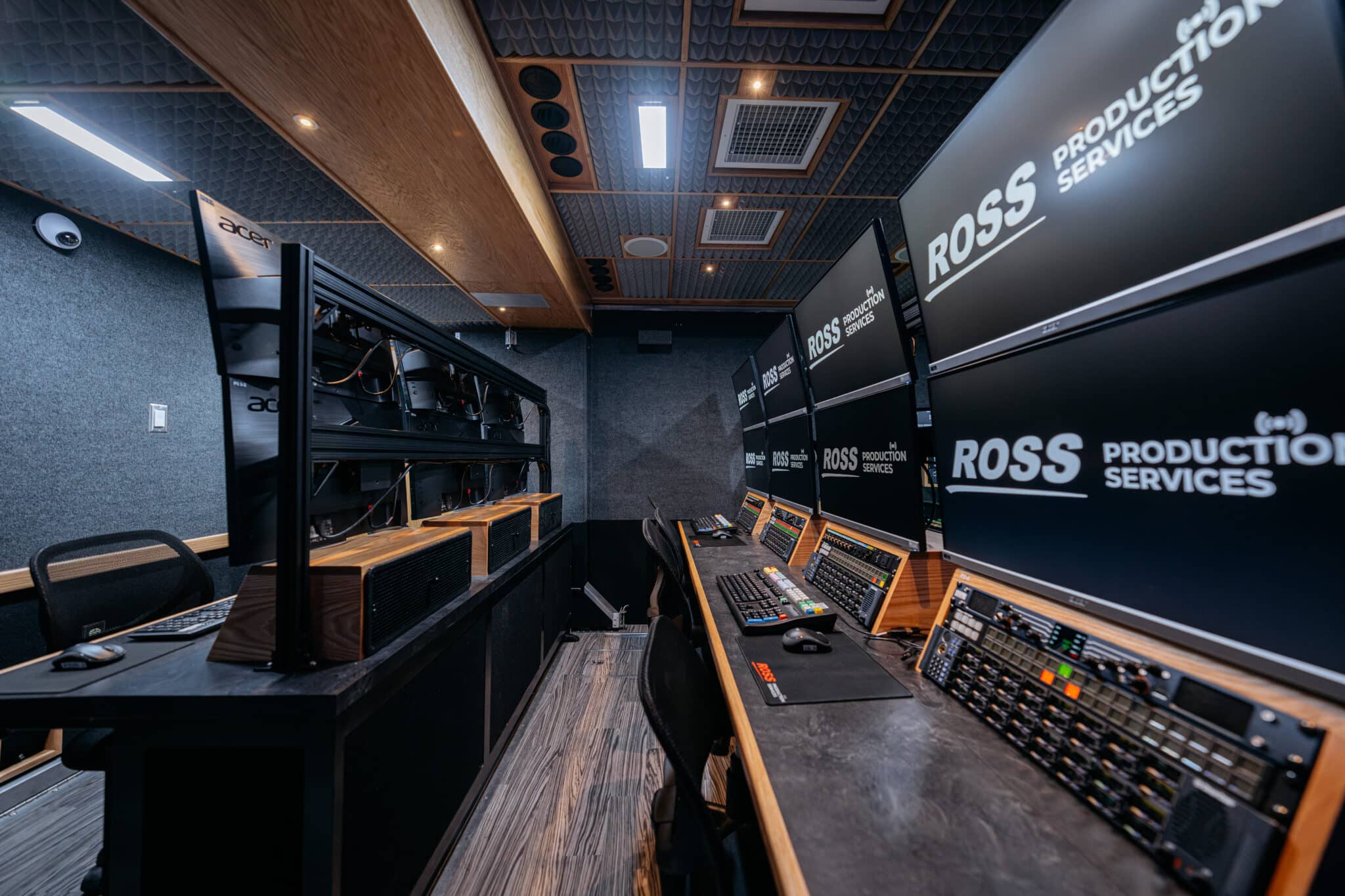

RPS9

Designed around a new Ross Hyper converged workflow featuring a 4ME Ultrix Acuity, the new flagship Touch Drive TD4 panel. RPS 9 is ready to handle your 4k broadcast

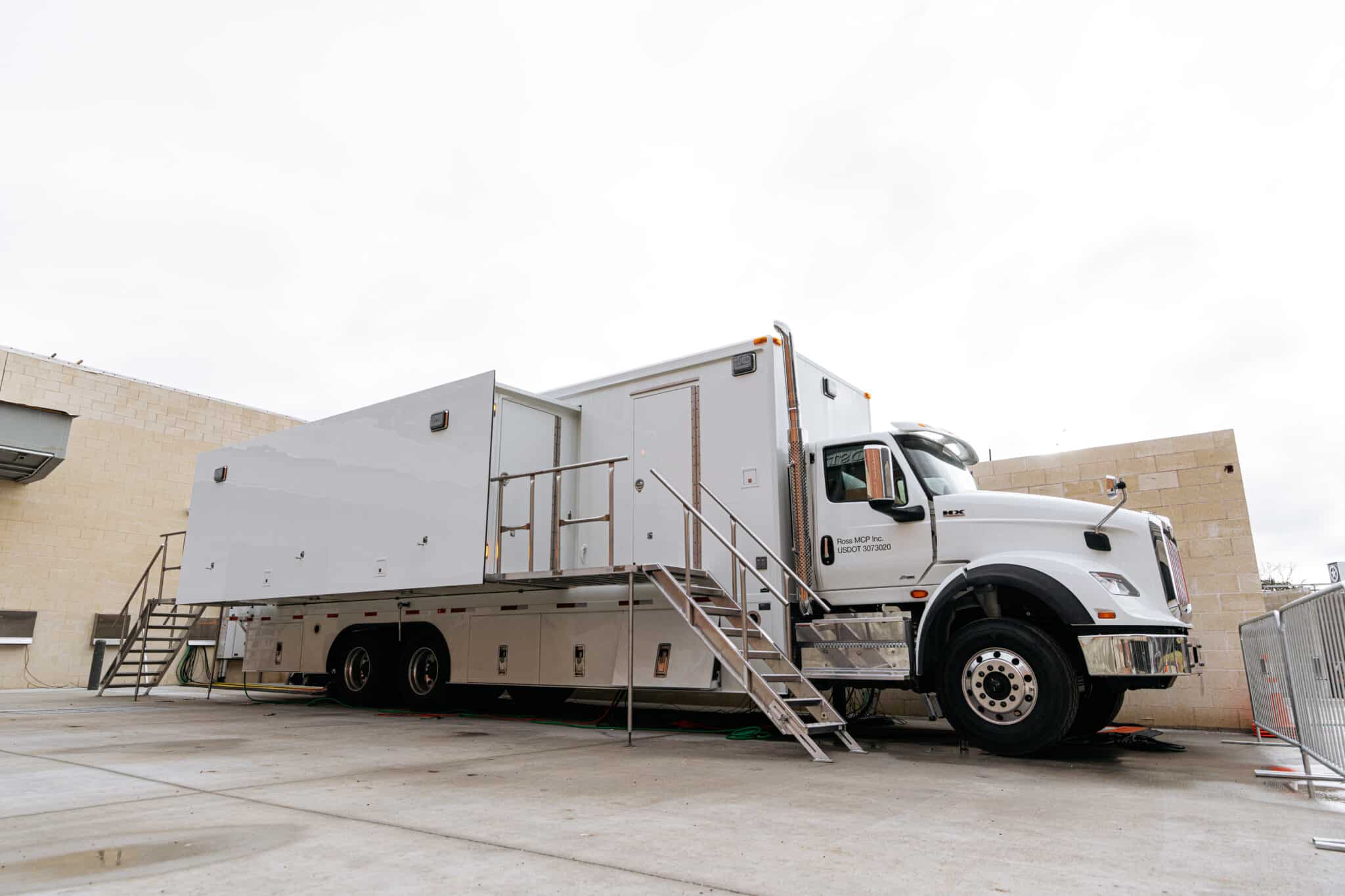

  • Truck and Box
    • 8’ 6” Wide (Collapsed)
    • 16′ Wide (Expanded)
    • 47’ Long
    •  13′ 2″ High
      • GVWR – 56000 lbs.
    •  208 Three Phase 208v Twist Camlok – 200 Amps
  • 4x ULTRIX Acuity SDPE Blades
    • 4 ME
    • 6 Keys per ME
    • 14 2D DVE’s per ME
    • 4 3D DVE’s per ME
    • 48 Frame sync’s
    • 4 Media-Stores
  • 1x Ross TD4 Control Surface 4ME – 40 Button Control Panel
  • 1x FR12 186×186
    • x6 64×64 Channel MADI
    • Full 16 Channels of embed/de-embed on all In’s and Out’s, and Clean/Quiet switching on all outputs
    • 36 MultiViewer Heads
  • 2x Telestream SPG 9000 – Master Reference and Test Signal Generator and ECO8000 Auto-changeover unit
  • 4x Ross XPression Real-Time Motion Graphic System // (3x) 3 Channel
    • RossLinq Functionality between XPression + Carbonite
    • 12x Total Channels
    • 4x DataLinq Servers
  • 1x Ross TSI Tally System
  • 1x XFile 3 High-Performance Station for A/V Content Archive/Restore
  • 1x EVS XT VIA Broadcast Server – 12 HD video channels (10 In / 2 Out)
    • Clip Creation / Instant Cue Up / Jogging Function with smooth video display
    • Super Motion support
    • Codec support: HD: DNxHD, ProRes 422, AVC-I class 100; XAVC HD
    • Storage: 12x1800GB HDD
  • 3x Ross Abekas Mira+ Replay Server – 12 Video Channels (Configurable)
    • 1080p / 1080i / 720p Switchable
    • RAID-6 media storage with up to 200 hours of capacity at 100Mb
    • Integrated Output Multiview w/ embedded audio meters
  • 8x Blackmagic HyperDeck Studio HD Pro
  • 8x SONY HDCU3500 Field Cameras
    • 4k / 1080p / 1080i / 720p Switchable
  • SMPTE Fiber Only
  • 8x SONY 3500 Camera Control Unit
  • 8x SONY RCP 3500 Control Panel
  • 8x SONY HDVF-EL75 7″ HD OLED Viewfinder
  • 8x SONY HDVF-EL20 2″ OLED Handheld eyecup
  • Lens
  • 1-Canon 10x with controls
  • 2- Canon 22x with controls
  • 3-Canon HD Box lens

***Additional cameras and lens available upon request***

***Wired for 12 CCU’s***

  • 1x Calrec Apollo Core with Redundant Processors and Routers, 1024 DSP and 5x MADI
  • 1x Calrec Apollo 48-Fader, Dual Row Console Surface
  • Hydra2 Network with 2 Fiber Field Kits ( Can request up to 4)
  • 1x Spot on Digital Music Player for Music
  • Genelec Speakers in Audio for 5.1 Monitoring via Dante
  • 6x Sennheiser HMD-26 MARK II Broadcast Headset
  • 6x Sennheiser MD-46 Reporter Microphone
  • 6x Audio-Technica AT8035 14.53” Shotgun Microphone
  • 2x Audio-Technica BP4029 9.3” Stereo Shotgun Microphone
  • 6x Audio-Technica AT897 11” Shotgun Microphone
  • 2x Sony ECM 77b Lavalier Microphones
  • 1x Clear-Com OMEGA Intercom Matrix Frame
    • 2x 64×64 Channel MADI Card
    • 12x IFB Channels for Talkback
    • 18x User Stations – 36 Buttons
    • 15 belt packs
    • 8x IP-LQ PL Circuits 10x Duplex Belt Packs
    • 2x JK Audio innkeeper Hybrid Telephone Interface (8x) Total Lines
  • VF9000 Fiber Video Transport System, 36 signals over 2 fibers
  • 6x AJA FS4 HDR Frame Syncs
  • 2x Came-TV LED 1×1 Lights
  • 16x Throw-Down Fiber Converters
  • 24 user monitors powered by IHSE Draco Tera Enterprise KVM Matrix
  • 12x Boland 4k 27″ Monitor wall
  • 4x Ikegami ULE-185-U
  • 3x Sony Color Calibrated Shade Monitors 17″
  • 36x MultiViews – Routable

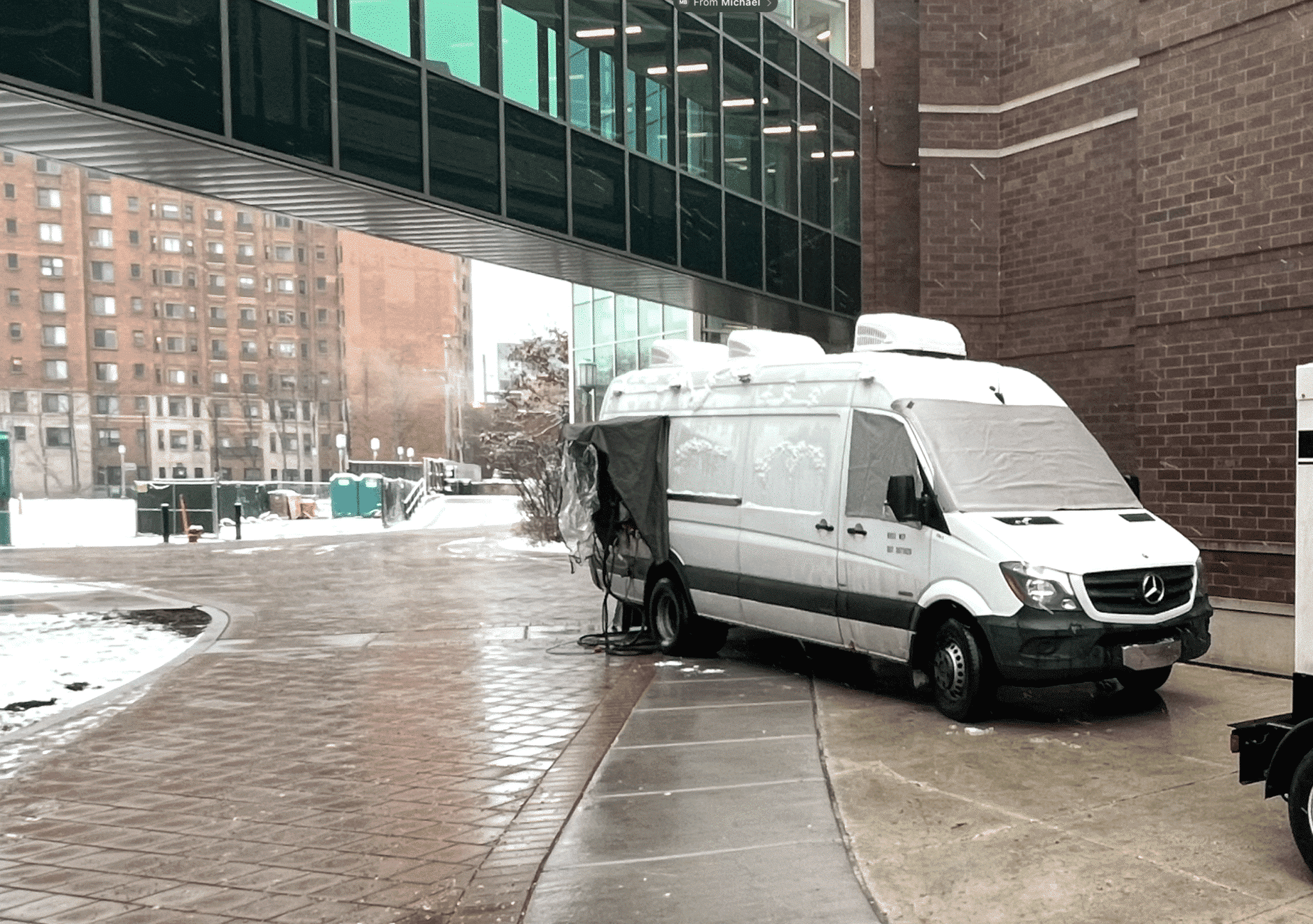

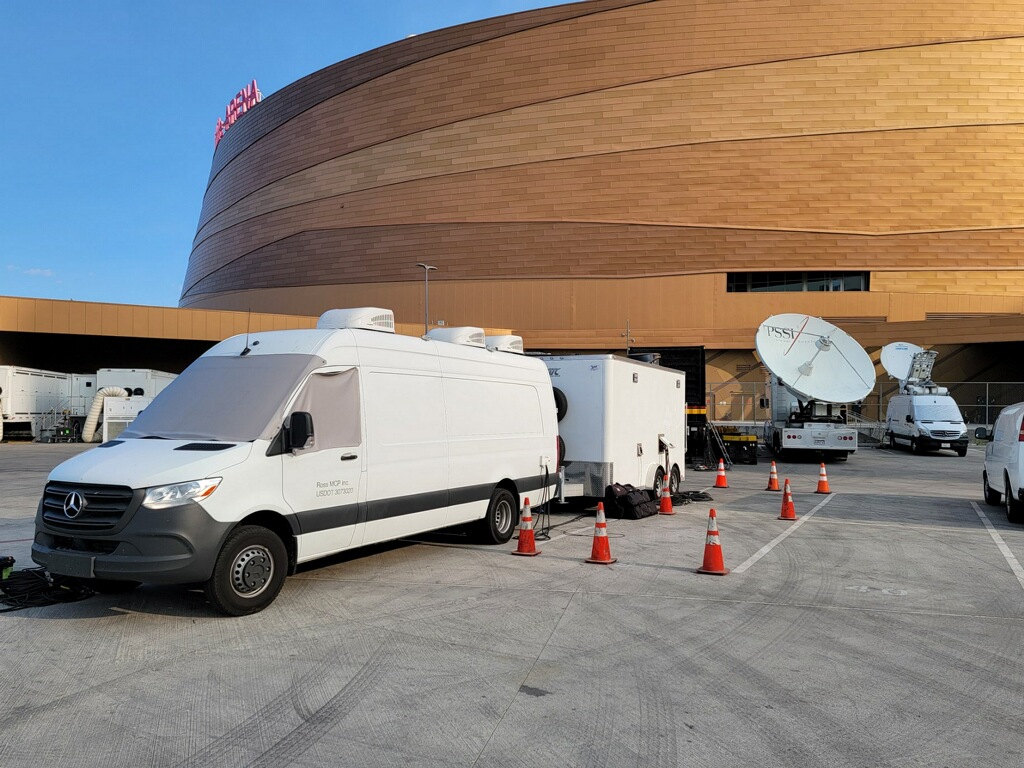

DISTRO 1/2/3

A REMI only mobile unit, that can easily handle your 5 ccu camera show and up to 4 pov’s with frame sync’s!

  • 1x Ross Ultrix FR2 64×64 Video/Audio Router with MADI
    • 64 Channels of Madi
    • 63 Frame Sync’s
    • 6 Multiview Heads
  • 1x Ross SRG-4400 – Master Reference and Test Signal Generator
  • 1x Ross XPression Real-Time Motion Graphic System
    • RossLinq Functionality between XPression + Carbonite
    • 3x Total Channels
    • 1x DataLinq Servers
  • 2x Blackmagic HyperDeck Studio HD Pro
  • 5x Ikegami HDCU 970M
  • 1080i / 720p Switchable
  • TRIAX only
  • 5x Ikegami Camera Control Unit 300 Series
  • 3x Ikegami 7″ HD LED Viewfinder
  • 2x Ikegami LED Handheld eyecup



  • Lens
  • 2- Canon 22x with controls
  • 3-Canon HD Box lens
  • 1x Calrec RP1
  • Hydra2 Network with 1 Fiber Field Kits
  • 2x Genelec 8020CPM for monitoring in truck
  • 6x Sennheiser HMD-26 MARK II Broadcast Headset
  • 6x Sennheiser MD-46 Reporter Microphone
  • 6x Audio-Technica AT8035 14.53” Shotgun Microphone
  • 2x Audio-Technica BP4029 9.3” Stereo Shotgun Microphone
  • 6x Audio-Technica AT897 11” Shotgun Microphone
  • 2x Sony ECM 77b Lavalier Microphones
  • Clear-Com
    • 8 PL Circuits
    • 4 IFB Channels for Talkback
    • 2  Matrix Stations
    • 10 Duplex Belt Packs
  • 2x AJA FS2 Frame Syncs
  • 2x Came-TV LED 1×1 Lights
  • 16x Throw-Down Fiber Converters
  • 4x Ikegami ULE-185-U (Field)
  • 1x Ikegami HLM-2450-U (Shade)
  • 6x MultiViews – Routable
  • 208 Single Phase 208v Twist Camlok – 200 Amps
