EVO Signature Series

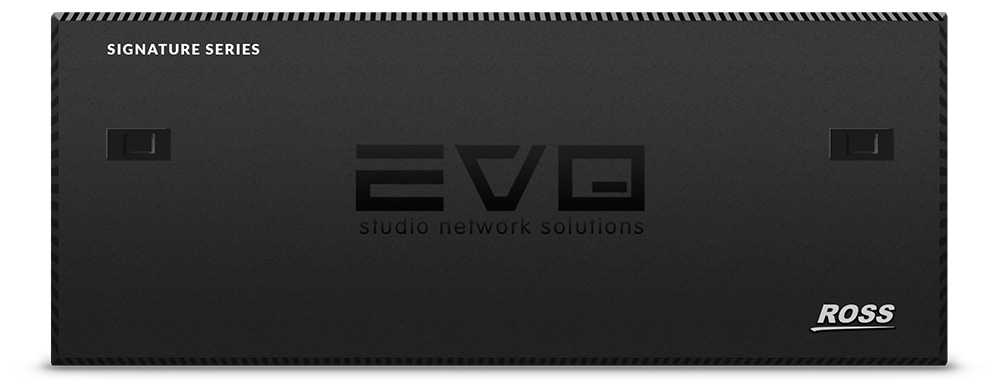

8 Bay Live (4U)
High performance shared storage in a compact chassis designed for DITs, OB trucks, and live event production.
High performance shared storage in a compact chassis designed for DITs, OB trucks, and live event production.
32 TB (8×4 TB SATA)
64 TB (8×8 TB SATA)
96 TB (8×12 TB SATA)
15 TB (8×1920 GB SSD)
Supports up to one 16 bay expansion chassis.
Please note that the depth on the expansion chassis is full depth and not the same form factor as the Live unit.
Includes:
2×1 GbE Ports
Expandable up to:
24×1 GbE ports, 4×10 GbE ports, 4×25 GbE ports, or 2×50 GbE ports
| FEATURES | EVO Signature Series 16 Bay (3U) |
|---|---|
| Disks Per Chassis | Maximum of 8 SATA/SSD Disks Per Chassis |
| Disks Per System | Maximum of 24 Disks Per System (4 Expansions) |
| RAID Support | 0, 1, 4, 5, 6, 10 |
| Power Requirement | 100-240VAC 47-63Hz (Auto Switching) |
| Power Supply | 650W Redundant (2 650W Modules) |
| Maximum Load | 9-4A |
| Operational Environment | 40 to 72°F (5 to 22°C) |
| Thermal | ~785 BTU/hr |
| Shipping Dimensions | 2 Boxes, 50 lbs. 23x23x13” and 20 lbs. 12x9x12” |
