Iggy

Compact AES67 & ST 2110 Audio Bridge Platform

At a Glance

Meet IGGY, our family of compact and feature-rich audio-over-IP bridges. Designed to bridge diverse audio formats, IGGY effortlessly brings together AES, MADI, or Analog audio with modern AES67 and ST 2110 network infrastructures. Whether your needs call for individual throwdowns or high-density rackmount configurations, IGGY is equipped to handle it all.

With its robust design, open control, and powerful remote monitoring, IGGY ensures you have full command over your audio network. Plus, our comprehensive network insights further elevate your understanding and control of network conditions. Don’t let bulky equipment or incompatible formats slow you down – with IGGY, you’re always in the groove!

Compact and Feature-Rich Design

Iggy offers a compact form factor that delivers high channel density and robust features, all within a space-saving package.  With a range of mounting options, it can be easily deployed in diverse scenarios, whether it’s a throwdown for a one-off event or a permanent rack-mount installation.  Pick any three IGGY models and they’ll sit comfortably together in a 1RU mounting tray.

Seamless Integration & Interoperability

The IGGY family of audio-over-IP bridges effortlessly integrates AES, MADI, or Analog audio into any AES 67 or 2110 applications using complete and proven 2110 and AES 67 implementations. IGGY is also an ideal component in Ross Hyperconverged systems. Use IGGY MADI for AES 67/ST 2110-30 support via MADI I/O, IGGY Analog as a gateway to incorporate analog audio into hybrid or pure ST 2110 systems, or IGGY AES to include AES3 audio into similar environments.

Open Control

In addition to Ross DashBoard, a plethora of discovery and control protocols are available, including NMOS, EmBER+, RAVENNA, SAP, Aneman, JSON API and a full featured WebUI.  Tally and GPIO functionality are enabled by TSL and RossTalk.  Enable control and monitoring your way, with the flexibility to connect to any network.

Robust & Flexible Design

Compact form factor, flexible mounting options and robust mechanical features allow IGGY to effortlessly adapt to your environment.  Locking connectors ensure reliability on important interfaces which include PoE, Tascam DB25, Gig-E, optical ports, Tally output (4x) and TTL GPIO (8x).  Redundant power supplies add uncommon robustness to IGGY’s form factor.



Powerful Remote Monitoring & Control

Information is key to successful 2110 and AES 67 network deployment and management. IGGY offers robust remote monitoring and control capabilities accessible through DashBoard or the Web UI. Its powerful diagnostic tools facilitate troubleshooting of Ethernet interfaces, providing valuable link statistics.



Comprehensive Network Insights

Diagnostic information like realtime bandwidth usage and PTP timing and sync are readily available. IGGY also facilitates packet capture for analysis of PTP handshake, control packets, and management protocols. Helpful onboard documentation provides flowcharts and step-by-step instructions for specific network, audio, and PTP investigation.  More than an audio/IP bridge, IGGY is a powerful tool for insight to the farthest edges of your network.

Products

Iggy-ANA8.8 Compact AES67 & ST2110 to ANA Audio Bridge LEARN MORE
Iggy-MADI Compact AES67 & ST2110 to MADI Audio Bridge LEARN MORE
Iggy-AES16.16 Compact AES67 & ST2110 to 16 x 16 AES3 Audio Bridge LEARN MORE

Applications

Compact IP Gear that adapts to your environment.

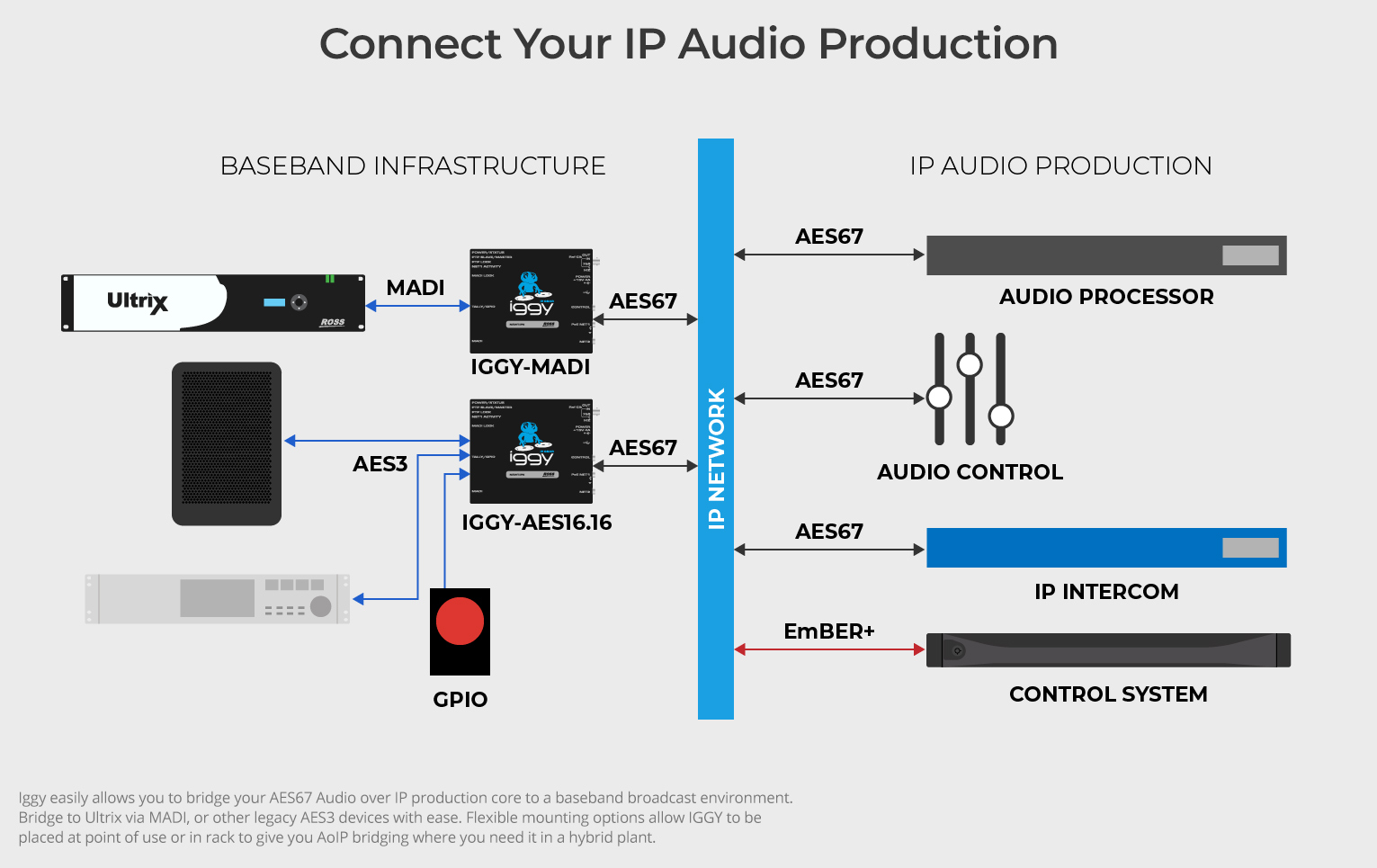

IP Audio Production

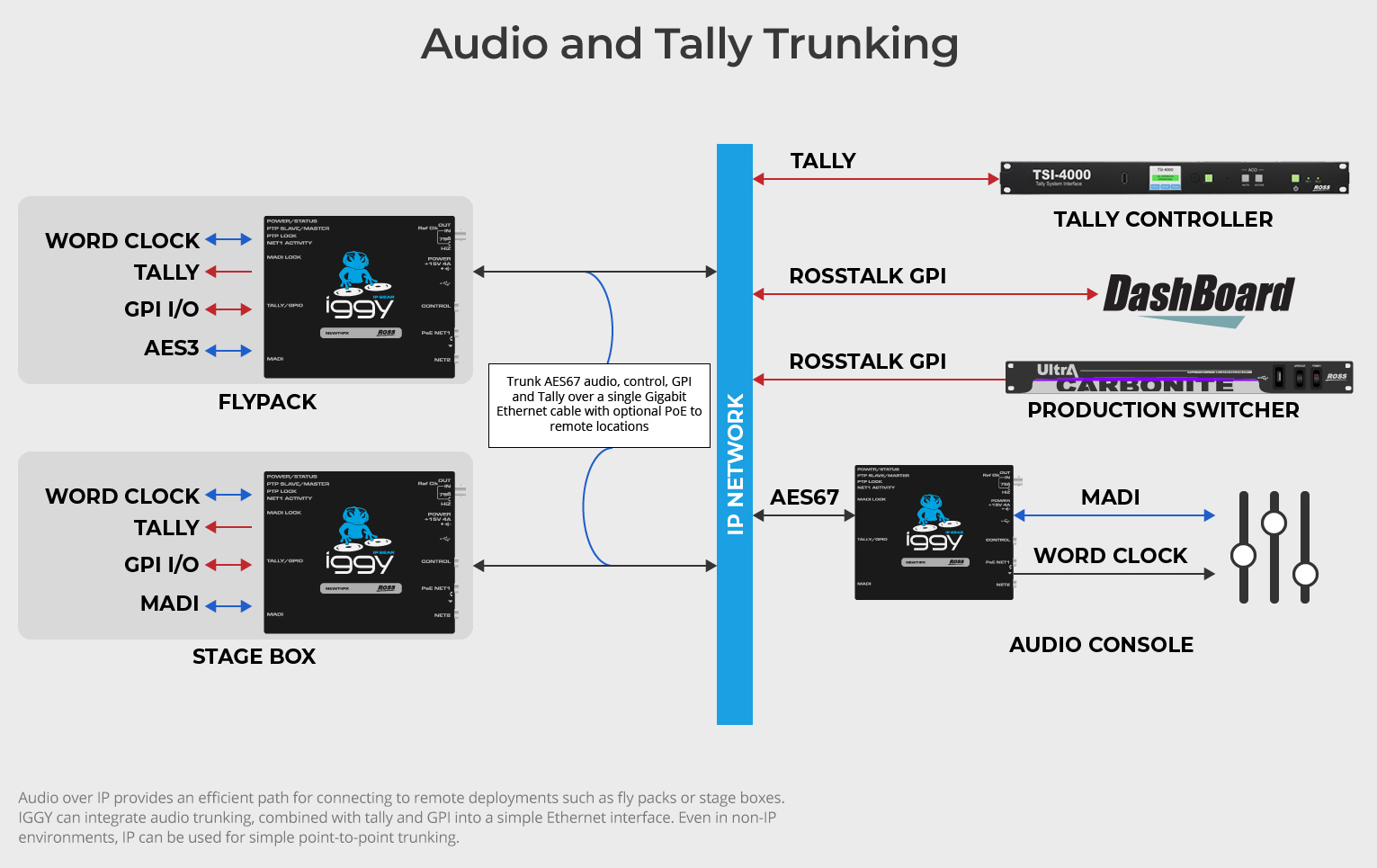

Audio & Tally Trunking
Audio IP Gateway

Features

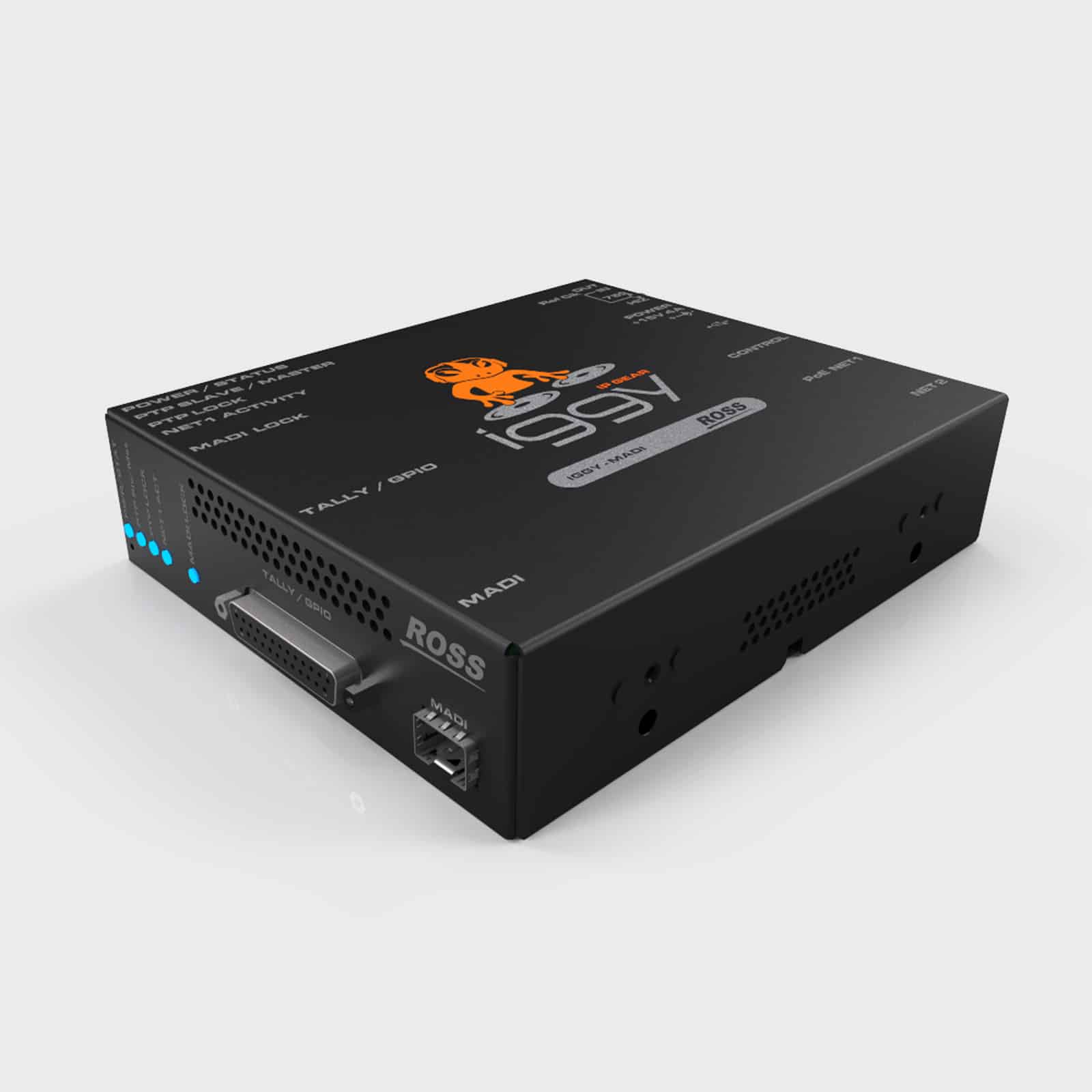

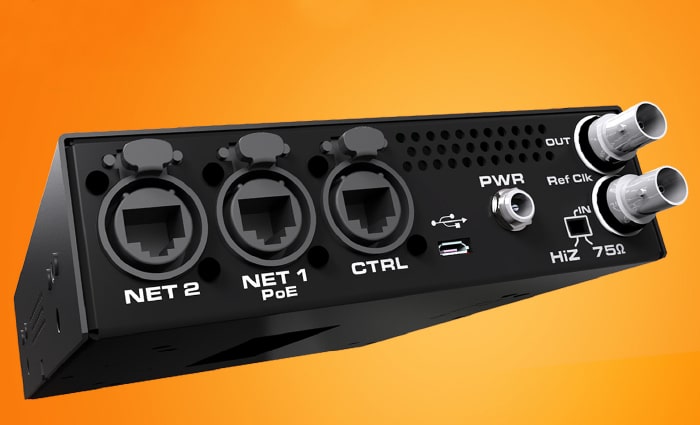

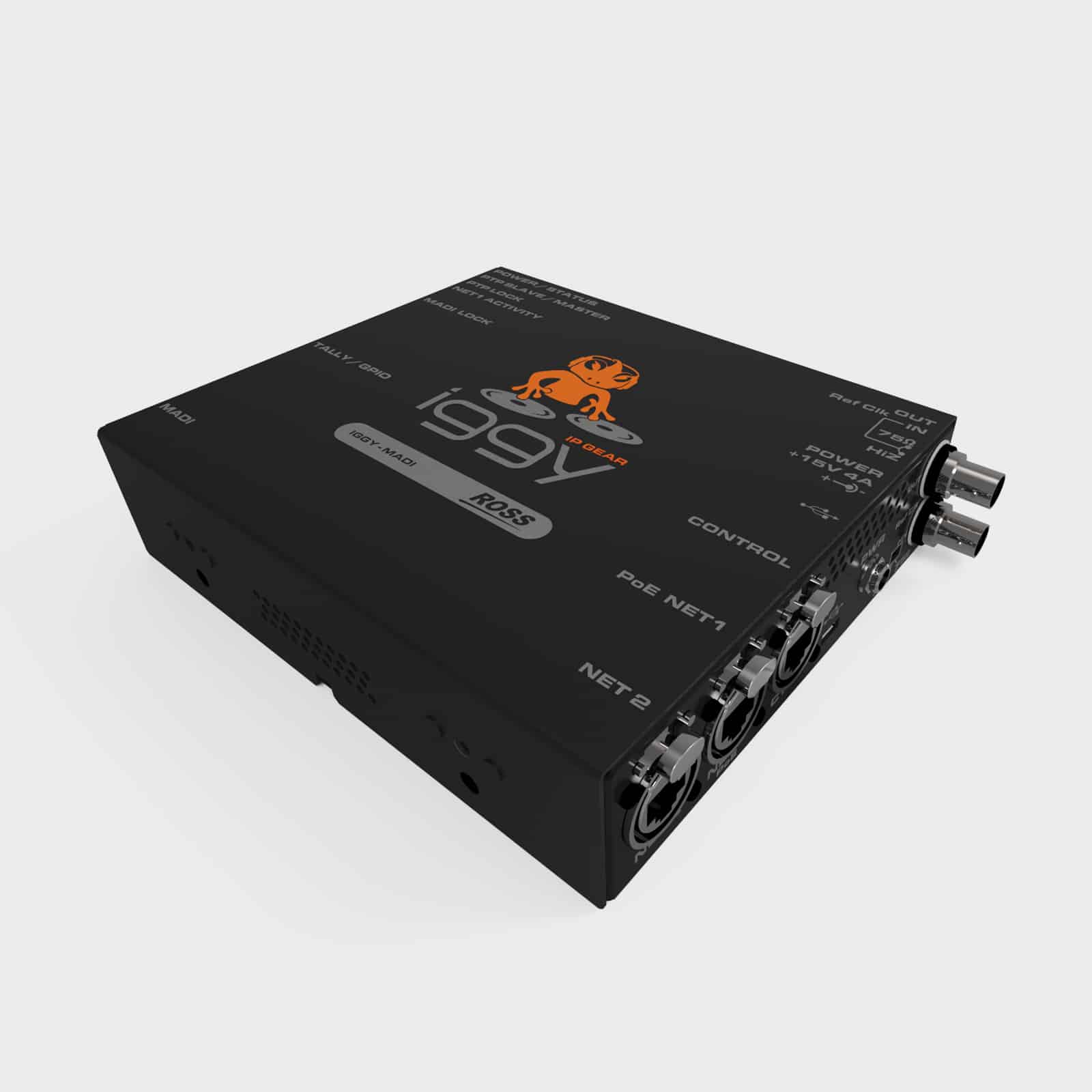

Iggy back unit - Flexible I/O

Rich & Flexible I/O

  • Analog or AES3 in and out via AES59/TASCAM DB25 connectors or MADI via copper or fiber interfaces
  • Dual Redundant Gigabit Ethernet audio interfaces, and optional GE control interface
  • 4x isolated Tally out +8 x TTL GPIO controlled via RossTalk and TSL
  • Work Clock output BNC locked to PTP reference
  • Redundant power using PoE or external supply
  • Use a single IGGY wherever needed or mount 3 of them in our 1RU shelf for high density
    • 3x IGGY-AES16.16 in 1RU for 48 AES channels in and out
    • 3x IGGY-ANA8.8 in 1RU for 24 Analog channels in and out
    • 3x IGGY-MADI in 1RU for 192 channels of MADI in and out
Iggy High Performance

Unmatched Performance & Reliability

  • WAN-capable buffering, which is critical in heavily loaded networks
  • Powerful embedded dual-core ARM Cortex A9 1.5GHz processor for responsive control and telemetry
  • Robust & durable enclosure
  • Enhanced PTP tracking algorithm for reliable performance over LANs
  • Redundant audio streaming over dual GigE in accordance with ST2022-7

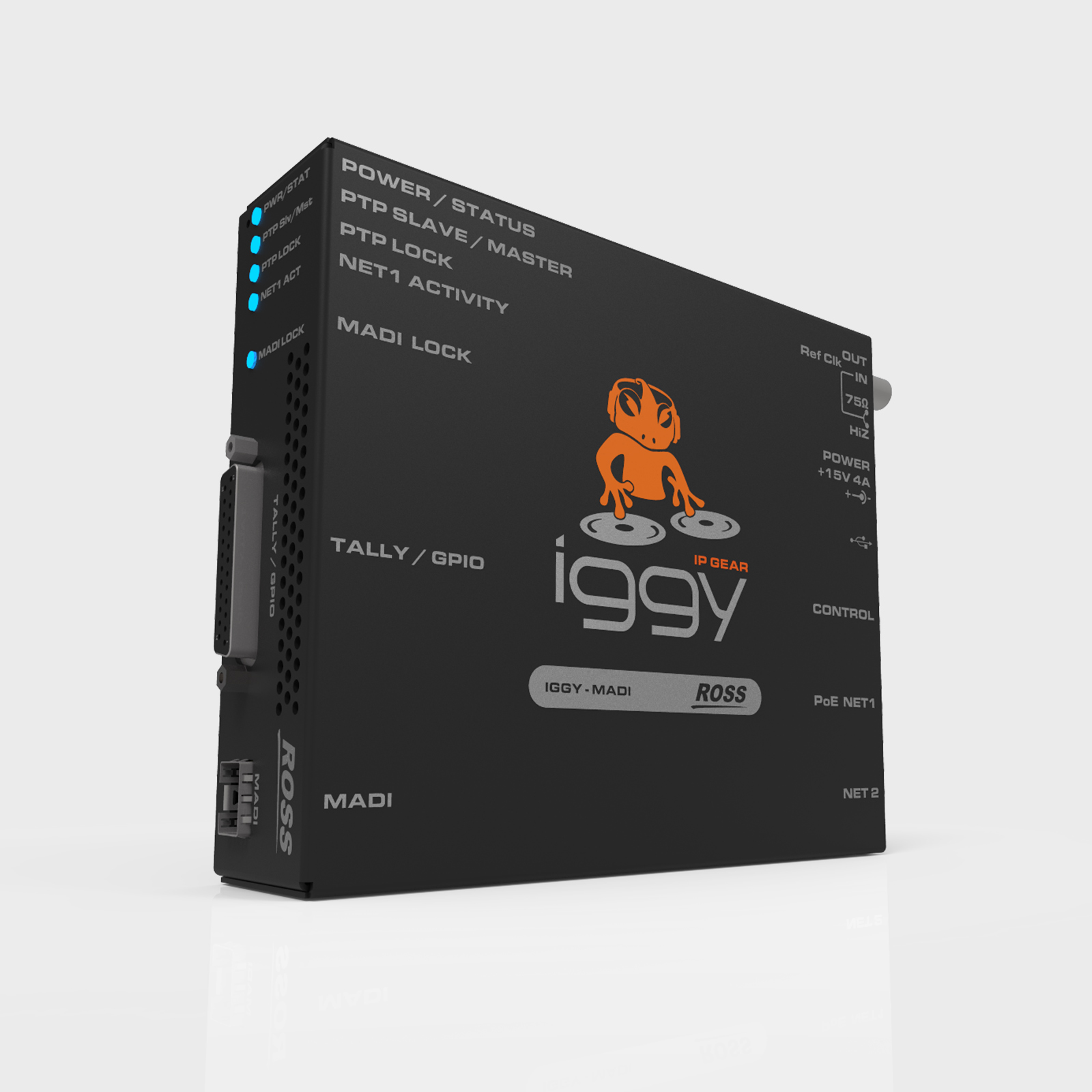

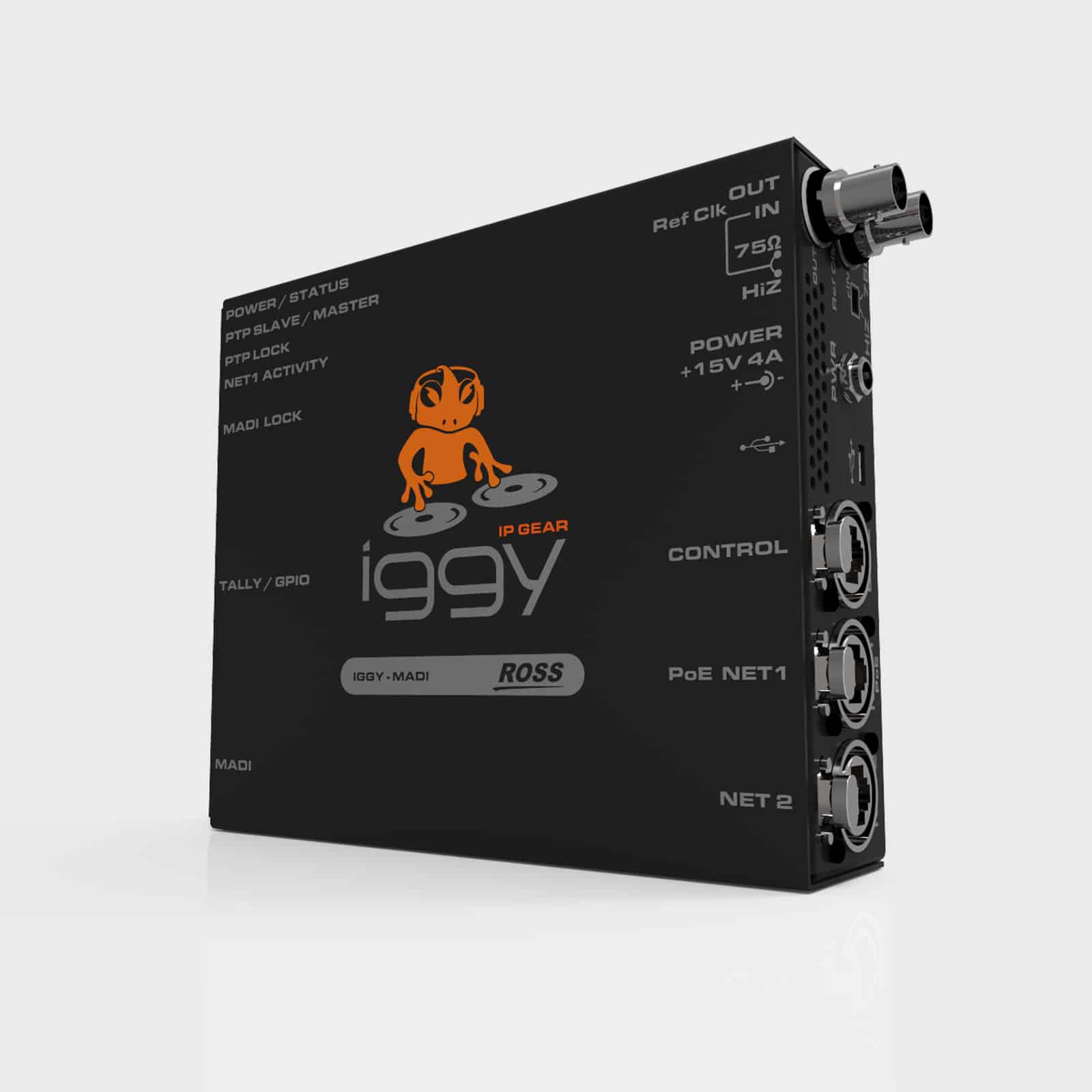

Iggy Mounting

Flexible & Robust Enclosure

  • 1 RU H x 5.75” W x 6.70” D
  • Operating: 0ºC to +40ºC
  • Fanless chassis for studio silent operation
  • Power over Ethernet and redundant DC input power
  • Locking connectors, including Neutrik Ethernet RJ45
  • Flexible mounting options.
    • Mix and match combination of 3 Iggy and Newt models in a 1RU rack tray
    • VESA and mounting-ear style brackets for single units
    • Built-in provision for tie-wrap mounting
Iggy Open Control

Open Control

  • Discovery and registration
    • NMOS IS-04
    • ANEMAN
    • RAVENNA
    • SAP
  • Connection Control
    • NMOS IS-05
    • EmBER+
    • ANEMAN
    • JSON API
  • Configuration
    • JSON API
    • DashBoard
    • WebUI
  • GPI & Tally
    • TSL
    • RossTalk
Iggy Silent

Silent

IGGY is passively cooled and operates with no fan or moving parts – a design that guarantees increased reliability and longevity. By eliminating mechanical noise, IGGY maintains a whisper-quiet presence that makes it ideal for sensitive audio productions, even when located near microphones. Whether you’re in the studio or on location, with IGGY’s silent operation, you can focus solely on the sound that truly matters – your production.

Iggy format AES67 ST 2110

AES67 & ST2110

  • Up to 32 audio senders and receivers
    • ST2022-7 hitless 1+1 redundancy per sender and receiver
    • Packet times: 125μs and 1ms
    • Samples per packet: 6, 12 and 48
    • Sample rates: 48kHz & 44.1kHz with Asynchronous Sample Rate Converter (ASRC)
    • 1-64 channels, configurable per audio stream
    • Audio formats: L24, and L16, configurable per audio stream
    • WAN-capable buffering: up to 30ms per receiver stream
  • ST 2110-30, including conformance levels: A, B, & C

Iggy U

A place for online self-directed learning of the Ross Iggy.

101

Connecting to your IGGY

102

Using the Initial Setup Wizard on IGGY

103

Making Connections on IGGY

Whitepaper: Precision Time Protocol (PTP)

The objective of this document is to provide basic information on PTP including some details on what this protocol is, listing the hard aspects, reviewing what makes a good PTP Grandmaster, listing some best practices and describing what is next for PTP.
