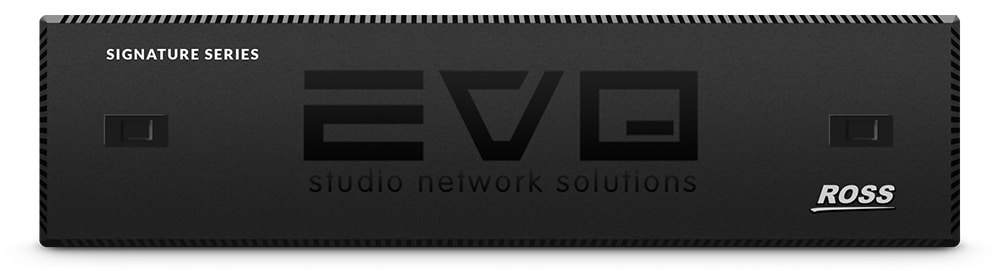

EVO Signature Series
16 Bay (3u) Specifications
Scalable shared storage for enterprise teams with massive storage requirements and demanding workflows.
Scalable shared storage for enterprise teams with massive storage requirements and demanding workflows.
128 TB (16×8 TB SATA)
192 TB (16×12 TB SATA)
61 TB (16×3840 GB SSD)
Supports up to four 16 bay expansion chassis.
Includes 2×1 GbE Ports
Expandable up to 26×1 GbE ports, 12×10 GbE optical ports, 8×10 GbE (base-T) ports, 6×25 GbE ports, or 2×50 GbE ports
| FEATURES | EVO Signature Series 16 Bay (3U) |
|---|---|
| Disks Per Chassis | Maximum of 16 SATA/SSD Disks Per Chassis (base unit) |
| Disks Per System | Maximum of 80 Disks Per System (4 Expansions) |
| RAID Support | 0, 1, 4, 5, 6, 10 |
| Power Requirement | 100-240VAC 50-60Hz (Auto Switching) |
| Power Supply | 1300W Redundant (3 650W Modules) |
| Maximum Load | 20-10A |
| Operational Environment | 40 to 72°F (5 to 22°C) |
| Thermal | ~1297 BTU/hr |
| Shipping Dimensions | 1 Box, 110 lbs. 37x25x14” |
| Dimensions | Height 5.25″ x Width 17″ x Length 28.5″ x Depth 32” [3U] |
| SPL | Base chassis with 16 disk drives, at idle, <60db SPL @ 1m, A-weighted |
