Compact AES67 & ST2110 to/from 8×8 Analog Audio Bridge

Iggy-ANA8.8 is a compact, broadly interoperable, and flexible live audio-over-IP to Analog bridge

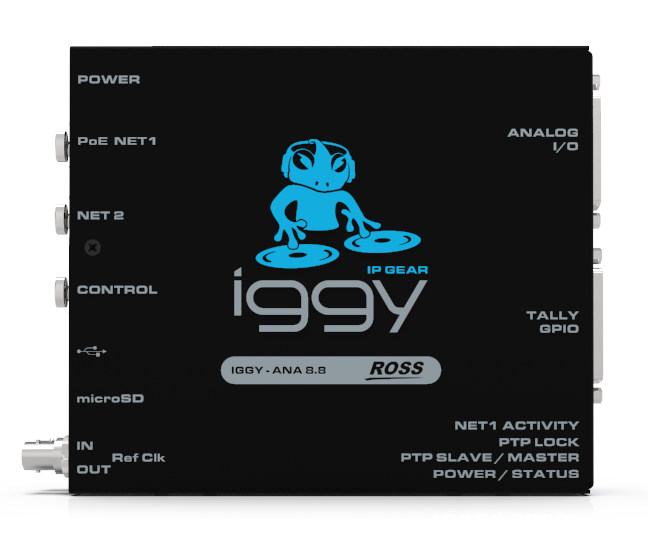

Iggy ANA8.8 Front

Iggy-ANA8.8 is a compact, flexible, ST2110 or AES 67, live audio-over-IP to/from Analog Audio bridge. Iggy-ANA8.8’s convenient form factor provides incredible flexibility to effortlessly deploy IP audio conversion wherever you need it – studio, truck, on-stage, or in a fly-pack.

In a nutshell

  • Compact and Feature-Rich Design deploys anywhere, standalone or in a rack, without compromising on channel density or features.
  • Broadly Interoperable audio-over-IP with proven AES67 & 2110 networking, together with versatile clocking ensures stable connections every time.
  • Robust and flexible design, IGGY effortlessly adapts to your environment with flexible mounting options and robust features including redundant power supplies, redundant Gigabit Ethernet connections and locking connectors for PoE (Neutrik) and DB25 (Tascam).
  • Open Control In addition to Ross DashBoard and a powerful WebUI, a plethora of discovery and control protocols are supported including NMOS, ANEMAN, EmBER+, RAVENNA, SAP and JSON API, to enable control and monitoring your way.
  • Network Insight Accessible via DashBoard or Web UI, IGGY offers comprehensive insight to support successful deployment and management of ST2110 and AES67 networks.

Don’t let bulky equipment and incompatible AES67 & 2110 implementations get in your way; get IGGY and get grooving!

  • 8 Analog Audio Channels in & out via AES59 (DB25 connectors with TASCAM pinout)
    • High-quality ADC & DAC
    • Line Level, Balanced Analog signaling
    • Selectable 0dBFS reference of +18dBU or +24dBU
  • Dual Redundant Audio GigE & GigE Control interfaces:
    • 8 audio receivers,8 audio senders
      • AES67-2018
      • ST2110-30 including conformance level: A, B, & C
      • ST2022-7 hitless protection switching, 1+1 redundancy per sender and receiver
    • Packet times: 125µs and 1ms
    • 48kHz and 44.1kHz sampling rates
    • Async Sample Rate Converter (ASRC)
    • 1-8 channels, configurable per audio stream
    • Audio encoding formats configurable per audio stream: L32, L24 and L16
  • Audio Gain
    • -75dB to + 25dB per channel audio gain
  • Synchronization
    • Reference input & output BNC connection
  • Open control
    • DISCOVERY AND REGISTRATION
      • NMOS IS-04
      • ANEMAN
      • RAVENNA
      • SAP
    • CONNECTION MANAGEMENT
      • NMOS IS-05
      • ANEMAN
      • EmBER+
      • JSON API
    • CONFIGURATION
      • DashBoard
      • JSON API
      • WebUI
  • Mechanical / Environmental
    • 1RU H x 5.75” W x 6.70”
    • Optional rack tray provides secure placement of three IGGYs, bricks and cable management.
    • Optional redundant power supply.
    • Studio silent operation.
    • Operating: 0ºC to +40ºC
  • 4x isolated out +8 x TTL GPIO controlled via RossTalk and TSL.
  • Fanless chassis for studio silent operation.
  • Power over Ethernet and redundant DC input power.
  • Flexible mounting options.
ADC
Spec IggyANA8.8, 0dBFS=+24dBu

Fs=48kHz

100 ohm Balanced Driver

 IggyANA8.8, 0dBFS=+18dBu

Fs=48kHz

100 ohm Balanced Driver
Input Impedance > 13k > 13k
Maximum Input Level +24dBu +18dBu
Input Level Adjustment No spec No spec
Frequency Response +0.01, -0.2dB

20Hz-20kHz at 0dBFS

 +0.01, -0.2dB

20Hz-20kHz at 0dBFS
Signal to Noise Ratio 102dB No Weight
107dB A-wt
104dB CCIR-2kRelative to +24dBu, 22kHz bandwidth		 96dB No Weight
101dB A-wt
98dB CCIR-2kRelative to +18dBu, 22kHz bandwidth
THD + N -90dB max (0.0032%) @ 1kHz

+24dBu input

 -86dB max (0.005%) @ 1kHz

+18dBu input
Amplitude Linearity < 0.4dB @ -90dBFS < 1.5dB @ -90dBFS
Crosstalk -95dB

20Hz-20kHz at +24dBu, channel to channel

 -95dB

20Hz-20kHz at +18dBu, channel to channel
Inter-channel Phase < 0.3°

20Hz-20kHz at +24dBu

 < 0.3°

20Hz-20kHz at +18dBu
DAC
Spec IggyANA8.8, 0dBFS=+24dBu

Fs=48kHz

200k Load

 IggyANA8.8, 0dBFS=+18dBu

Fs=48kHz

200k Load
Max Output Level 24dBu 18dBu
Frequency Response +0.01, -0.3dB

20Hz-20kHz at 0dBFS

 +0.01, -0.3dB

20Hz-20kHz at 0dBFS
THD -93dB (0.0022%) max @ 7.8kHz

20Hz-20kHz at 0dBFS

 -94dB (0.002%) max @ 12kHz

20Hz-20kHz at 0dBFS
Amplitude Linearity < 0.3dB @ -90dBFS < 0.8dB @ -90dBFS
Crosstalk -98dB

20Hz-20kHz at 0dBFS, channel to channel

 -98dB

20Hz-20kHz at 0dBFS, channel to channel
Dynamic Range 103dB No Weight
108dB A-wt
105dB CCIR-2kRelative to 0dBFS, 22kHz bandwidth		 97dB No Weight
102dB A-wt
99dB CCIR-2kRelative to 0dBFS, 22kHz bandwidth

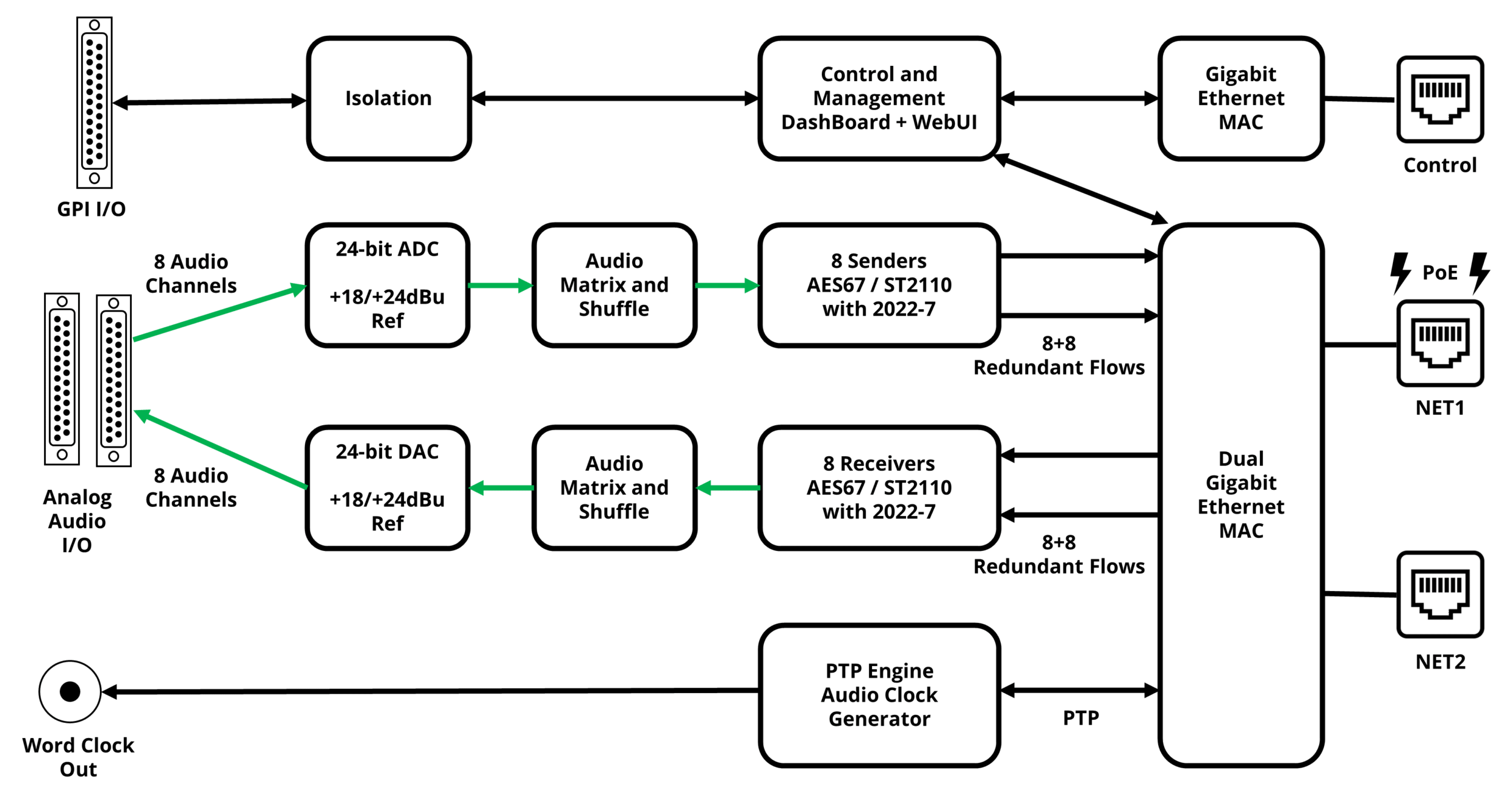

IGGY ANA8.8 Diagram





ORDERING CODE DESCRIPTION
IGGY-ANA8.8 IGGY Analog to AES67 Audio bridge
8 Analog channels in/out through DB25 connector
3 x GigE RJ-45, Ref clock out
GEAR-SHELF 1RU rackmount shelf for Newt and Iggy
GEAR-BRKT-EARS “Ear” brackets for Newt and Iggy
GEAR-VESA100 VESA 100mm bracket mount kit for Newt and Iggy

Gallery

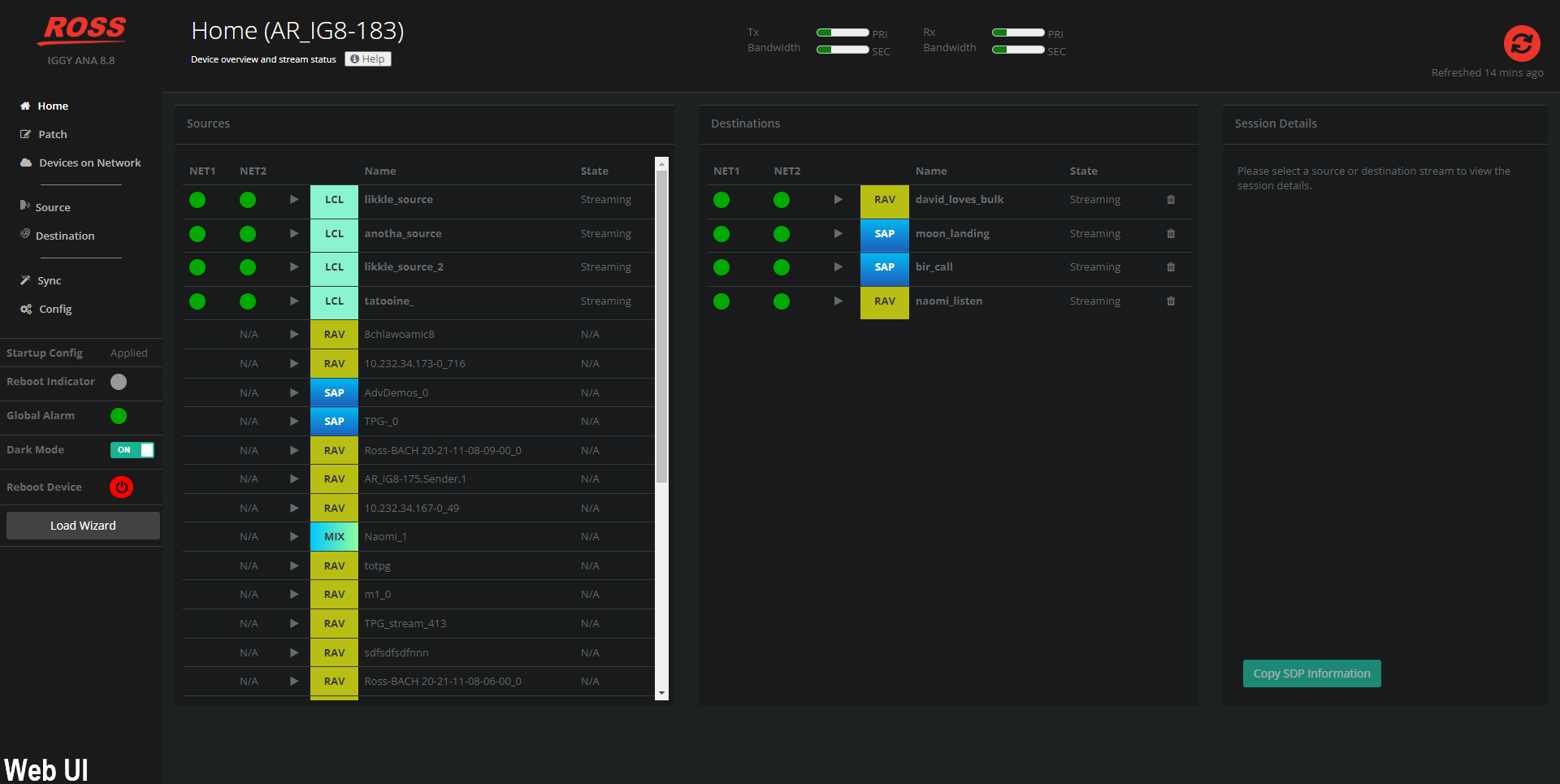

88 Homepage UI

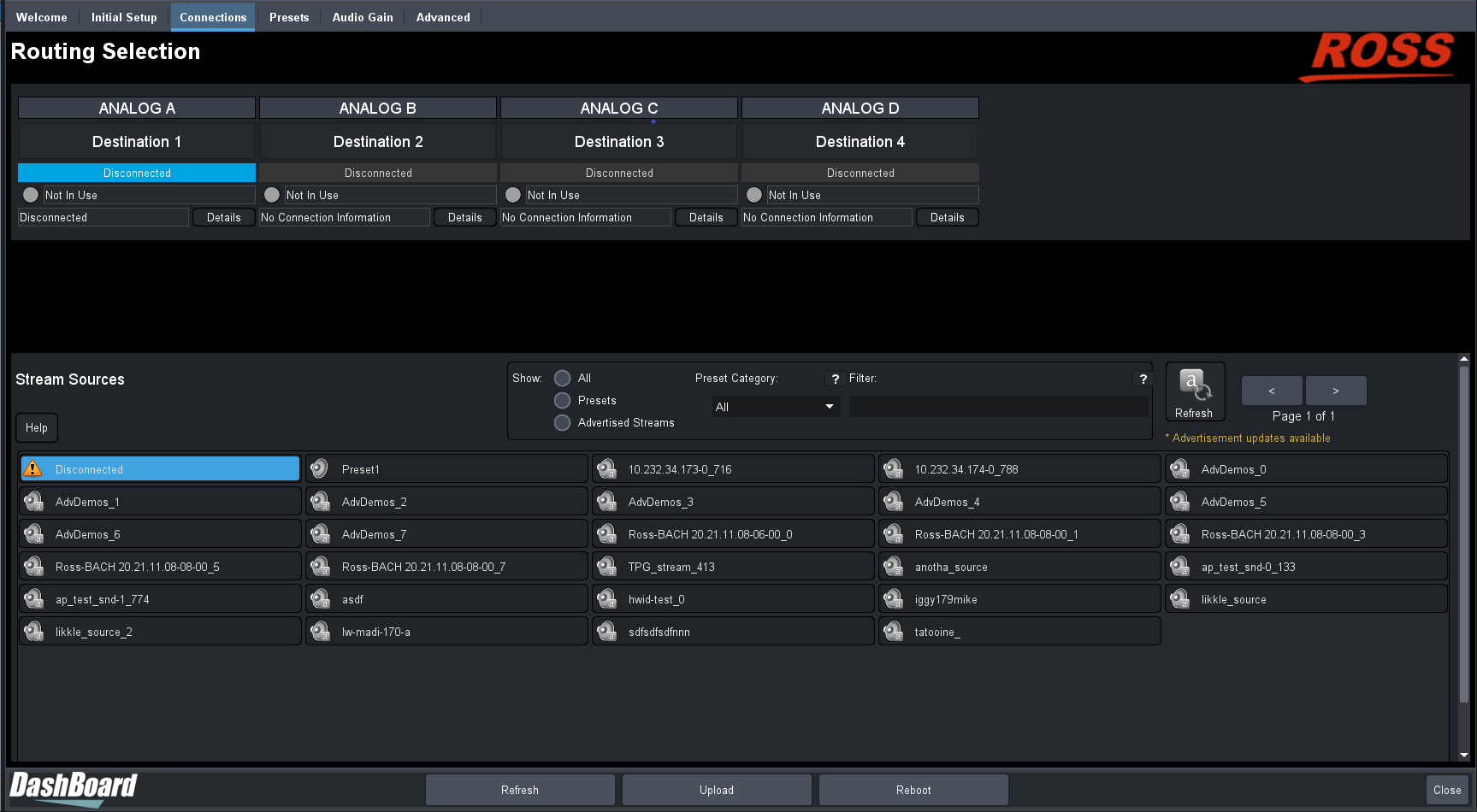

88 Dashboard Connections

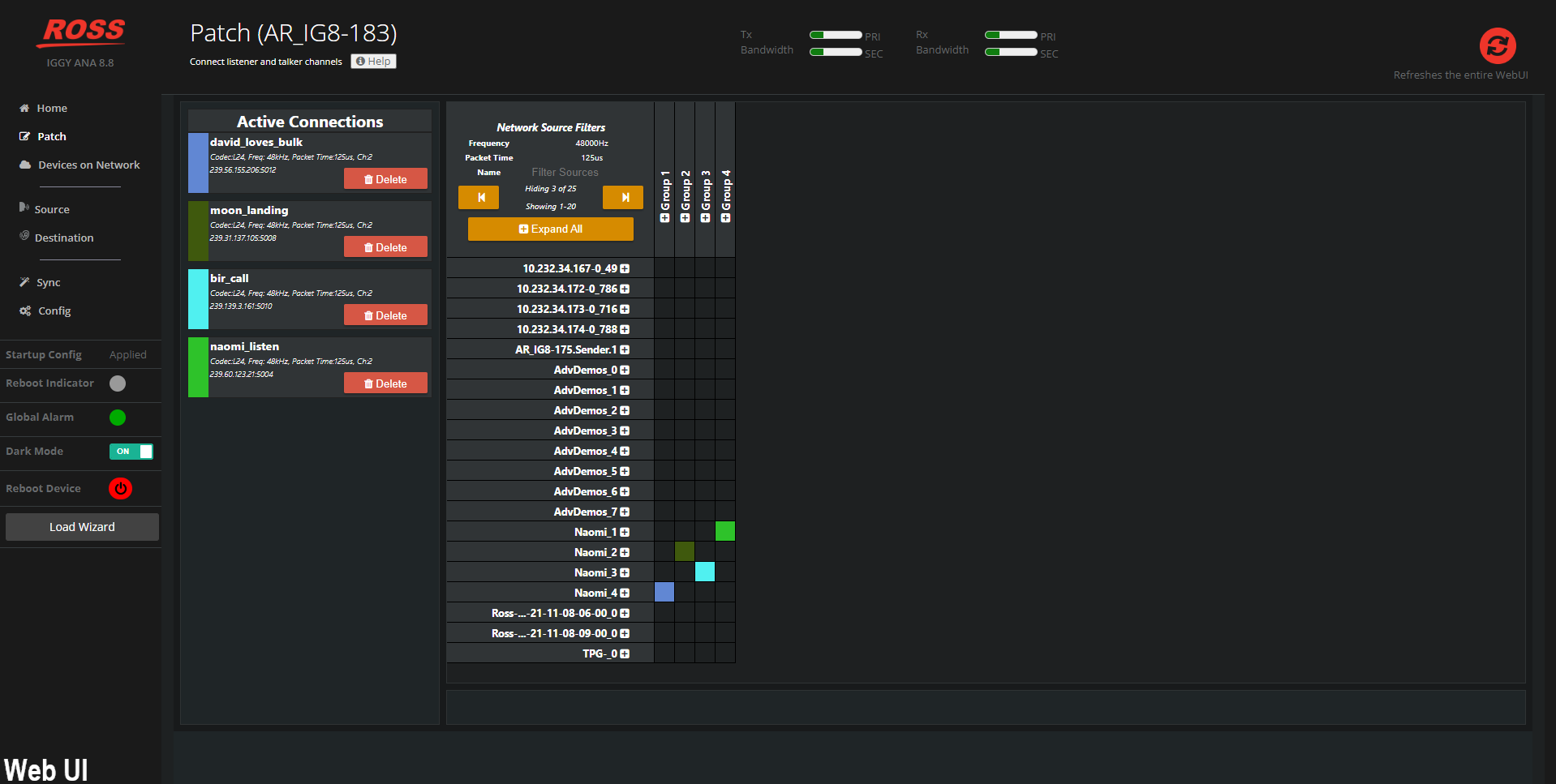

88 Patch Panel UI
88 Sync Page

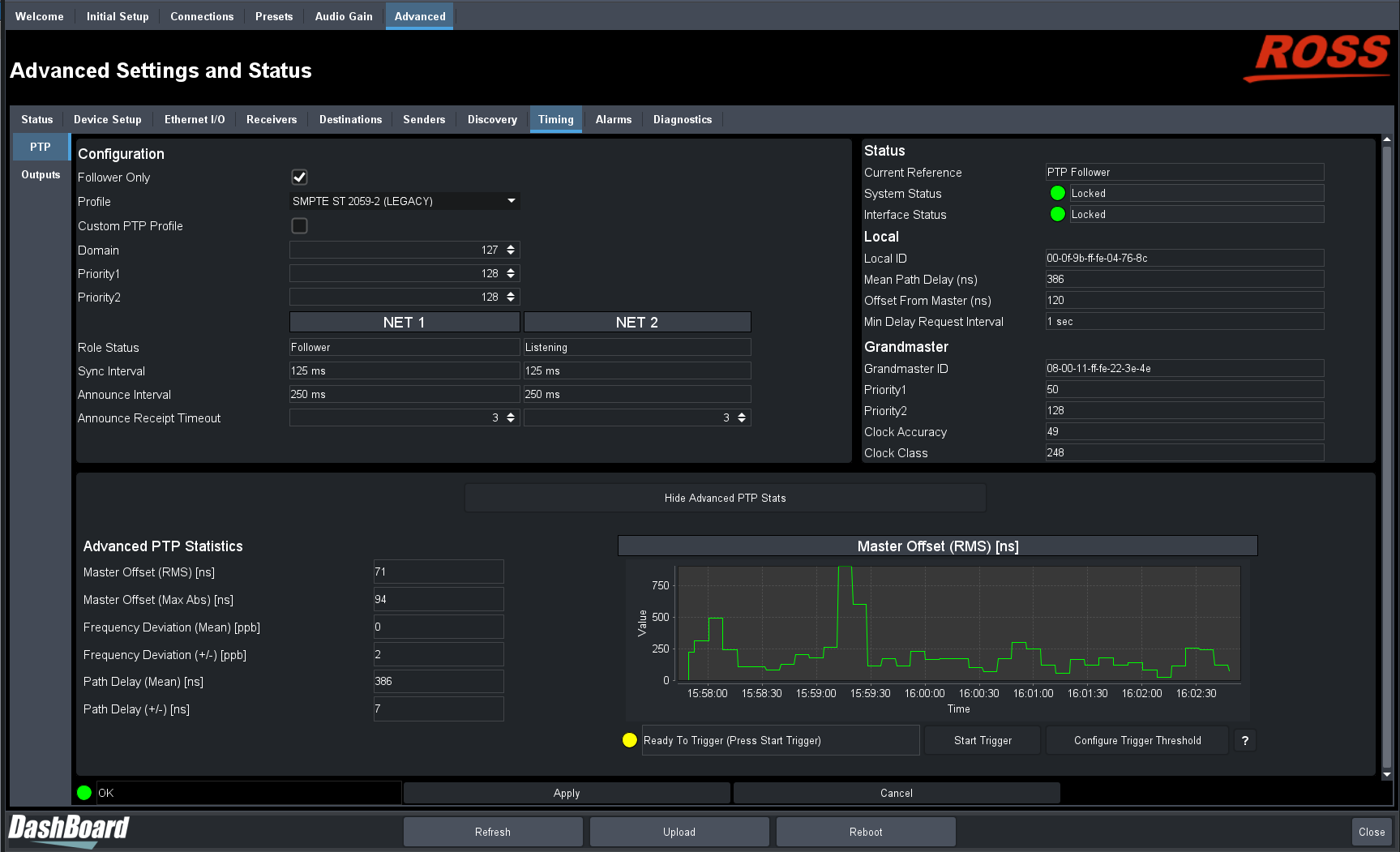

88 Dashboard Timing
