Carbonite Ultra
Standalone Production Switcher
Big production capability in a compact 1RU footprint
Get the Carbonite switcher experience in a compact 1RU, with production resources, flexible processing and familiar control for demanding HD/UHD productions.
Trusted by thousands of productions worldwide, Carbonite Ultra brings the proven workflows and production capabilities of the Carbonite platform to a compact, cost-effective system.
Handle more of your production in one system

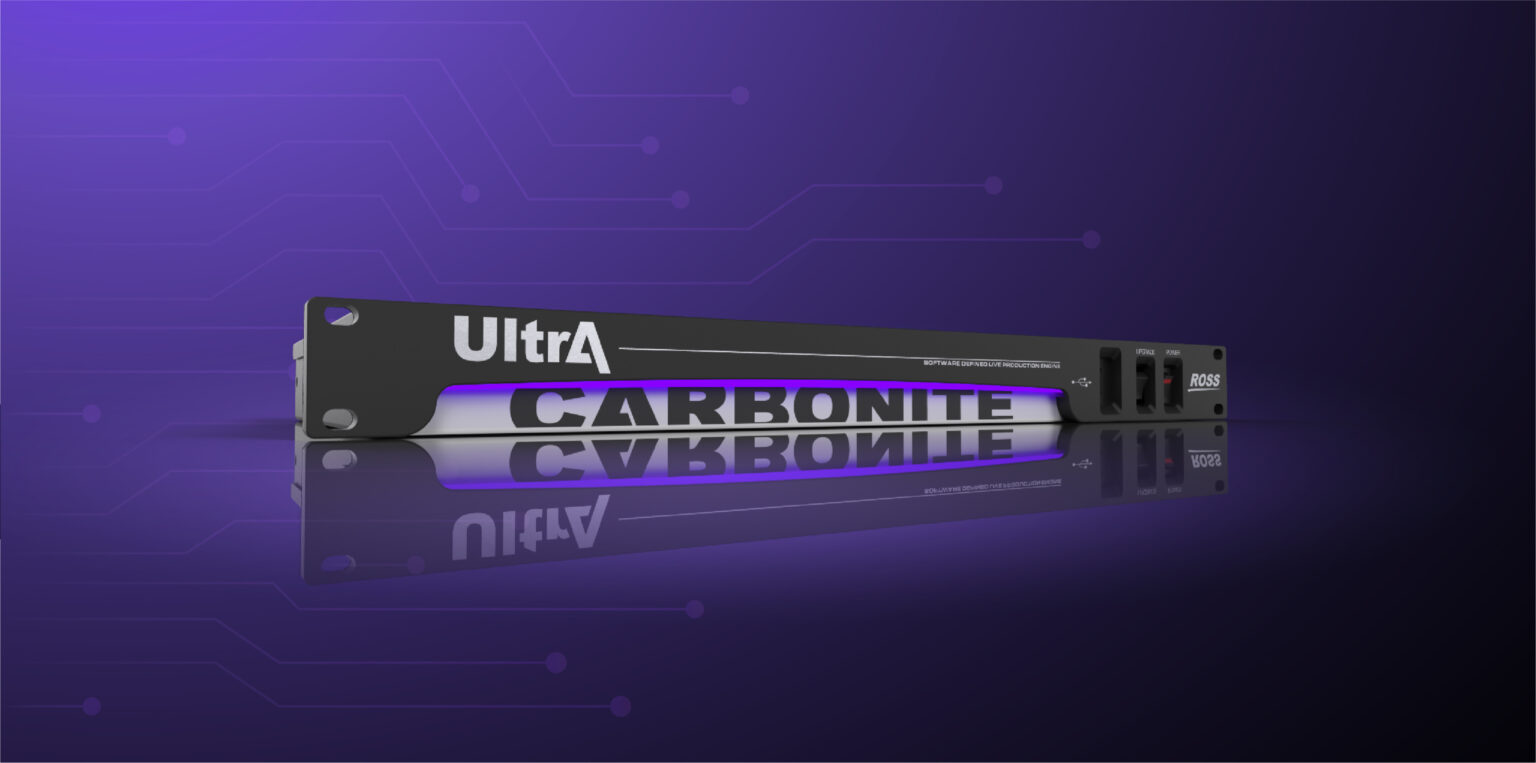

Combine powerful switching and compositing with built-in media, audio, monitoring and production tools. Carbonite Ultra gives everything you need to build and run sophisticated productions from one compact system.
Work seamlessly across video formats
Bring in sources across different resolutions and frame rates, then use built-in conversion and processing to match your production standard, output destinations and even non-standard display formats.
Give operators the control they know
Choose TouchDrive, DashBoard or ViewControl to suit your production and operator, with familiar Carbonite workflows proven across nearly 14,000 systems shipped worldwide.
Built for demanding live production
Everything you need to produce
Carbonite Ultra brings switching, compositing, media, monitoring and signal processing together in one compact platform. Choose the capabilities and control options that fit your production, then add software licences as your needs evolve.
Flexible ME & MiniME resources

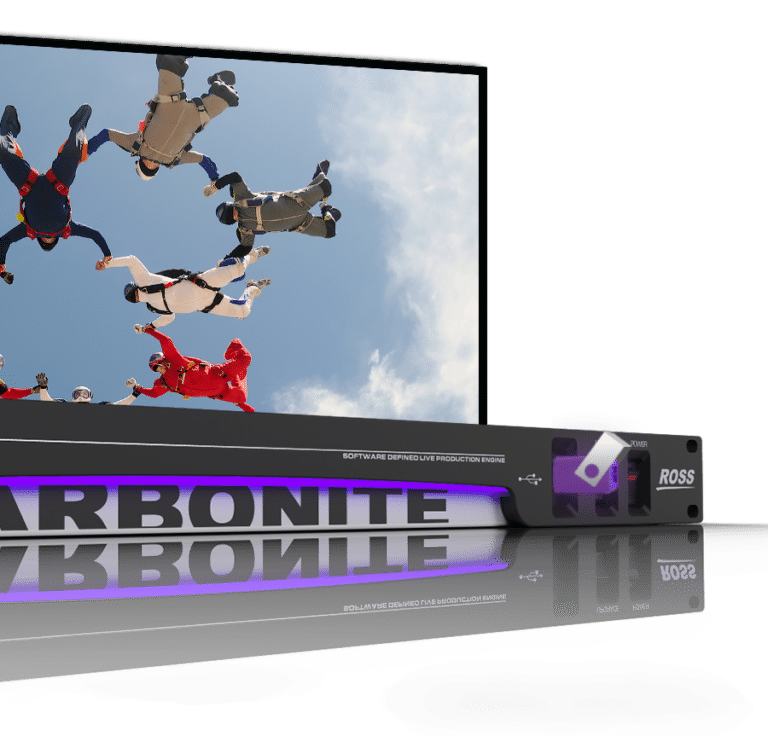

Handle any signal
Hone your look with flexible keying
Monitor your whole production

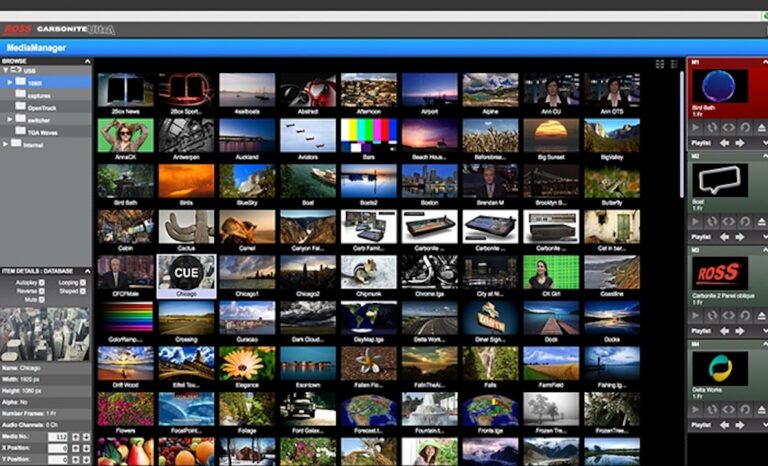

Play back media and graphics

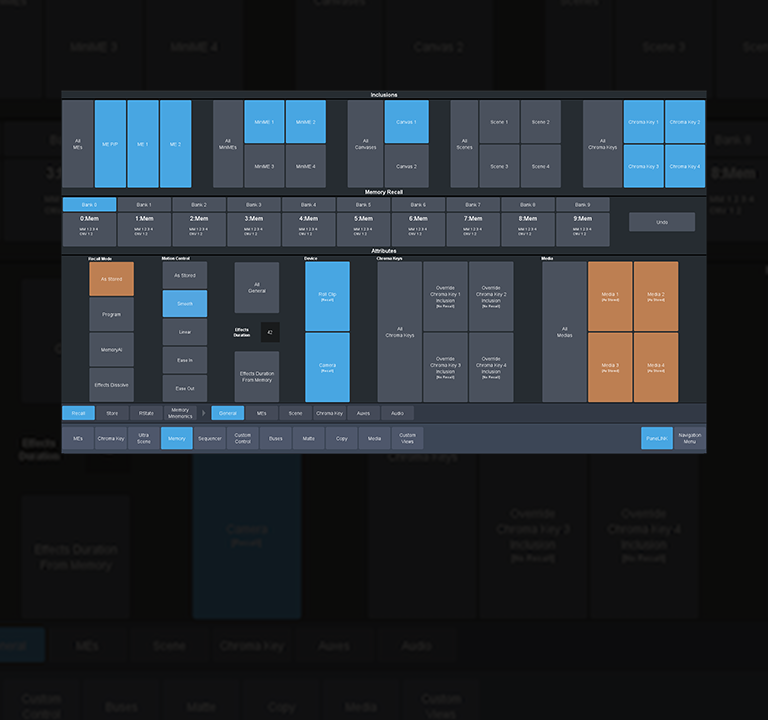

Make complex shows easier to run
Integrated audio processing
Add the RAVE audio mixer for audio processing, mixing and routing into the same system. Up to 48 configurable stereo faders, audio-follow-video, channel processing.
Flexible control options
Carbonite Ultra supports TouchDrive control panels, DashBoard virtual panels and ViewControl, giving familiar ways to work across different production environments.
Control connected production devices
Control compatible Ross and third-party devices directly from Carbonite Ultra. Device control lets operators manage video servers, graphics systems and robotic cameras.
Connect and expand your production capabilities

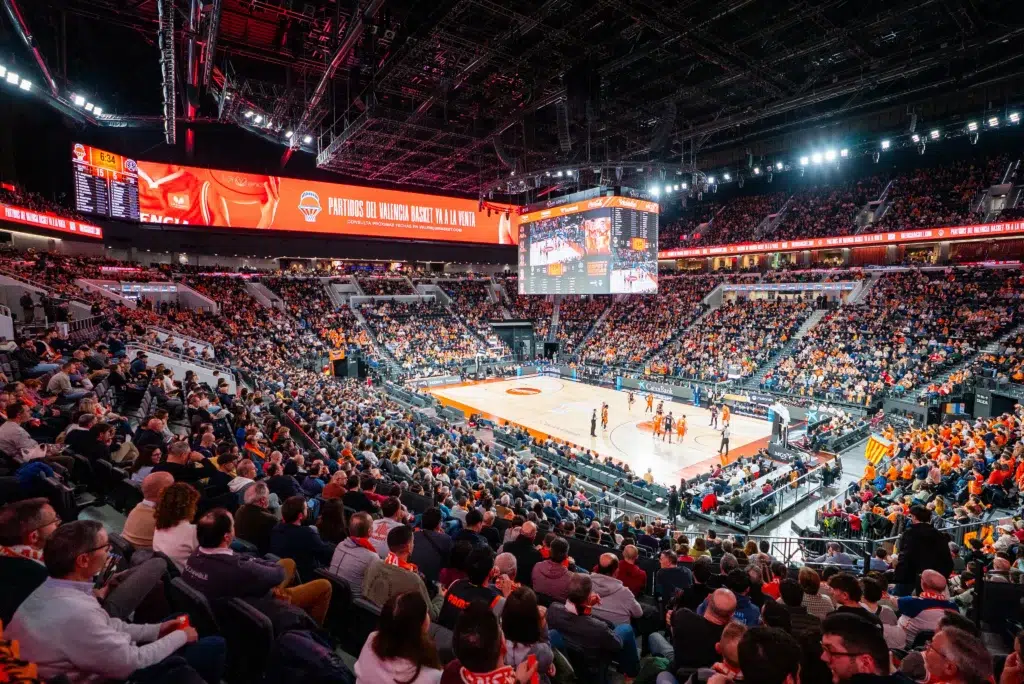

Carbonite Mosaic
Turn Carbonite Ultra into a powerful video-image processor for large-screen displays with dedicated Carbonite Mosaic mode. Currently supported on the Carbonite Ultra model, providing flexible control for complex displays.
Carbonite Ultra technical specifications
*Requires the applicable UHD ME licence.
| Specification (1 RU Chassis) | HD/SD | UHD |
|---|---|---|
Inputs (SDI) / Outputs (SDI) |
24 / 14 | 18 / 10 |
Full MEs / MiniMEs |
Up to 3 MEs / 4 MiniMEs | Up to 2 MEs* / 2 MiniMEs |
MultiViewers |
Up to 4 | Up to 2 |
Keyers per Full ME / MiniME |
Up to 6 / 2 | 4 / 2 |
UltraChrome Chroma Keyers |
Up to 4 | Up to 2 |
2D DVEs |
Up to 8 | Up to 4 |
MediaStores |
Up to 4 | Up to 2 |
Frame Synchronisers / Format Converters |
Up to 34 | Up to 11 |
Proc Amps / Colour Correctors |
Up to 34 | Up to 7 |
Physical specifications
| Dimensions | Value |
|---|---|
Chassis |
1RU |
Width |
482.1mm |
Height |
41.4mm |
Depth |
254mm |
Weight |
5.9kg |
Power |
100-240V AC |
Knowledge centre
Technical support
Expert help when you need it — dedicated to keeping your production running smoothly.
Product documentation
Comprehensive guides to help you get the most out of your Ross products.
Software downloads
Stay up to date with the newest features, enhancements, and software releases.
Training resources
Stay up to date with the newest features, enhancements, and software releases.
Ross Community
Ask questions, share knowledge, and connect with other Ross users.
Frequently asked questions
Carbonite Ultra is a mid-sized production switcher that combines switching, compositing, media playback, signal processing and monitoring in a compact 1RU platform. It supports both HD and UHD production.
In SD/HD, Carbonite Ultra supports up to 24 SDI inputs and 14 outputs, including dedicated MultiViewer outputs. In UHD, it supports 18 inputs and 10 outputs.
Carbonite Ultra supports up to three full MEs and four MiniMEs in HD. In UHD, it supports up to two full MEs and two MiniMEs.
Yes. Carbonite Ultra supports 12G UHD production, including 2160p frame rates from 23.98 through to 60 fps.
Yes. Built-in frame synchronisation, format conversion, proc amps and colour correction resources help you work with different source and output formats from the same system.
Carbonite Ultra supports up to four independent 16-window MultiViewers in SD/HD and up to two in UHD.
Carbonite Ultra supports TouchDrive control panels as well as DashBoard virtual panels and ViewControl. This gives production teams flexibility in how they operate the switcher.
Yes. The optional RAVE audio mixer provides audio processing, mixing and routing capabilities, including up to 48 configurable stereo faders, Audio Follow Video and up to 12 Aux mixes.
Yes. Carbonite Ultra supports device control for Ross and third-party equipment through DashBoard and supported protocols, including video servers, graphics systems and robotic cameras.
Yes. Carbonite Ultra is built on a software-defined platform, allowing additional capabilities to be enabled through software licences and new functionality to be added through software updates.
