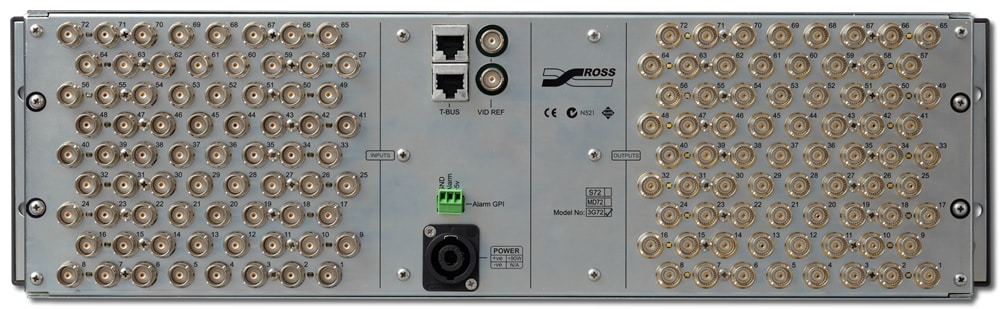

NK-3G72 | Scalable 72×72 3G / HD / SD SDI Router
NK-3G72
Scalable 72×72 3G / HD / SD SDI Router
| Inputs | NK-3G72 |
|---|---|
| Connection: | 75Ω BNC |
| Total # of Inputs: | up to 72 |
| Return Loss: | >15dB 5MHz to 1.5 GHz >10dB 1.5GHz to 3.0GHz |
| Cable EQ: | up to 100m Belden 1694 or equivalent |
| Outputs | NK-3G72 |
|---|---|
| Connection: | 75Ω BNC |
| Total # of Outputs: | up to 72 |
| Clocking: | automatic reclock at SMPTE 259M, 292M, 344M, 424M & DVB-ASI |
| Level: | 800mV p–p ±10% |
| Return Loss: | >15dB 5MHz to 1.5 GHz >10dB 1.5GHz to 3.0GHz |
| Performance | NK-3G72 |
|---|---|
| Jitter: | <0.2 UI additive |
| Data Rate: | 143Mb/s to 3Gb/s |
| Overshoot: | <10% |
| Rise Time: | automatic at SMPTE 259M, 259M, 292M, 344M, 424M & DVB-ASI |
| General | NK-3G72 |
|---|---|
| Partitioning: | up to 8 partitions with independent level assignment |
| Configuration: | basic via web browser, or comprehensive via DashBoard Control System via NK-IPS |
| Dimensions: | 3RU, depth 12.0cm |
| Power Consumption: | 60W |
| Power Supply: | +15 V DC |
|
|
NK-3G72 Router
NK-3G72 72×72 3G / HD / SD SDI Router
NK-3G72(32) 32×32 3G / HD / SD SDI Router
NK-3G72 Router Components
NK-3G72-FRM 72×72 3G / HD / SD SDI Router Frame
NK-I3G72 8 Channel 3G / HD / SD Input Card
NK-O3G72 8 Channel 3G / HD / SD Output Card
NK-P3 Spare, Non-Redundant 100W, +15V Power Supply
NK-3G72 Rack Mount Redundant Power
NK-RP1/P Rack Mount, 1RU, 100W, +15V Redundant Power Supply
NK-S12/P NK-RP1/P Power Supply Cable for NK-3G72
