WDA-8409
Word Clock Distribution Amplifier

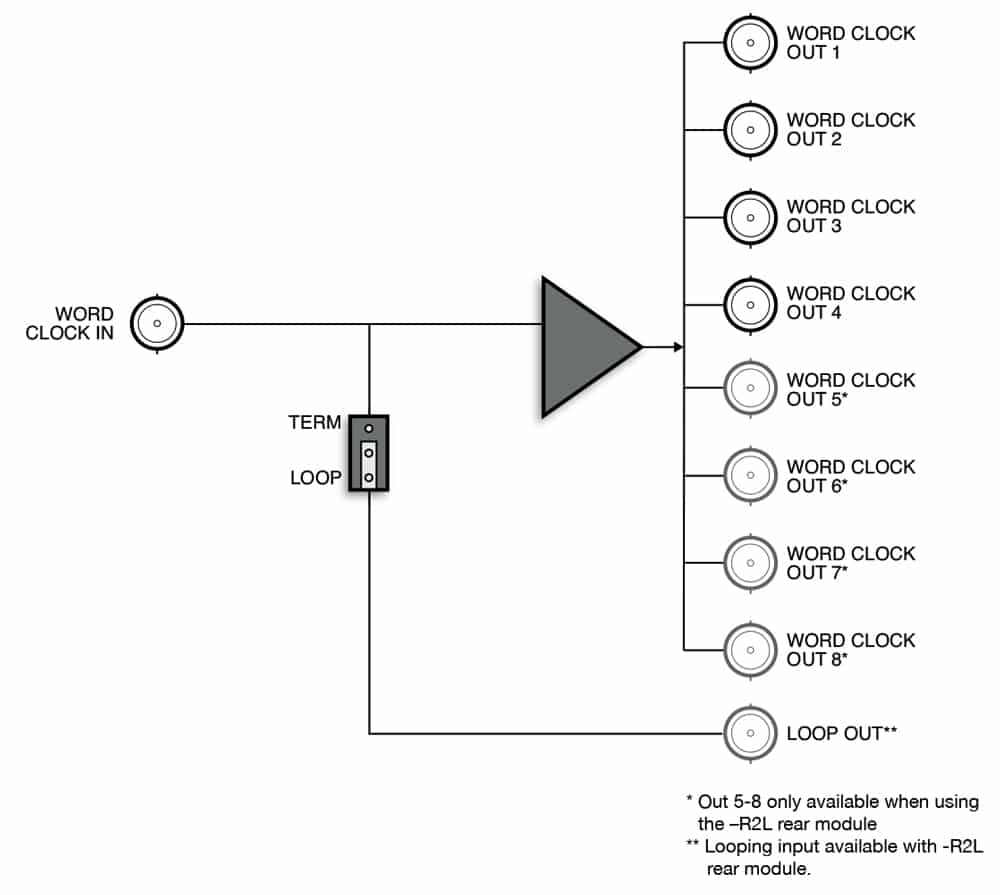

The WDA-8409 is a distribution amplifier designed specifically for Word Clock distribution. It features 8 75Ω word clock outputs with full 5Vp-p swing. The card supports a looping input, with an optional 75Ω termination, and supports remote monitoring through DashBoard.
The WDA-8409 is a distribution amplifier designed specifically for Word Clock distribution. It features 8 75Ω word clock outputs with full 5Vp-p swing. The card supports a looping input, with an optional 75Ω termination, and supports remote monitoring through DashBoard.
- Word Clock Input
- Selectable terminating or high-impedance input
- Looping input (with -R2L rear module)
- 2 rear module configurations available:
- 1×8 full rear module with looping input. 10 cards per frame
- 1×4 split rear module. Split rear module accommodates 2 cards, 20 cards per frame
- Sampling Frequency: up to 192kHz
| Word Clock Input | |
|---|---|
| Number of inputs | 1 |
| Input Impedance | Hi-Z or 75Ω, user selectable |
| Sensitivity | 200mV |
| Sampling Frequency | Up to 192kHz |
| Connector Type | BNC |
| Looping Output | |
| Number of Looping Outputs | 1 (R2L-8409 rear module)
0 (R2S-8409 rear module) |
| Connector Type | BNC |
| Word Clock Outputs | |
| Number of Outputs | 8 (R2L-8409 rear module)
4 (R2S-8409 rear module) |
| Impedance | 75Ω |
| Output Level | 10Vp-p square wave (unterminated)
5Vp-p square wave (terminated into 75Ω) |
| Connector Type | BNC |
| Physical & Power | |
| Power Consumption | <2W |
| Environmental | 0-40⁰C operatational
<95% RH, non-condensing |
| Physical | Compatible with DFR-8321, OG3-FR and OGX-FR frames |
| ORDERING CODE | DESCRIPTION |
| WDA-8409-R2L | 1×8 Word Clock Distribution Amplifier w/looping input |
| WDA-8409-R2S | 1×4 Word Clock Distribution Amplifier w/split rear module
Rear module accommodates second WDA-8409 card (sold separately) |
| WDA-8409 | Word Clock Distribution Amplifier – card only
Requires rear module (sold separately) |
