Audio Monitoring Bridges


3G / HD / SD SDI embedded audio monitoring bridge

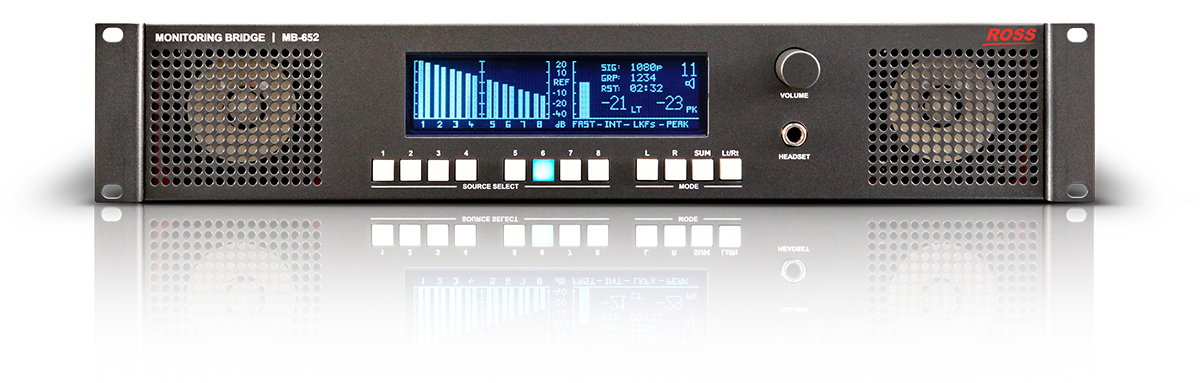

The MB-652 monitoring bridge is a compact, 2RU audio monitoring bridge for embedded audio. Designed to meet the demands of broad- cast audio monitoring requirements, the MB-652 is capable of de-em- bedding up to 16 channels of audio from an incoming SDI signal. The audio monitoring bridge provides both visual and aural monitoring with built-in front panel display and speakers.

16 digital VU/PPM meters monitor all 16 channels of embedded audio, while an intuitive control surface allows for easy channel source and mode selection for the built-in speakers. A meter and numerical display provides loudness measurements according to ITU1770/1771 LKFS. Additional information such as true peak, input signal type and Audio Group Presence are also displayed on screen.

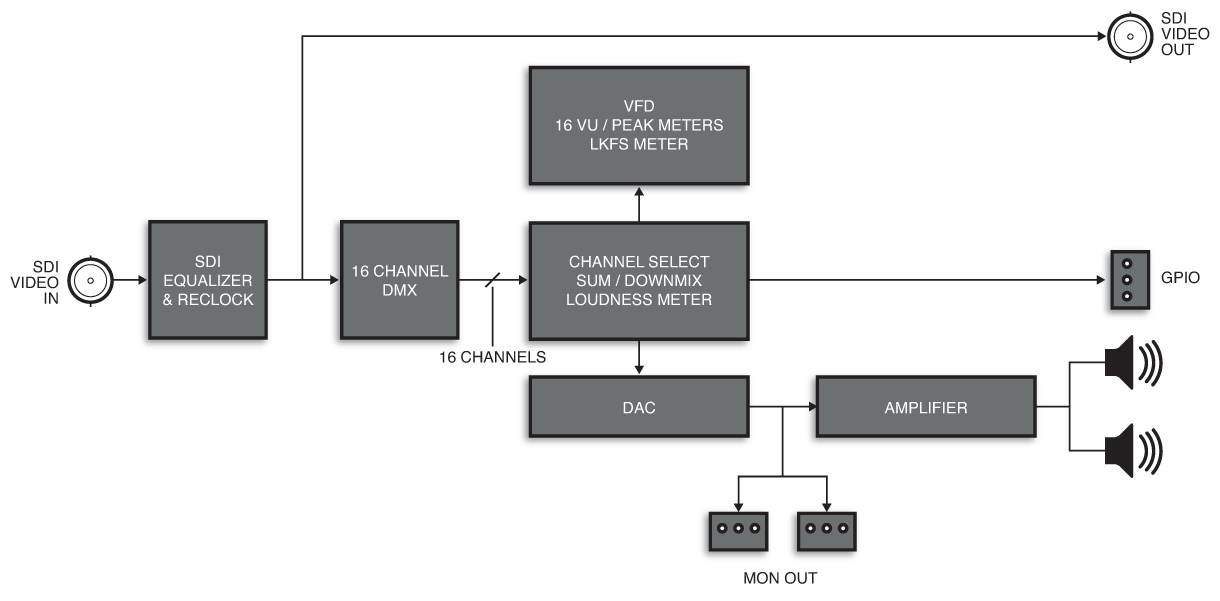

High quality, full-range speakers, along with a high performance class D stereo ampli er, o er excellent sound quality suitable for any monitoring environment. The front panel also includes a volume control and a 1/4 inch headphone jack. The rear of the MB-652 provides a single SDI in- put with reclocked SDI output and 2 channels of analog audio outputs.

  • 3G / HD / SD SDI input with integrated 16 channel de-embedder
  • Monitoring of up to 16 channels of embedded audio
  • Reclocked SDI output
  • High Power Class D Stereo Audio Ampli er
  • Onboard 5.1 Surround sound Lt/Rt downmixer
  • True Peak VU or LKFS Loudness level display, with full 16 channel monitoring display
  • Redundant Power Supply Option
  • Headphone & Analog Audio Outputs
  • Easy audio source and mode selection
  • Ethernet connection to DashBoard Control System for monitoring, control and software upgrades
  • 1-year transferable warranty

Monitoring Bridge
 2RU Audio Monitoring Bridge
PS-MB-650 Redundant or Spare Power Supply for MB-65x Series
